Furrion 50 Watt Rigid Solar Panel Battery Maintainer Kit Specification

Furrion 50 Watt Rigid Solar Panel Battery Maintainer Kit Specification

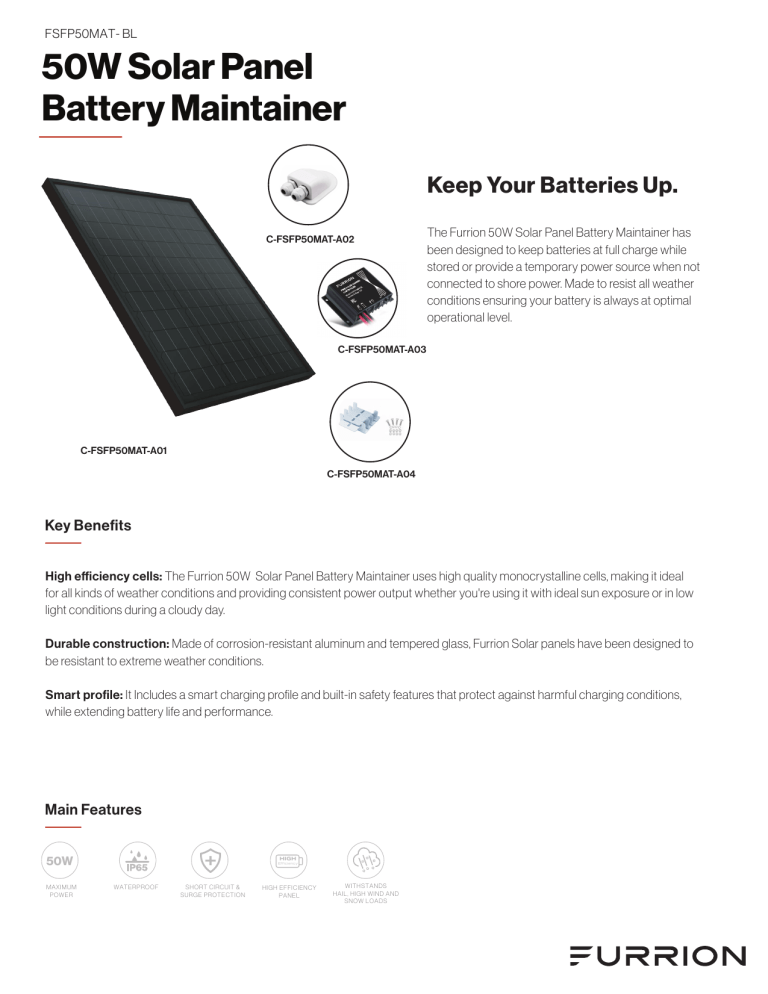

FSFP50MAT- BL
50W Solar Panel
Battery Maintainer
Keep Your Batteries Up.
C-FSFP50MAT-A02
The Furrion 50W Solar Panel Battery Maintainer has
been designed to keep batteries at full charge while
stored or provide a temporary power source when not
connected to shore power. Made to resist all weather
conditions ensuring your battery is always at optimal
operational level.
C-FSFP50MAT-A03
C-FSFP50MAT-A01
C-FSFP50MAT-A04
Key Benefits
High efficiency cells: The Furrion 50W Solar Panel Battery Maintainer uses high quality monocrystalline cells, making it ideal
for all kinds of weather conditions and providing consistent power output whether you're using it with ideal sun exposure or in low
light conditions during a cloudy day.
Durable construction: Made of corrosion-resistant aluminum and tempered glass, Furrion Solar panels have been designed to
be resistant to extreme weather conditions.
Smart profile: It Includes a smart charging profile and built-in safety features that protect against harmful charging conditions,
while extending battery life and performance.
Main Features
50W
MAXIMUM
POWER
HIGH
Efficiency
WATERPROOF
SHORT CIRCUIT &
SURGE PROTECTION
HIGH EFFICIENCY
PANEL
WITHSTANDS
HAIL, HIGH WIND AND
SNOW LOADS
211⁄4” (540mm)
353⁄8” (900mm)
263⁄8” (670mm)
11⁄8” (30mm)
Specifications (PWM Controller)
Specifications (Solar Panel)
Maximum power (Pmax)
Max Power Voltage (Vmp)
50W
Max Power Current (Imp)
Open Circuit Voltage (Voc)
Short Circuit Current
2.7A
Cell Type
Monocrystalline
Cell Efficiency
Maximum System Voltage
Power tolerance
Series Fuse Rating
Temperature Co-efficient (Power)
Temperature Co-efficient (Voltage)
Temperature Co-efficient (Current)
NOCT (Air 20°C; Sun 0.8kW/m² wind 1m/s)
Cable
Connector
Frame
Operation Temperature
IP rating
18%
18.5V
22.6V
2.9A
36V DC
± 5%
5A
-0.43%/ °C
-0.32%/°C
+0.02%/ °C
45±3°C
2.5mm2, PV1-F, 35⅜”(900mm)
IP rating
Anodized Aluminum (Black)
Dimension (per bracket) (WxHxD)
-40°F to 185°F (-40°C to 85°C)
IP65
ABS with anti-UV agent
5⅛” x 1¾” x 3⅝” (130 x 43 x 93mm)
IP65
Individual Components Part Number
Rigid Solar Panel for 50W Battery Maintainer
C-FSFP50MAT-A01
Rooftop box for 50W Battery Maintainer
C-FSFP50MAT-A02
PWM controller for 50W Battery Maintainer
C-FSFP50MAT-A03
Z-mounting bracket kit for 50W Battery Maintainer
C-FSFP50MAT-A04
10A
17V
13.8V
13.2V
12.0V
11.0V
14AWG, 23⅝” (600mm)
14AWG, 23⅝” (600mm)
Stranded Lead
3¼” x 13⁄16” x 25⁄16”
(82 x 20 x 58 mm)
IP65
Specifications (Z-Mounting Bracket Kit)
Stranded Lead
Specifications (Rooftop Box)
Material
Dimension (W x H x D)
IP rating
Charging current
Overvoltage Protection
Floating Charging Voltage
Boost Charging Recovery Voltage
Undervoltage
Over-Discharge Voltage
Cable for Solar Panel Connection
Cable for Battery Connection
Connector
Dimension (W x H x D)
37⁄16” x 1⅝”x 3⅞”
(88 x 42 x 100mm)
Z-mount bracket kit includes:
∙ Aluminum Z-Bracket (x4)
∙ M6 SS304 Hex Head Bolt x 20mm (x4)
∙ M6 SS304 Locknut (x4)
∙ M6 SS304 Split Lock Washer (x4)
∙ M6 SS304 Flat Washer (x8)
* This kit does NOT include screws to attach the Z-Mounting Brackets to roof
Packaging Information (All components in one box)
Packaging Type
Quantity Per Box (pcs)
Individual Packaging Dimensions (WxHxD)
Individual Packaging Gross Weight (lbs/kg)
Individual Packaging Net Weight (lbs/kg)
Brown Carton Box
1
31⅞” x 2¼” x 22½”
(810 x 57 x 570mm)
14.33/6.5
11.9/5.4
MS-FSFP50MAT-BL-V2.1
Furrion® and the Furrion logo are trademarks licensed for use by Furrion Ltd. and registered in the U.S. and other countries. © 2007-2019 Furrion Ltd.
PWM SOLAR CHARGE
CONTROLLER GEN 2.0
Model: C-FSFP50MAT-A03
System Voltage: 12V
Mode
Key
Fuse
+
-
12V
Battery
Rooftop box
Rigid Solar Panel
Wiring Diagram
50W Rigid Solar Panel
Rooftop Box
16AWG Cable
(Inside RV)
PWM Controller
(Inside RV)
Fuse
12V
Battery
Installation Drawing
MS-FSFP50MAT-BL-V2.1
Furrion® and the Furrion logo are trademarks licensed for use by Furrion Ltd. and registered in the U.S. and other countries. © 2007-2019 Furrion Ltd.
Rooftop
Connection Box
50W Rigid
Solar Panel
M6 Nut
M6 Flat Washer
-
+
M6 Flat Washer
M6 Split Lock
Washer
M6 Hex Bolt
MS-FSFP50MAT-BL-V2.1
Furrion® and the Furrion logo are trademarks licensed for use by Furrion Ltd. and registered in the U.S. and other countries. © 2007-2019 Furrion Ltd.
