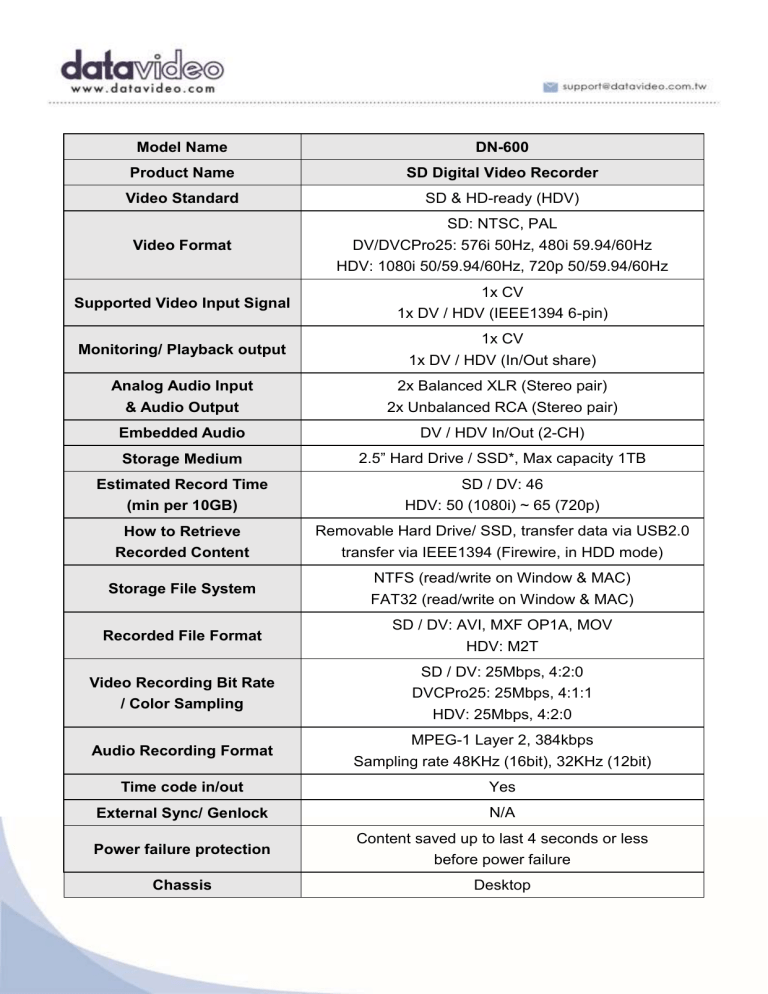

DataVideo DN-600 Specification

DataVideo DN-600 Specification
Model Name
DN-600
Product Name
SD Digital Video Recorder
Video Standard
SD & HD-ready (HDV)
Video Format
SD: NTSC, PAL
DV/DVCPro25: 576i 50Hz, 480i 59.94/60Hz
HDV: 1080i 50/59.94/60Hz, 720p 50/59.94/60Hz
Supported Video Input Signal
1x CV
1x DV / HDV (IEEE1394 6-pin)
Monitoring/ Playback output
1x CV
1x DV / HDV (In/Out share)
Analog Audio Input
& Audio Output
2x Balanced XLR (Stereo pair)
2x Unbalanced RCA (Stereo pair)
Embedded Audio
DV / HDV In/Out (2-CH)
Storage Medium
2.5” Hard Drive / SSD*, Max capacity 1TB
Estimated Record Time
(min per 10GB)
SD / DV: 46
HDV: 50 (1080i) ~ 65 (720p)
How to Retrieve
Recorded Content
Removable Hard Drive/ SSD, transfer data via USB2.0
transfer via IEEE1394 (Firewire, in HDD mode)
Storage File System
NTFS (read/write on Window & MAC)
FAT32 (read/write on Window & MAC)
Recorded File Format
SD / DV: AVI, MXF OP1A, MOV
HDV: M2T
Video Recording Bit Rate
/ Color Sampling
SD / DV: 25Mbps, 4:2:0
DVCPro25: 25Mbps, 4:1:1
HDV: 25Mbps, 4:2:0
Audio Recording Format
MPEG-1 Layer 2, 384kbps
Sampling rate 48KHz (16bit), 32KHz (12bit)
Time code in/out
Yes
External Sync/ Genlock
N/A
Power failure protection
Content saved up to last 4 seconds or less
before power failure
Chassis
Desktop
