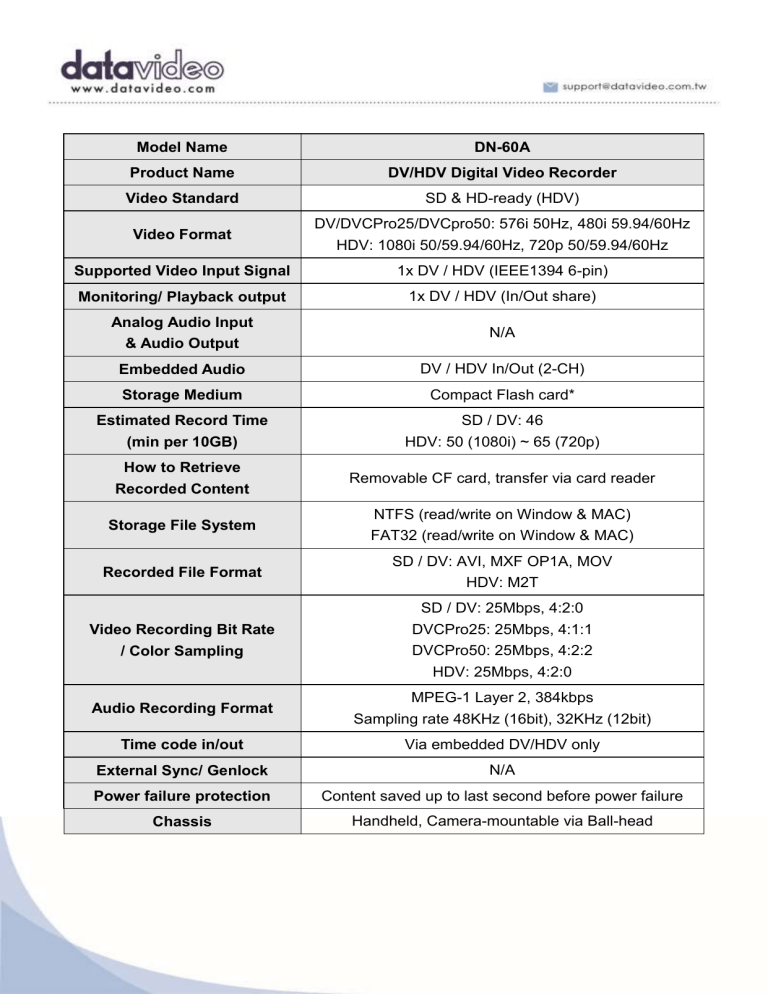

DataVideo DN-60A Specification

DataVideo DN-60A Specification
Model Name
DN-60A
Product Name
DV/HDV Digital Video Recorder
Video Standard
SD & HD-ready (HDV)
Video Format
DV/DVCPro25/DVCpro50: 576i 50Hz, 480i 59.94/60Hz
HDV: 1080i 50/59.94/60Hz, 720p 50/59.94/60Hz
Supported Video Input Signal
1x DV / HDV (IEEE1394 6-pin)
Monitoring/ Playback output
1x DV / HDV (In/Out share)
Analog Audio Input
& Audio Output
N/A
Embedded Audio
DV / HDV In/Out (2-CH)
Storage Medium
Compact Flash card*
Estimated Record Time
(min per 10GB)
SD / DV: 46
HDV: 50 (1080i) ~ 65 (720p)
How to Retrieve
Recorded Content
Removable CF card, transfer via card reader
Storage File System
NTFS (read/write on Window & MAC)
FAT32 (read/write on Window & MAC)
Recorded File Format
SD / DV: AVI, MXF OP1A, MOV
HDV: M2T
Video Recording Bit Rate
/ Color Sampling
SD / DV: 25Mbps, 4:2:0
DVCPro25: 25Mbps, 4:1:1
DVCPro50: 25Mbps, 4:2:2
HDV: 25Mbps, 4:2:0
Audio Recording Format
MPEG-1 Layer 2, 384kbps
Sampling rate 48KHz (16bit), 32KHz (12bit)
Time code in/out
Via embedded DV/HDV only
External Sync/ Genlock
N/A
Power failure protection
Content saved up to last second before power failure
Chassis
Handheld, Camera-mountable via Ball-head
