Bulletin No. PMKG1-A
Drawing No. LP0094
Released 03/15
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net

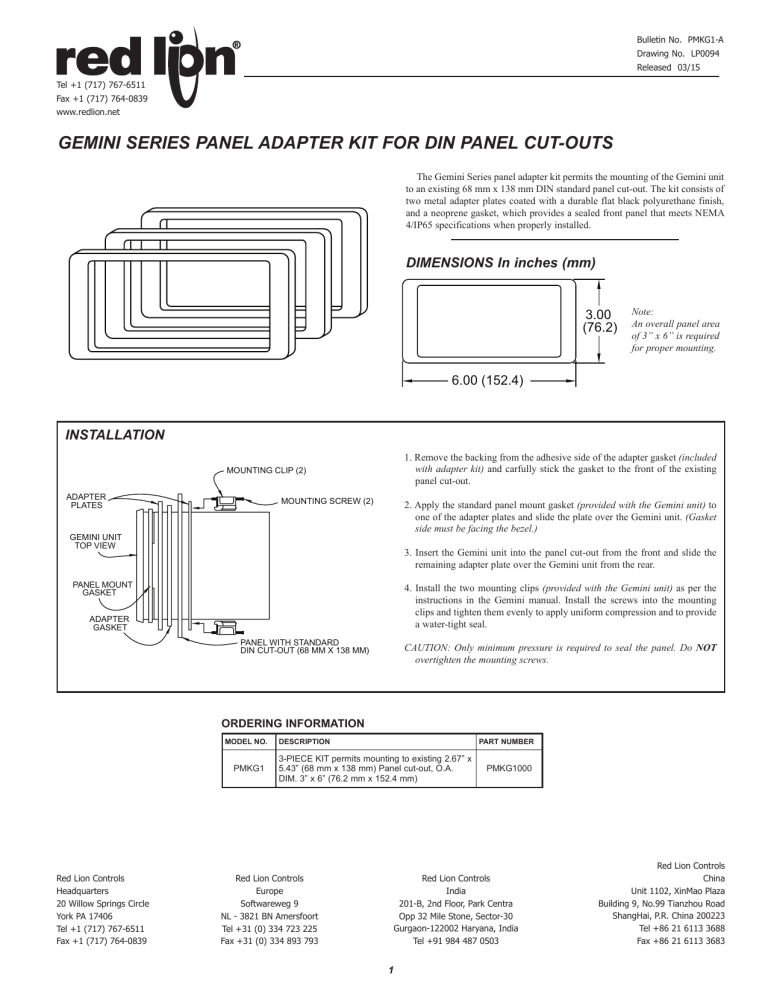

GEMINI SERIES PANEL ADAPTER KIT FOR DIN PANEL CUT-OUTS
The Gemini Series panel adapter kit permits the mounting of the Gemini unit
to an existing 68 mm x 138 mm DIN standard panel cut-out. The kit consists of
two metal adapter plates coated with a durable flat black polyurethane finish,
and a neoprene gasket, which provides a sealed front panel that meets NEMA
4/IP65 specifications when properly installed.
DIMENSIONS In inches (mm)
3.00
(76.2)
Note:
An overall panel area
of 3” x 6” is required
for proper mounting.
6.00 (152.4)
INSTALLATION
1. Remove the backing from the adhesive side of the adapter gasket (included
with adapter kit) and carfully stick the gasket to the front of the existing
panel cut-out.
MOUNTING CLIP (2)
ADAPTER
PLATES
MOUNTING SCREW (2)
2. Apply the standard panel mount gasket (provided with the Gemini unit) to
one of the adapter plates and slide the plate over the Gemini unit. (Gasket
side must be facing the bezel.)
GEMINI UNIT
TOP VIEW
3. Insert the Gemini unit into the panel cut-out from the front and slide the
remaining adapter plate over the Gemini unit from the rear.
PANEL MOUNT
GASKET
4. Install the two mounting clips (provided with the Gemini unit) as per the
instructions in the Gemini manual. Install the screws into the mounting
clips and tighten them evenly to apply uniform compression and to provide
a water-tight seal.
ADAPTER
GASKET
PANEL WITH STANDARD
DIN CUT-OUT (68 MM X 138 MM)
CAUTION: Only minimum pressure is required to seal the panel. Do NOT
overtighten the mounting screws.
ORDERING INFORMATION
MODEL NO.
PMKG1
Red Lion Controls
Headquarters
20 Willow Springs Circle
York PA 17406
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
DESCRIPTION
PART NUMBER
3-PIECE KIT permits mounting to existing 2.67” x
5.43” (68 mm x 138 mm) Panel cut-out, O.A.
DIM. 3” x 6” (76.2 mm x 152.4 mm)
Red Lion Controls
Europe
Softwareweg 9
NL - 3821 BN Amersfoort
Tel +31 (0) 334 723 225
Fax +31 (0) 334 893 793
PMKG1000
Red Lion Controls
India
201-B, 2nd Floor, Park Centra
Opp 32 Mile Stone, Sector-30
Gurgaon-122002 Haryana, India
Tel +91 984 487 0503
1
Red Lion Controls
China
Unit 1102, XinMao Plaza
Building 9, No.99 Tianzhou Road
ShangHai, P.R. China 200223
Tel +86 21 6113 3688
Fax +86 21 6113 3683
