Bulletin No. PMK5-D
Drawing No. LP0280
Revised 3/08
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net

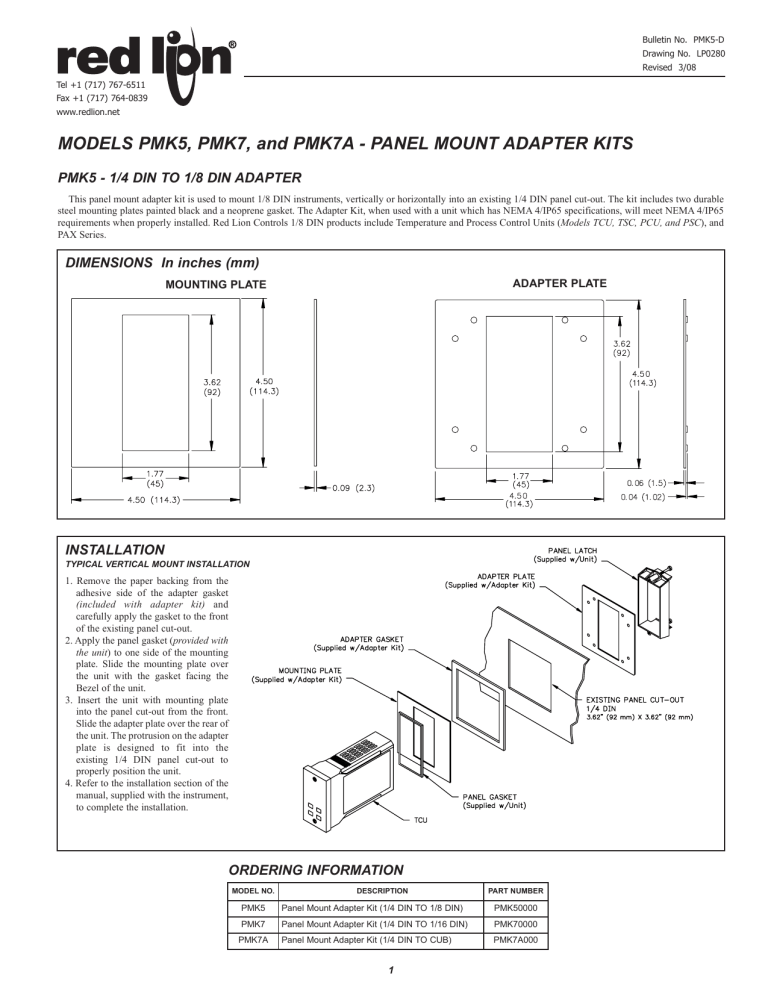

MODELS PMK5, PMK7, and PMK7A - PANEL MOUNT ADAPTER KITS
PMK5 - 1/4 DIN TO 1/8 DIN ADAPTER
This panel mount adapter kit is used to mount 1/8 DIN instruments, vertically or horizontally into an existing 1/4 DIN panel cut-out. The kit includes two durable
steel mounting plates painted black and a neoprene gasket. The Adapter Kit, when used with a unit which has NEMA 4/IP65 specifications, will meet NEMA 4/IP65
requirements when properly installed. Red Lion Controls 1/8 DIN products include Temperature and Process Control Units (Models TCU, TSC, PCU, and PSC), and
PAX Series.
DIMENSIONS In inches (mm)
ADAPTER PLATE
MOUNTING PLATE
INSTALLATION
TYPICAL VERTICAL MOUNT INSTALLATION
1. Remove the paper backing from the
adhesive side of the adapter gasket
(included with adapter kit) and
carefully apply the gasket to the front
of the existing panel cut-out.
2. Apply the panel gasket (provided with
the unit) to one side of the mounting
plate. Slide the mounting plate over
the unit with the gasket facing the
Bezel of the unit.
3. Insert the unit with mounting plate
into the panel cut-out from the front.
Slide the adapter plate over the rear of
the unit. The protrusion on the adapter
plate is designed to fit into the
existing 1/4 DIN panel cut-out to
properly position the unit.
4. Refer to the installation section of the
manual, supplied with the instrument,
to complete the installation.
ORDERING INFORMATION
MODEL NO.
DESCRIPTION
PART NUMBER
PMK5
Panel Mount Adapter Kit (1/4 DIN TO 1/8 DIN)
PMK50000
PMK7
Panel Mount Adapter Kit (1/4 DIN TO 1/16 DIN)
PMK70000
Panel Mount Adapter Kit (1/4 DIN TO CUB)
PMK7A000
PMK7A
1
PMK7 - 1/4 DIN TO 1/16 DIN ADAPTER
This panel mount adapter kit is used to mount 1/16 DIN instruments, into an existing 1/4 DIN panel cut-out. The kit includes two durable steel mounting plates
painted black and a neoprene gasket. The Adapter Kit, when used with a unit which has NEMA 4/IP65 specifications, will meet NEMA 4/IP65 requirements when
properly installed. Red Lion Controls 1/16 DIN products include Temperature and Process Control Units (Models T48, T16, P48, and P16), and Model C48
Counters and Timers.
DIMENSIONS In inches (mm)
MOUNTING PLATE
ADAPTER PLATE
INSTALLATION
TYPICAL INSTALLATION
1. Remove the paper backing from the
adhesive side of the adapter gasket
(included with adapter kit) and
carefully apply the gasket to the front
of the existing panel cut-out.
2. Apply the panel gasket (provided with
the unit) to one side of the mounting
plate. Slide the mounting plate over
the unit with the gasket facing the
Bezel of the unit.
3. Insert the unit with mounting plate
into the panel cut-out from the front.
Slide the adapter plate over the rear of
the unit. The protrusion on the adapter
plate is designed to fit into the
existing 1/4 DIN panel cut-out to
properly position the unit.
4. Refer to the installation section of the
manual, supplied with the instrument,
to complete the installation.
2
PMK7A - 1/4 DIN TO CUB ADAPTER
This panel mount adapter kit is used to mount CUB4, CUB5, DT8 and DT9 instruments, into an existing 1/4 DIN panel cut-out. The kit includes two durable steel
mounting plates painted black and a neoprene gasket. The Adapter Kit, when used with a unit which has NEMA 4/IP65 specifications, will meet NEMA 4/IP65
requirements when properly installed.
DIMENSIONS In inches (mm)
MOUNTING PLATE
ADAPTER PLATE
INSTALLATION
TYPICAL INSTALLATION
1. Remove the paper backing from the
adhesive side of the adapter gasket
(included with adapter kit) and
carefully apply the gasket to the front
of the existing panel cut-out.
2. Apply the panel gasket (provided with
the unit) to one side of the mounting
plate. Slide the mounting plate over
the unit with the gasket facing the
Bezel of the unit.
3. Insert the unit with mounting plate
into the panel cut-out from the front.
Slide the adapter plate over the rear of
the unit. The protrusion on the adapter
plate is designed to fit into the
existing 1/4 DIN panel cut-out to
properly position the unit.
4. Refer to the installation section of the
manual, supplied with the instrument,
to complete the installation.
3
LIMITED WARRANTY
The Company warrants the products it manufactures against defects in materials and workmanship
for a period limited to two years from the date of shipment, provided the products have been stored,
handled, installed, and used under proper conditions. The Company’s liability under this limited
warranty shall extend only to the repair or replacement of a defective product, at The Company’s
option. The Company disclaims all liability for any affirmation, promise or representation with
respect to the products.
The customer agrees to hold Red Lion Controls harmless from, defend, and indemnify RLC against
damages, claims, and expenses arising out of subsequent sales of RLC products or products
containing components manufactured by RLC and based upon personal injuries, deaths, property
damage, lost profits, and other matters which Buyer, its employees, or sub-contractors are or may be
to any extent liable, including without limitation penalties imposed by the Consumer Product Safety
Act (P.L. 92-573) and liability imposed upon any person pursuant to the Magnuson-Moss Warranty
Act (P.L. 93-637), as now in effect or as amended hereafter.
No warranties expressed or implied are created with respect to The Company’s products except those
expressly contained herein. The Customer acknowledges the disclaimers and limitations contained
herein and relies on no other warranties or affirmations.
