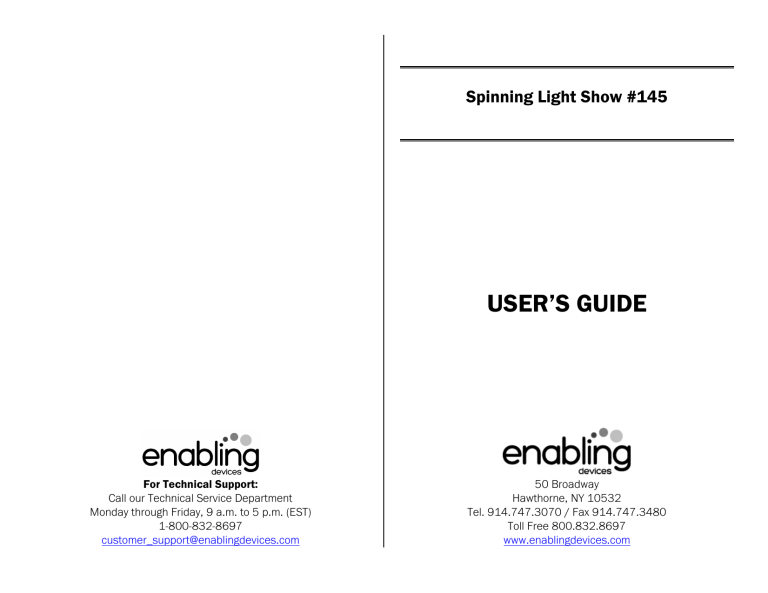

Spinning Light Show #145
USER’S GUIDE
For Technical Support:
Call our Technical Service Department
Monday through Friday, 9 a.m. to 5 p.m. (EST)
1-800-832-8697
[email protected]
50 Broadway
Hawthorne, NY 10532
Tel. 914.747.3070 / Fax 914.747.3480
Toll Free 800.832.8697
www.enablingdevices.com
Great effects!
This dome features a multi-colored array of lights that create an exciting
show. Great for anyone who requires extra somatosensory stimuli. Size:
6½"L x 7½"W x 4½"H. Requires a Capability Switch and 3 AA Batteries.
Weight: ¾ lb.
Operation:
Troubleshooting:
Problem: The Spinning light show does not spin or light up.
Action # 1: Check all Batteries for strength and for proper battery polarity.
Replace if weak or dead. Rotate (spin) the batteries within the battery
compartment to ensure a good connection.
1. The Spinning light show requires three AA batteries (not
included). Use alkaline batteries only (e.g. Duracell or Energizer
brand). Do not use rechargeable batteries or any other type of
batteries because they supply lower voltage and the unit will not
perform properly. Never mix old and new batteries together or
different brands or types together.
2.
The battery compartment is located under the base of the unit.
Carefully turn the unit over, and then remove the battery cover
with a small Phillips Head screwdriver. Install new batteries,
being careful to observe proper battery polarity.
3. Connect any capability switch via the 1/8 inch jack on the side of
the unit. Make sure your connection is tight, there should be no
gaps. Activate your switch and you will be rewarded with spinning
lights. Release pressure from your switch and the lights will stop.
Action # 2: Make sure all connections are tight.
Action # 3: Check your switch with another device you know works or try
another switch to rule out the Spinning light as the source of the problem.
Action # 4: If adapters are being used, they must be Mono only stereo
adapters will not work.
Care of the Unit:
The Spinning Light Show can be wiped clean with any mild
household multi-purpose, non-abrasive cleaner and disinfectant. We
recommend Simple Green, which is a non toxic biodegradable allpurpose cleaner.
Do not use abrasive cleaners, as they will scratch the surface of
the unit.
Do not submerge the unit, as it will damage the electrical
components.
component s.
Rev 1/5/17
