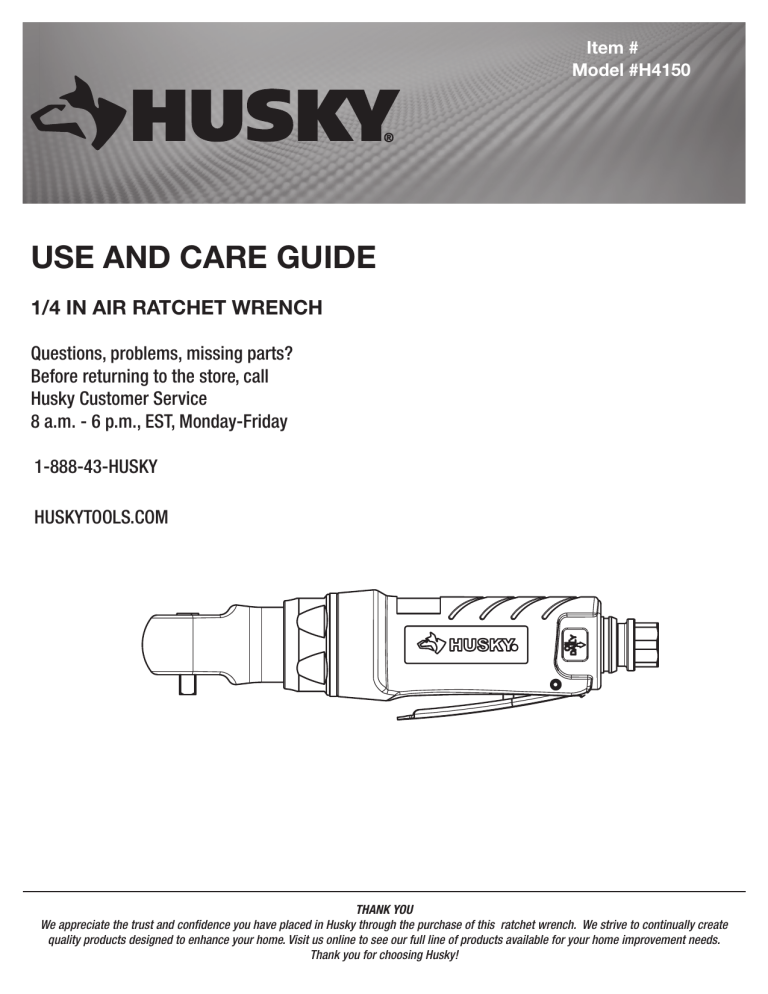

Item #
Model #H4150
USE AND CARE GUIDE
1/4 IN AIR RATCHET WRENCH
Questions, problems, missing parts?
Before returning to the store, call
Husky Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-888-43-HUSKY
HUSKYTOOLS.COM
THANK YOU
We appreciate the trust and confidence you have placed in Husky through the purchase of this ratchet wrench. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Husky!
Table of Contents
Table of Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Work Area Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Personal Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Air Compressor and Air Tool Safety. . . . . . . . . . . . . . . . . . . . . 3
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Husky Air Tools Limited Two Year Warranty. . . . . . . . . . . . . . . 3
Additional Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Pre-Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Lubrication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Service Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety Information
WORK AREA SAFETY
1. Keep your work area clean and well lit. Ensure floors are not
slippery from wax or dust.
3. Always disconnect the air supply and power supply before
making adjustments, servicing a tool, changing an accessory or
when a tool is not in use.
2. Do not operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gases, or dust. Power
tools create sparks which may ignite the dust or fumes. Keep
bystanders, children, and visitors away while operating tools.
Distractions can cause you to lose control.
4. For further information on the safe use of air tools, we advise
you to obtain a copy of CAGI B186.1-2009 from
Husky Air Tools
851 Jupiter Park Lane
Jupiter, Florida 33458
(877) 260-1630.
PERSONAL SAFETY
1. Use safety equipment. Always wear eye protection with side
shields when operating power tools. Dust mask, nonskid
safety shoes, hard hat, or hearing protection must be used for
appropriate conditions.
WARNING: Risk of injury to persons. Read and
understand operation instructions. Always become familiar
with all the instructions and warnings before operating any
pneumatic tool.
2. Stay alert when operating a power tool. Do not use the tool while
tired or under the influence of drugs, alcohol, or medication.
WARNING: Some dust created by power sanding, sawing,
grinding, drilling and other construction activities contains
chemicals known to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
3. Do not wear loose clothing or jewelry. Contain long hair. Keep
your hair, clothing, and gloves away from moving parts. Loose
clothes, jewelry, or long hair can be caught in moving parts.
Lead from lead based paint, crystalline silica from bricks
and cement and other masonry products, arsenic and
chromium from chemically-treated lumber.
4. Keep proper footing and balance at all times. Proper footing
and balance enables better control of the tool in unexpected
situations.
Your risk from those exposures varies, depending on how
often you do this type of work. To reduce your exposure to
these chemicals: work in a well-ventilated area, and work
with approved safety equipment, such as dust masks that
are specifically designed to filter out microscopic particles.
5. Do not use on a ladder or unstable support.
CAUTION: This product contains chemicals known to
the State of California to cause cancer and birth defects or
other reproductive harm. Wash hands after handling.
2
Safety Information (continued)
AIR COMPRESSOR AND AIR TOOL SAFETY
1. Risk of Bursting. Do not adjust the regulator to result in output
pressure greater than the marked maximum pressure of this air
tool.
WARNING: Do not use at a pressure greater than the
rated maximum pressure of this air tool.
2. Ensure the hose is free of obstructions or snags. Entangled or
snarled hoses can cause loss of balance or footing and may
become damaged.
WARNING: Do not attempt to modify this tool or create
accessories not recommended for use with this tool. Any
such alteration or modification is misuse and could result in
a hazardous condition leading to possible serious personal
injury.
3. Never leave a tool unattended with the air hose attached.
4. Do not operate this tool if it does not contain a legible warning
label.
WARNING: Operating any power tool can result in foreign
objects being thrown into your eyes, which can result in
severe eye damage. Before beginning operation, always
wear safety goggles, safety glasses with side shields, or
a full face shield when needed. Always use eye protection
marked to comply with ANSI Z87.1.
5. Do not continue to use a tool or hose that leaks air or does not
function properly.
6. Never direct a jet of compressed air toward people or animals.
7. Protect your lungs. Wear a face or dust mask if the operation is
dusty.
WARNING: Avoid Prolonged Exposure to Vibration
Pneumatic tools can vibrate during use. Prolonged exposure
to vibration or very repetitive hand and arm movements,
can cause injury. Stop using any tool if discomfort, tingling
feeling or pain occurs. You should consult your physician
before resuming use of the tool.
WARNING: Hearing Protection is Recommended
Hearing protection should be used when the noise level
exposure equals or exceeds an 8 hour time-weighted
average sound level of 85dBA.
Warranty
HUSKY AIR TOOLS LIMITED TWO YEAR WARRANTY
If within two years from the date of purchase, this Husky air tool product fails due to a defect in materials or workmanship, please
immediately contact the Customer Service Team at 1-888-43-HUSKY 8 a.m. - 6 p.m., EST, Monday-Friday, except normal holidays. Do not
return the air tool to the store. Please be prepared to send the product, postage prepaid, to the address provided by the Customer Service
Team. The package must also include a copy of the dated first owner purchase receipt with the air tool model included and circled. The
serial number and month/year of manufacture of the air tool must also be included to determine warranty. A defective product will be
promptly replaced with a new one of equal or greater value. This warranty excludes incidental/consequential damages and failures due to
misuse, abuse or normal wear and tear. This warranty gives you specific rights, and you may also have other rights, which vary, from state
to state.
Please contact the Customer Service Team at 1-888-43-HUSKY or visit www.HUSKYTOOLS.com.
ADDITIONAL LIMITATIONS
To the extent permitted by applicable law, all implied warranties, including warranties of merchantability or fitness for a particular
purpose, are disclaimed. Any implied warranties, including warranties of merchantability or fitness for a particular purpose, that cannot
be disclaimed under state law are limited to two years from the date of purchase. Husky is not responsible for direct, indirect, incidental,
special or consequential damages. If this air compressor is used for commercial purposes, the warranty will apply for ninety (90) days
from the date of purchase. Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights, which vary from state to state.
3
HUSKYTOOLS.COM
Please contact 1-888-43-HUSKY for further assistance.
Pre-Installation
SPECIFICATIONS
Free Speed
(RPM)
Maximum
Torque
Weight
(lbs)
Length
(in)
Air Cons.
(SCFM)
Maximum
Operating
Pressure (PSI)
200
30 ft-lb
1.43
7.84
4
90
PACKAGE CONTENTS
A
Part
A
Description
Quantity
1/4” Ratchet Wrench
4
1
Installation
1
Cleaning the air hose
□□ A 3/8" air hose is required, with a maximum length of 25 ft.
□□ Clean the air hose of accumulated dust and moisture
before connecting it to the air supply.
NOTE: If a longer air hose is required, connect a 1/2" air
hose to the 3/8" air hose to ensure the ratchet wrench has
the necessary air supply.
2
Connecting to the air supply
Recommended Air Line Set-Up
Part
□□ Always use clean dry air. Excessive moisture and dirt will
greatly reduce the life of any air motor. We recommend the
installation of an in-line filter-regulator-lubricator as close
to the tool as possible.
□□ Ensure all hoses and fittings are the correct size and
secured tightly.
Description
A
1/4” Ratchet Wrench
B
Quick Plug
C
Quick Coupler
D
Air Hose
E
In-line Regulator
F
In-line Lubricator
G
In-line Filter
H
Air Compressor
5
HUSKYTOOLS.COM
Please contact 1-888-43-HUSKY for further assistance.
Operation
1
2
Operating the ratchet wrench
□□ This 1/4” Ratchet Wrench is designed to operate on
90 PSIG. Lower pressure (below 90 PSIG) will reduce
performance of the tool. Higher air pressure (over 90
PSIG) raises the performance of the tool beyond its rated
capacity and could cause serious damage to the tool and
the user.
Changing the direction of the tool
WARNING: Disconnect the tool from the air supply before
servicing or changing accessories.
□□ The direction of the tool is reversible.
□□ Control the rotation direction by turning the reverse button
above the ratchet head to R (Reverse) or F (Forward).
Lever
Reverse
3
4
Installing and removing the sockets
Forward
Driving the nuts and bolts
□□ Place the reverse button located above the head of the
ratchet wrench to the correct direction, F (Forward) or R
(Reverse). Fit the correct size socket to the anvil of the
ratchet wrench.
WARNING: Disconnect the tool from the air supply before
servicing or changing accessories.
□□ Hold the ratchet wrench with one hand and place the
socket onto the nut/bolt to be tightened or removed. Press
the throttle lever and stop the operation once the nut/bolt
is removed or tightened.
To install sockets:
□□ Remove the air supply from the ratchet wrench.
□□ Fit the 1/4” square drive socket onto the anvil, pushing on
the socket.
To remove sockets:
□□ Remove the air supply from the ratchet wrench.
□□ Holding the socket firmly, pull it off the anvil.
Socket
Bolt
6
Maintenance
Ensure the air line is shut-off and drained of air before removing this tool for service. This will prevent the tool
from operating if the throttle is accidentally engaged.
LUBRICATION
□□ An in-line filter-regulator-lubricator is recommended as it increases tool life and keeps the tool in sustained
operation.
□□ Regularly check and fill the in-line lubricator with air tool oil. Avoid using excessive amounts of oil.
□□ Adjust the in-line lubricator by placing a sheet of paper next to the tool’s exhaust ports and holding the throttle
open approximately 30 seconds. The lubricator is properly set when a light stain of oil collects on the paper.
□□ If it is necessary to store the tool for an extended period of time (overnight, weekend, etc.), generously lubricate the tool through the air
inlet. Run the tool for approximately 30 seconds to ensure the oil is evenly distributed throughout the tool. Store the tool in a clean and
dry environment.
□□ Recommended lubricants: Air tool oil or any other high grade turbine oil containing moisture absorbent, rust inhibitors, metal wetting
agents, and an EP (extreme pressure) additive.
Troubleshooting
Problem
Possible Cause
Solution
The tool runs slowly or will not
operate.
There is grit or gum in the tool.
Flush the tool with air tool oil or gum solvent.
The tool is out of oil.
Lubricate the tool according to the lubrication
instructions in this manual.
The air pressure is low.
□□ Adjust the regulator on the tool to the
maximum setting.
□□ Adjust the compressor regulator to the tool’s
maximum setting of 90 psi.
The air hose leaks.
Tighten and seal the hose fittings with pipe thread
tape if leaks are found.
The air pressure drops.
□□ Ensure the hose is the proper size. Long
hoses or tools using large volumes of air may
require a hose with an I.D. of ½" or larger
depending on the total length of the hose.
□□ Do not use a multiple number of hoses
connected together with a quick connect
fitting. This causes additional pressure drops
and reduces the tool power. Directly connect
the hoses together.
There is moisture blowing out
of the tool’s exhaust.
There is a worn rotor blade in the motor.
Replace the rotor blade.
There is a worn ball bearing in the motor.
Remove and inspect the bearing for rust, dirt, and
grit. Replace or clean and grease the bearing with
bearing grease.
There is water in the tank.
Drain the tank. (See the air compressor manual
for instructions.) Lubricate the tool and run it until
water is not evident. Lubricate the tool again and
run for 1-2 seconds.
7
HUSKYTOOLS.COM
Please contact 1-888-43-HUSKY for further assistance.
Service Parts
Ref
#
Part Number
Description
1
932-312401
Housing
Qty
1
Ref Part Number
#
Description
Qty.
26
Crank Shaft
1
932-301230
2
940337
Spring Pin
1
27
932-301226
Idler Gear Plate
1
3
933-312303
Air Inlet
1
28
932-301231
Drive Bushing
1
4
932-301404
Throttle Lever
1
29
932-301232
Yoke
1
5
932-301405
Valve Pin
1
30
932-301237
Ratchet Pawl
1
6
932-312406
Valve
1
31
932-301235
Spring Cap
1
7
932-301407
Throttle Valve
1
32
932-301239
Spring
1
8
940142
Spring
1
33
932-301242
Washer
1
9
952235
O-Ring
1
34
932-301233
Reverse Buton
1
10
952206
Deflector
1
35
9PN03030808
Pin
1
11
9052213
Ball Bearing
1
36
970117
Spring Pin
1
12
952245
Steel Ball
2
37
932-301238
Ratchet Anvil 1/4"
1
13
90627ZZ
Ball Bearing
1
38
932-301234
Spring
2
14
952214
Rear End Plate
1
39
932-301240
Steel Ball
2
15
932-301215
Rotor
1
40
932-301241
Thrust Washer
1
16
932-301216
Vane
4
41
9IRTW22
Retainer Ring
1
17
9610225
Idler Gear Pin
3
42
930117
Spring Pin
1
18
932-301218
Cylinder
1
43
9OR01000105
O-Ring
1
19
932-301219
Front End Plate
1
44
930107
O-Ring
1
20
932-301424
Nut
1
45
9706109
O-Ring
1
21
933-312310
Valve Plug
1
46
90689ZZ
Ball Bearing
1
22
932-301222
Thread Ring Gear
1
47
933-312452
Rubber Grip (Husky)
1
8
Questions, problems, missing parts? Before returning to the store,
call Husky Customer Service
8 a.m.-6 p.m., EST, Monday-Friday
1-888-43-HUSKY
HUSKYTOOLS.COM
Retain this manual for future use.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
