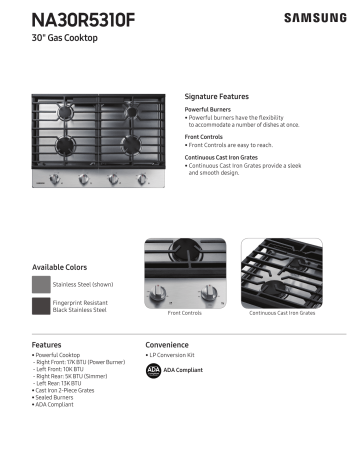

NA30R5310F
30" Gas Cooktop
Signature Features
Powerful Burners
• Powerful burners have the flexibility
to accommodate a number of dishes at once.
Front Controls
• Front Controls are easy to reach.
Continuous Cast Iron Grates
• Continuous Cast Iron Grates provide a sleek
and smooth design.
Available Colors
Stainless Steel (shown)
Fingerprint Resistant
Black Stainless Steel
Front Controls
Features
Convenience
• Powerful Cooktop
- Right Front: 17K BTU (Power Burner)
- Left Front: 10K BTU
- Right Rear: 5K BTU (Simmer)
- Left Rear: 13K BTU
• Cast Iron 2-Piece Grates
• Sealed Burners
• ADA Compliant
• LP Conversion Kit
ADA ADA Compliant
Compliant
Continuous Cast Iron Grates
NA30R5310F
30" Gas Cooktop
Installation Requirements
Total Power (BTU)
45K
Countertop cut-out and minimum clearance dimensions:
Power Source
13" Max.
18" Min.
Rear wall
Vertical
combustible
surface
All horizontal clearances must
be maintained f or a minimum
of 18" above the cooking surface.
120V / 60 Hz / 1A
Allow 7/16" minimum vertical
clearance f rom the cooktop
inimum depth
bottom (or 3⁹/16") m
from the countertop) t o any
combustible surfaces, including the upper edge of a drawer
installed b
elow the cooktop.
• Right Front: 17K (Power Burner)
• Left Front: 10K
• Right Rear: 5K (Simmer)
• Left Rear: 13K
Gas Cooktop (BTU)
Warranty
30" Min.
One (1) Year All Parts and Labor
12" Min.
2⁷/"
Min.
Product Dimensions & Weight (WxHxD)
28¹/"
Min.
19⁵/"
Min.
Outside (Max) Cooktop Dimensions: 30" x 5 13/16" x 21"
Cooktop Cut-Out Dimensions: 28 1/2" x 3 1/4" x 19 5/8"
Weight: 60.5 lbs (Stainless Steel)
60.7 lbs (Fingerprint Resistant
Black Stainless Steel)
12" Min.
Minimum distance to combustible
side wall above countertop (both sides)
/16"
7
"
6
5" to Center of 2" Dia.
Shipping Dimensions
Hole from countertop & Weight (WxHxD)
3 9 /16 "
5" to Center of 2" Dia.
Hole from countertop
DRAWER
Dimensions: 34 11/16" x 10 5/8" x 25 5/8"
Weight: 71.0 lbs
90° Elbow
Color
90° Elbow
Electrical outlet 12" minimum
below countertop
nimum
Cabinet Sides
2" Dia. Hole
20 7/8" from front
of countertop to
hole center
Model #
UPC Code
2" Dia. Hole
20 7/8" from front
of countertop to
hole center
Stainless Steel
NA30R5310FS/AA 887276298924
Cabinet Sides
Fingerprint Resistant
Black
Stainless Steel NA30R5310FG/AA 887276298917
View from Front of Cooktop
View from Front of Cooktop
Installing Over a Single Oven
Cooktop Dimensions
**
*
* This cooktop can be installed
above any Samsung single
built-in oven. Refer to
installation manual of oven.
9 1/2" Max.
33/4"
Min.
27 1/4"27 3/8"
1" 11/4"
22" Min.
28 1/2" - 28 5/8"
24"
** Gas and electrical connections
for gas cooktop must be located
in an adjacent accessible location
to the right.
30"
Countertop to
grate surface
2 9/16"
3 1/4"
Chassis height
21"
28 1/8"
4"
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
©2019 Samsung Electronics America, Inc. 85 Challenger Road, Ridgefield Park, NJ 07660. Tel: 800-SAMSUNG. samsung.com. Samsung is a registered trademark of Samsung Electronics Co. Ltd.
19 3/8"
