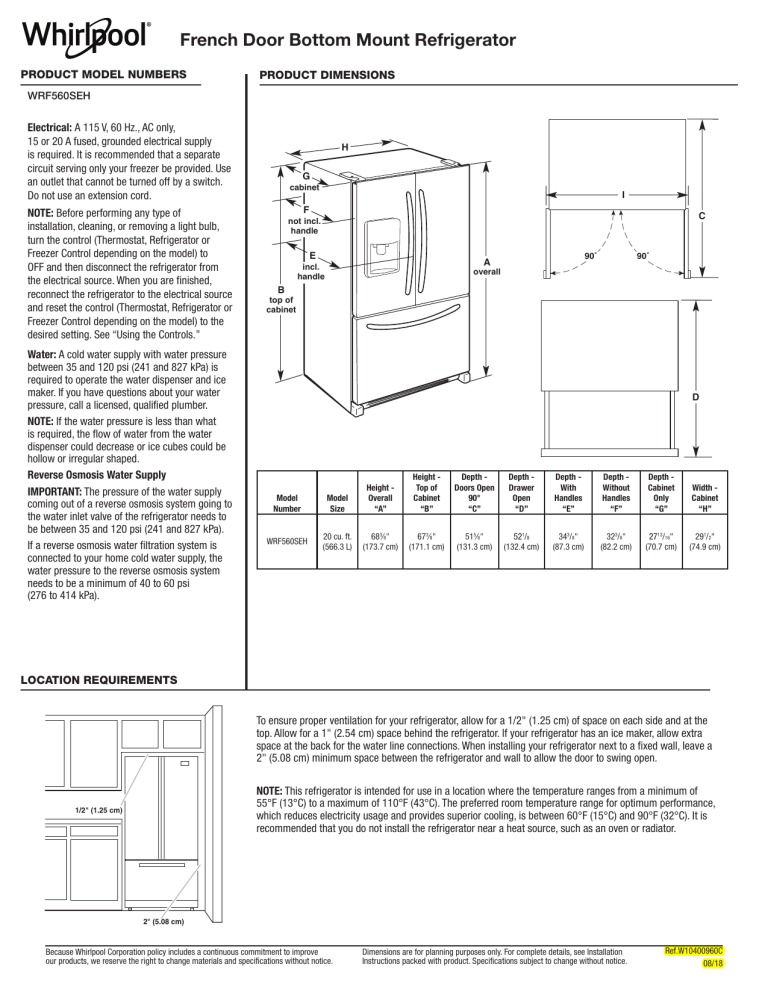

French Door Bottom Mount Refrigerator
PRODUCT MODEL NUMBERS
PRODUCT DIMENSIONS
WRF560SEH
Electrical: A 115 V, 60 Hz., AC only,
15 or 20 A fused, grounded electrical supply
is required. It is recommended that a separate
circuit serving only your freezer be provided. Use
an outlet that cannot be turned off by a switch.
Do not use an extension cord.
NOTE: Before performing any type of
installation, cleaning, or removing a light bulb,
turn the control (Thermostat, Refrigerator or
Freezer Control depending on the model) to
OFF and then disconnect the refrigerator from
the electrical source. When you are finished,
reconnect the refrigerator to the electrical source
and reset the control (Thermostat, Refrigerator or
Freezer Control depending on the model) to the
desired setting. See “Using the Controls.”
Water: A cold water supply with water pressure
between 35 and 120 psi (241 and 827 kPa) is
required to operate the water dispenser and ice
maker. If you have questions about your water
pressure, call a licensed, qualified plumber.
NOTE: If the water pressure is less than what
is required, the flow of water from the water
dispenser could decrease or ice cubes could be
hollow or irregular shaped.
Reverse Osmosis Water Supply
IMPORTANT: The pressure of the water supply
coming out of a reverse osmosis system going to
the water inlet valve of the refrigerator needs to
be between 35 and 120 psi (241 and 827 kPa).
If a reverse osmosis water filtration system is
connected to your home cold water supply, the
water pressure to the reverse osmosis system
needs to be a minimum of 40 to 60 psi
(276 to 414 kPa).
H
G
cabinet
I
F
C
not incl.
handle
E
90˚
A
incl.
handle
90˚
overall
B
top of
cabinet
D
Model
Number
Model
Size
Height Overall
“A”
WRF560SEH
20 cu. ft.
(566.3 L)
683⁄8"
(173.7 cm)
Height Top of
Cabinet
“B”
Depth Doors Open
90°
“C”
Depth Drawer
Open
“D”
Depth With
Handles
“E”
Depth Without
Handles
“F”
Depth Cabinet
Only
“G”
Width Cabinet
“H”
673⁄8"
(171.1 cm)
515⁄8"
(131.3 cm)
521/8
(132.4 cm)
343/8"
(87.3 cm)
323/8"
(82.2 cm)
2713/16"
(70.7 cm)
291/2"
(74.9 cm)
LOCATION REQUIREMENTS
To ensure proper ventilation for your refrigerator, allow for a 1/2" (1.25 cm) of space on each side and at the
top. Allow for a 1" (2.54 cm) space behind the refrigerator. If your refrigerator has an ice maker, allow extra
space at the back for the water line connections. When installing your refrigerator next to a fixed wall, leave a
2" (5.08 cm) minimum space between the refrigerator and wall to allow the door to swing open.
NOTE: This refrigerator is intended for use in a location where the temperature ranges from a minimum of
55°F (13°C) to a maximum of 110°F (43°C). The preferred room temperature range for optimum performance,
which reduces electricity usage and provides superior cooling, is between 60°F (15°C) and 90°F (32°C). It is
recommended that you do not install the refrigerator near a heat source, such as an oven or radiator.
1/2" (1.25 cm)
2" (5.08 cm)
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref.W10400960C
08/18
