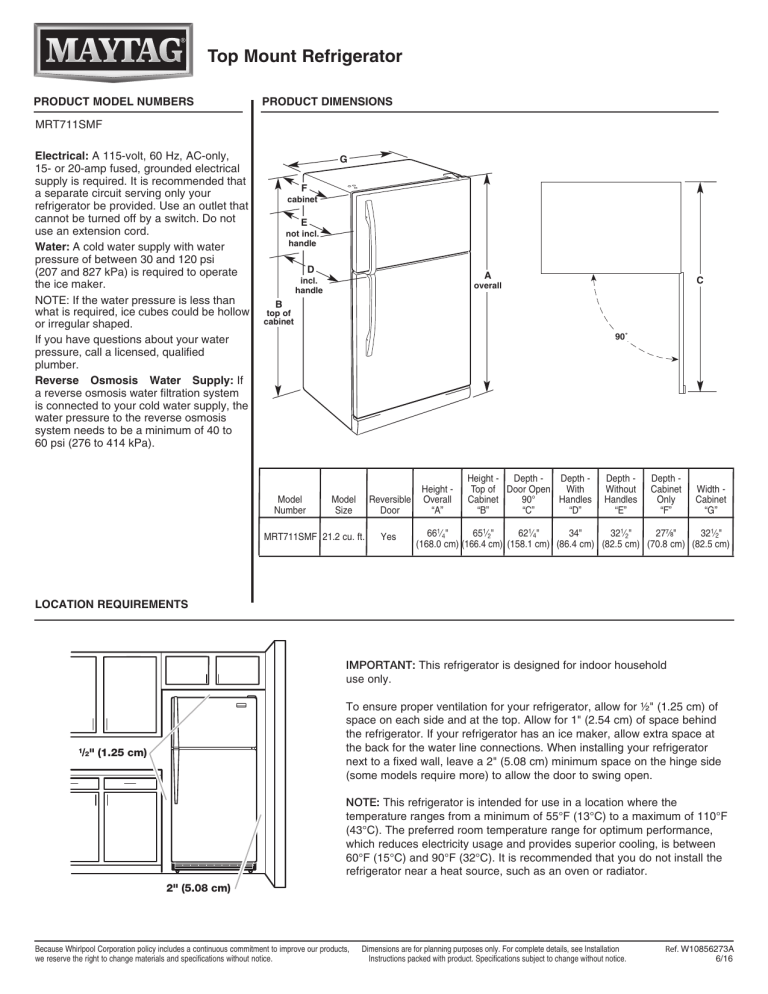

Maytag MRT711SMFZ 21.2-cu ft Top-Freezer Refrigerator Dimensions Guide

Top Mount Refrigerator

PRODUCT MODEL NUMBERS

MRT711SMF

PRODUCT DIMENSIONS

Electrical: A 115-volt, 60 Hz, AC-only,

15- or 20-amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.

Water: A cold water supply with water pressure of between 30 and 120 psi

(207 and 827 kPa) is required to operate the ice maker.

NOTE: If the water pressure is less than what is required, ice cubes could be hollow or irregular shaped.

If you have questions about your water pressure, call a licensed, qualified plumber.

Reverse Osmosis Water Supply: If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to

60 psi (276 to 414 kPa).

F cabinet

E not incl.

handle

B top of cabinet

D incl.

handle

4

G

1

A overall

90˚

C

Model

Number

MRT711SMF

Model

Size

21.2 cu. ft.

Reversible

Door

Yes

Height -

Overall

“A”

Height -

Top of

Cabinet

“B”

Depth -

Door Open

90°

“C”

Depth -

With

Handles

“D”

Depth -

Without

Handles

“E”

Depth -

Cabinet

Only

“F”

Width -

Cabinet

“G”

66 1 ⁄

4

"

(168.0 cm)

65 1 ⁄

2

"

(166 .4

cm)

62 1 ⁄

4

"

(158.1 cm)

34"

(8 6 .

4 cm)

32 1 ⁄

2

"

(8 2 .5 cm)

2 7 ⁷⁄₈ "

(7 0 .

8 cm)

32 1 ⁄

2

"

(82.5 cm)

LOCATION REQUIREMENTS

1 /

2

" (1.25 cm)

IMPORTANT: This refrigerator is designed for indoor household use only.

To ensure proper ventilation for your refrigerator, allow for ½" (1.25 cm) of space on each side and at the top. Allow for 1" (2.54 cm) of space behind the refrigerator. If your refrigerator has an ice maker, allow extra space at the back for the water line connections. When installing your refrigerator next to a fixed wall, leave a 2" (5.08 cm) minimum space on the hinge side

(some models require more) to allow the door to swing open.

NOTE: This refrigerator is intended for use in a location where the temperature ranges from a minimum of 55°F (13°C) to a maximum of 110°F

(43°C). The preferred room temperature range for optimum performance, which reduces electricity usage and provides superior cooling, is between

60°F (15°C) and 90°F (32°C). It is recommended that you do not install the refrigerator near a heat source, such as an oven or radiator.

2" (5.08 cm)

Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. W10856273A

6/16
