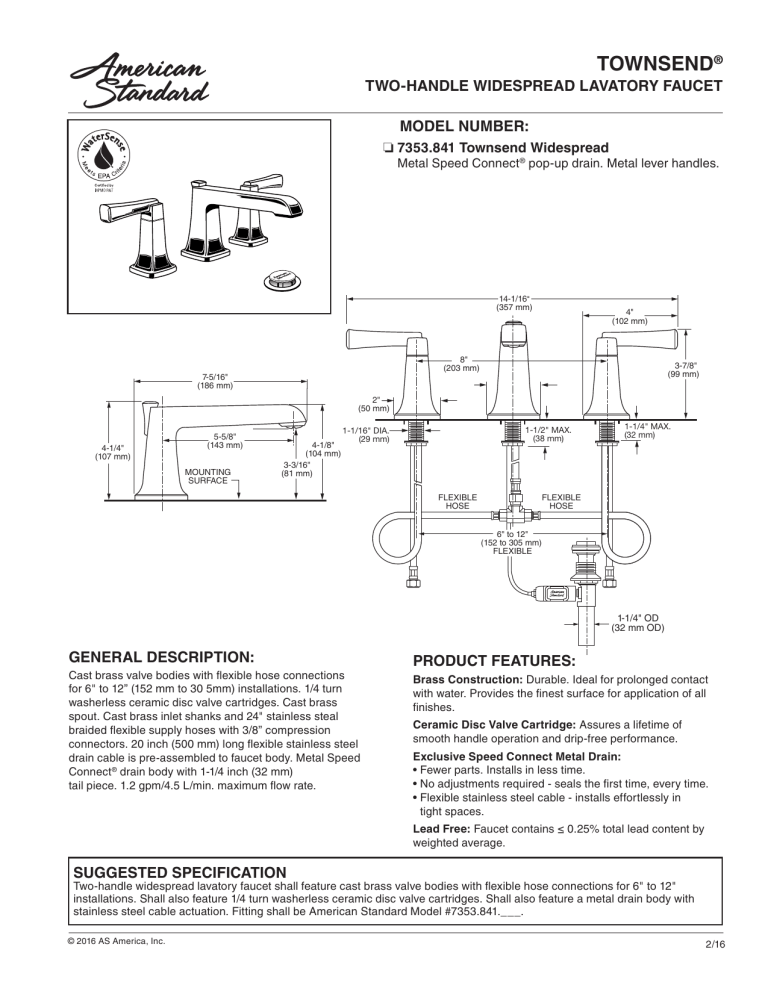

TOWNSEND®
TWO-HANDLE WIDESPREAD LAVATORY FAUCET
MODEL NUMBER:
❏ 7353.841 Townsend Widespread
Metal Speed Connect ® pop-up drain. Metal lever handles.
14-1/16"
(357 mm)
4"
(102 mm)
8"
(203 mm)
7-5/16"
(186 mm)
3-7/8"
(99 mm)
2"
(50 mm)
4-1/4"
(107 mm)
5-5/8"
(143 mm)
MOUNTING
SURFACE
4-1/8"
(104 mm)
3-3/16"
(81 mm)
1-1/2" MAX.
(38 mm)
1-1/16" DIA.
(29 mm)
FLEXIBLE
HOSE
1-1/4" MAX.
(32 mm)
FLEXIBLE
HOSE
6" to 12"
(152 to 305 mm)
FLEXIBLE
1-1/4" OD
(32 mm OD)
GENERAL DESCRIPTION:
Cast brass valve bodies with flexible hose connections
for 6" to 12” (152 mm to 30 5mm) installations. 1/4 turn
washerless ceramic disc valve cartridges. Cast brass
spout. Cast brass inlet shanks and 24" stainless steal
braided flexible supply hoses with 3/8” compression
connectors. 20 inch (500 mm) long flexible stainless steel
drain cable is pre-assembled to faucet body. Metal Speed
Connect ® drain body with 1-1/4 inch (32 mm)
tail piece. 1.2 gpm/4.5 L/min. maximum flow rate.
PRODUCT FEATURES:
Brass Construction: Durable. Ideal for prolonged contact
with water. Provides the finest surface for application of all
finishes.
Ceramic Disc Valve Cartridge: Assures a lifetime of
smooth handle operation and drip-free performance.
Exclusive Speed Connect Metal Drain:
• Fewer parts. Installs in less time.
• No adjustments required - seals the first time, every time.
• Flexible stainless steel cable - installs effortlessly in
tight spaces.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
SUGGESTED SPECIFICATION
Two-handle widespread lavatory faucet shall feature cast brass valve bodies with flexible hose connections for 6" to 12"
installations. Shall also feature 1/4 turn washerless ceramic disc valve cartridges. Shall also feature a metal drain body with
stainless steel cable actuation. Fitting shall be American Standard Model #7353.841.___.
© 2016 AS America, Inc.
2/16
TOWNSEND®
TWO-HANDLE WIDESPREAD LAVATORY FAUCET
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
1.2
GALLONS PER MINUTE
ANSI A117.1
ASME A112.18.1
NSF 61/Section 9 and Annex G
CSA B125.1
FLOW RATE*
1.4
1.0
0.8
0.6
0.4
0.2
0.0
0
20
40
60
80
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
Finish Options
Product
Number
7353.841
Description
Polished
Chrome
PVD
Polished
Nickel
Legacy
Bronze
PVD
Satin
Nickel
002
013
278
295
Townsend Widespread with Metal Speed Connect ®
pop-up drain. Metal lever handles.
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
© 2016 AS America, Inc.
2/16
