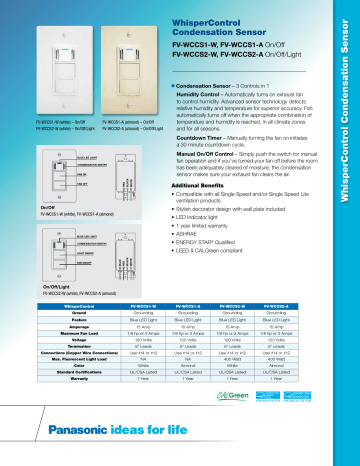

Condensation Sensor – 3 Controls in 1
Humidity Control – Automatically turns on exhaust fan
to control humidity. Advanced sensor technology detects
relative humidity and temperature for superior accuracy. Fan
automatically turns off when the appropriate combination of
temperature and humidity is reached, in all climate zones
and for all seasons.
Countdown Timer – Manually turning the fan on initiates
a 30 minute countdown cycle.
Manual On/Off Control – Simply push the switch for manual
fan operation and if you’ve turned your fan off before the room
has been adequately cleared of moisture, the condensation
sensor makes sure your exhaust fan clears the air.
Additional Benefits
• Compatible with all Single Speed and/or Single Speed Lite
ventilation products
On/Off
FV-WCCS1-W (white), FV-WCCS1-A (almond)
• Stylish decorator design with wall plate included
• LED Indicator light
• 1 year limited warranty
• ASHRAE
• ENERGY STAR® Qualified
• LEED & CALGreen compliant
On/Off/Light
FV-WCCS2-W (white), FV-WCCS2-A (almond)
WhisperControl
FV-WCCS1-W
FV-WCCS1-A
FV-WCCS2-W
Ground
Grounding
Grounding
Grounding
FV-WCCS2-A
Grounding
Feature
Blue LED Light
Blue LED Light
Blue LED Light
Blue LED Light
Amperage
15 Amp
15 Amp
15 Amp
15 Amp
Maximum Fan Load
1/8 hp or 3 Amps
1/8 hp or 3 Amps
1/8 hp or 3 Amps
1/8 hp or 3 Amps
120 Volts
Voltage
120 Volts
120 Volts
120 Volts
Termination
6" Leads
6" Leads
6" Leads
6" Leads
Connections (Copper Wire Connections)
Use #14 or #12
Use #14 or #12
Use #14 or #12
Use #14 or #12
400 Watt
Max. Fluorescent Light Load
NA
NA
400 Watt
Color
White
Almond
White
Almond
Standard Certifications
UL/CSA Listed
UL/CSA Listed
UL/CSA Listed
UL/CSA Listed
Warranty
1 Year
1 Year
1 Year
1 Year
WhisperControl Condensation Sensor
WhisperControl
Condensation Sensor
WhisperControl Switches
Panasonic WhisperControl Switches provide quality and performance
to meet residential and commercial application needs. Available in
single, double, triple, quad functions and preset count down timer to
provide a complete Whisper package for all of our ventilation fans.
1 Function Control
On/Off Switch w/Pilot Light
— Ideal for Fan
Features & Benefits
• Pilot light rocker visible when fan is
ON, even in bright light
• Back and side wiring terminals accept
both solid and stranded wire to ease
installation
Specifications
FV-WCSW11-W (white)
FV-WCSW11-A (almond)
2 Function Control On/Off
— Ideal for Fan/Light
• Full-rated current capacity with
fluorescent or resistive loads. Motor
capacity is 80% of switch rating
• Includes matching wall plate
• Commercial Grade
FV-WCSW11-W/A
Ground
Self Grounding
Feature
Pilot Light - Illuminated ON - Req. Neutral
Amperage
20 Amp
Voltage
120 Volt
HP Rating
1HP-120V
Terminations
Back & Side Wire
Standards & Certifications
UL/CSA Listed
Warranty
10 Year Limited
Features & Benefits
• Multi-switch combination devices
save space and add convenience
• Common feed shunted internally to all
switches
Specifications
• Elegant decorator styling provides
multiple controls in a single-gang wall
box
• Includes matching wall plate
• Commercial Grade
FV-WCSW21-W/A
Ground
Grounding
Feature
Single Pole/ Single Pole
Amperage
15 Amp
Voltage
120 Volt
Termination
Quickwire Push-In, Back & Side Wire
Standards & Certifications
UL/CSA Listed
Warranty
2 Year Limited
FV-WCSW21-W (white)
FV-WCSW21-A (almond)
3 Function Control On-Off
— Ideal for Fan/Light/Night-light
Features & Benefits
• Multi-switch combination devices
save space and add convenience
• Common feed shunted internally to all
switches
Specifications
FV-WCSW31-W (white)
FV-WCSW31-A (almond)
• Elegant decorator styling provides
multiple controls in a single-gang wall
box
• Includes matching wall plate
• Commercial Grade
FV-WCSW31-W/A
Ground
Grounding
Feature
Single Pole/ Single Pole/ Single Pole
Amperage
15 Amp
Voltage
120 Volt
Termination
Quickwire Push-In, Back & Side Wire
Standards & Certifications
UL/CSA Listed
Warranty
2 Year Limited
Features & Benefits
• Single pole/double throw on-off-on
top switch, two single pole on-off
switches
• Multi-switch combination devices
save space and add convenience
• Common feed shunted internally to
all switches
Specifications
FV-WCSW41-W (white)
Preset Count Down Delay
Off Timer Switch — Ideal for
Panasonic's quiet fans to ensure
you don't forget to shut them off
FV-WCSW41-W
Ground
Grounding
Feature
Single pole/double throw on-off-on top switch,
two single pole on-off switches
Individual Switch Amperage
15 Amp
Total Switch Amperage
20 Amp
Voltage
120 Volt
Termination
Quickwire Push-In, Back & Side Wire
Standards & Certifications
UL/CSA
Warranty
2 Year Limited
Features & Benefits
• Timer switch has four preset button
options; 10-20-30 or 60 minutes
• LED light indicates countdown time
elapsed and last LED flashes two
minutes until off warning
• Simple press-and-hold override
timer function; allows you to hold
down the button until LED light
indicates it is on
Specifications
FV-WCD01-W (white)
FV-WCD01-A (almond)
• Elegant decorator styling provides
multiple controls in a single-gang
wall box
• Includes matching wall plate
• Commercial Grade
• Multi-switch combination devices
save space and add convenience
• Common feed shunted internally to
all switches
• Elegant decorator styling provides
multiple controls in a single-gang
wall box
• Includes matching wall plate
• Commercial grade
FV-WCD01-W/A
Ground
Grounding
Feature
Req. Neutral
Amperage
20 Amp
Voltage
120 Volt
HP Rating
1HP-120V
Termination
6" Leads
Standards & Certifications
UL/CSA Listed
Warranty
5 Year Limited
WhisperControl Switches
4 Function Control
Designed for model FV-11VHL2
Heat/Fan/Light/Night-Light
Cross Reference for Applicable Combination of WhisperControl to Product
Model
FV-WCDO1-W/A
FV-WCSW11-W/A
FV-WCSW21-W/A
FV-WCSW31-W/A
FV-WCSW41-W/A
Switch Type
Delay Off Timer
1 Function Control
2 Function Control
3 Function Control
4 Function Control
FV-05VK1 / 05VK3
X
X
FV-08VK1 / 08VK3
X
X
FV-13VK3
X
X
FV-08VKL1 / 08VKL3
X
X
FV-13VKL3
X
X
FV-08VKS2 / 08VKS3
WhisperGreen
FV-08VKM2 / 08VKM3
FV-13VKS2 / 13VKS3
FV-13VKM2 / 13VKM3
FV-08VKSL2 / 08VKSL3
X
FV-08VKML2 / 08VKML3
X
FV-13VKSL3
X
FV-13VKML3
WhisperCeiling
X
FV-05VQ5
X
X
FV-08VQ5
X
X
FV-11VQ5
X
X
FV-15VQ5
X
X
FV-20VQ3
X
X
FV-30VQ3
X
X
FV-40VQ3
X
X
FV-08VQL5
X
X
FV-11VQL5
X
X
FV-15VQL5
X
X
FV-08VQC5
WhisperSense
FV-11VQC5
FV-08VQCL5
X
FV-11VQCL5
WhisperFit
WhisperWelcome
X
X
FV-08VF2
X
X
FV-11VF2
X
X
FV-05VFL2
X
X
FV-08VFL2
X
X
FV-11VFL2
X
X
FV-08VSL1
X
X
FV-10VSL1
X
X
FV-05VFM2
FV-08VFM2
FV-05VS1
WhisperValue
WhisperWall
WhisperWarm
WhisperLine
WhisperComfort
X
FV-05VF2
X
X
FV-08VS1
X
X
FV-10VS1
X
X
FV-08WQ1
X
X
FV-11VH2*
X*
X*
FV-10NLF1
X
X
FV-20NLF1
X
X
FV-30NLF1
X
X
FV-40NLF1
X
X
FV-11VHL2
X
FV-04VE1
X
*Need 2 controls; one for heat and one for fan function
