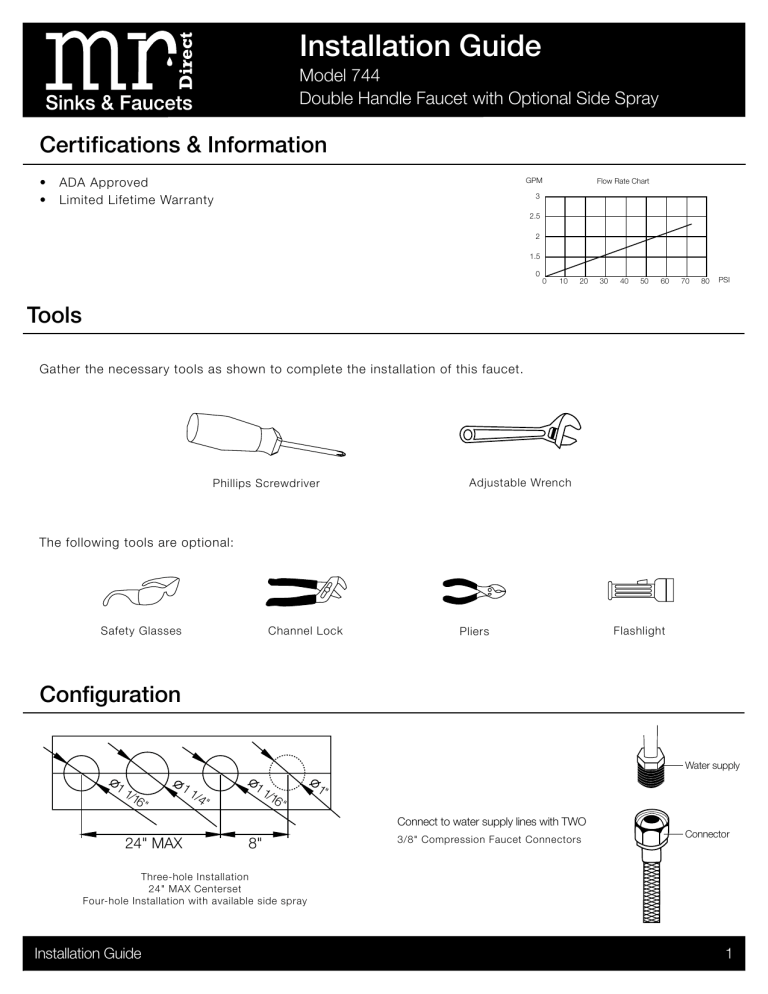

Installation Guide
Model 744
Double Handle Faucet with Optional Side Spray
Certifications & Information
•
•
ADA Approved
Limited Lifetime Warranty
GPM
Flow Rate Chart
3
2.5
2
1.5
0
0
10
20
30
40
50
60
70
80
PSI
Tools
Gather the necessary tools as shown to complete the installation of this faucet.
Phillips Screwdriver
Adjustable Wrench
The following tools are optional:
Safety Glasses
Channel Lock
Pliers
Flashlight
Configuration
Water supply
11
/16
"
11
/4"
11
/16
"
1"
Connect to water supply lines with TWO
SirFaucet
24" MAX
8"
3/8" Compression Faucet Connectors
Connector
Three-hole Installation
24" MAX Centerset
Four-hole Installation with available side spray
Installation Guide
1
Installation Guide
Faucet Installation
A. Turn off the water supply. Remove the
faucet with the mounting hardware attatched from the package.
A
B
lock nut
*An optional matching side spray is also available.
B. Remove all mounting hardware from
the faucet handle shanks.
washer
shank
quick connect
*Coupling nut and cone washer are optional for this
installation depending on your waterline connection.
C. Insert the shank of the faucet handle body
into the hole of the sink deck.
*cone washer
*coupling nut
D
C
From the underside of the sink or
mounting surface, attach the gasket and
washer, followed by the lock nut, onto the
shank.
3
1
2
D. (1) Using a phillips screw driver (2) tighten
the mounting screws untill secure.
(3) Lower the the lock nut to onto the
mounting surface (4) followed by the
faucet handle.
Repeat above steps for second faucet handle.
E
F
E. Remove all mounting hardware from the
faucet shank.
F. From the underside of the sink or
mounting surface, attach the gasket and
washer, followed by the lock nut, onto
the shank. Tighten mounting screws until
secure.
shank
gasket
washer
lock nut
tee fitting
2
lock nut
4
Installation Guide
Faucet Installation Continued
G. (1) Tighten the tee fitting on to
faucet shank (2) Attach the hot and
cold supply lines to the Tee fitting at
the faucet base.
G
(3) Attach the opposite end of each
hose to the corresponding quick
connect fittings by tightening the
3/8” compression fittings onto the
lines.
Secure all fittings with a 1/4 turn of a
wrench.
1
3
2
(4) Secure water line connections to
each corresponding faucet handle
shank base. Secure all fittings with a
1/4 turn of a wrench.
4
Side Spray Installation
1
Side Spray Installation
A. Insert spray hose assembly (1) to far right hole on the sink,
hand tighten with lock nut from underneath.
B. Insert spray hose (2) down hose assembly.
3
C. Connect male end (3) with spray and hand tighten.
2
Replacing plug with supplied Quick Connect connection for side spray installation.
3
www.mrdirectint.com
[email protected]
1-877-946-5725
Important
Turn on the water supply SLOWLY, to test for leaks
before completely opening the water lines.
Remove the aerator from the end of the faucet by carefully unscrewing it.
Let hot and cold water run through both water lines for at least one minute before
replacing the aerator. This will help to clear any debris in the line,
which could otherwise clog the system.
To prevent damage to the tube body, tighten the connections by carefully using two
wrenches as shown. Use caution to not bend the stem.
Check for leaks.
Cleaning Information
Simply rinse and dry faucets with a soft towel every week to prevent mineral deposits from forming. Clean spills and
splatters as they happen. Do not let soap, toothpaste or other contaminates dry on the faucet, this can stain or pit the
finish. Use a mild soap and soft sponge or towel to remove residue. Rinse and dry thoroughly.
Never use an abrasive cleaner or rough sponge to clean or dry your faucet. Harsh cleaners could dull or
scratch the finish. Use only a soft disinfectant that does not contain bleach or chlorine and apply with a soft
towel.
Warranty Information
MR Direct warrants to the original consumer purchaser that our sinks and faucets will be free from defects in
material and workmanship under normal use for the lifetime of the product. MR Direct may elect to repair or
replace any defective MR Direct product covered by our warranty.
Notes
Our warranty does not cover defects caused by misuse, abuse, negligence, alterations, environmental conditions,
improper installation, storage and handling; nor any labor expenses.
From time to time we will change design specifications and materials as conditions require and improvements are
developed. We have no obligation to incorporate such changes in products we previously manufactured.
This warranty is in lieu of any and all other warranties, express or implied, including any warranties of
merchantability and of fitness for a particular purpose; and excludes any incidental or consequential damages. No
representative has the authority to change or enlarge the above warranty.
This warranty is only valid in the United States of America. Some states do not allow limitations on how long
an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above
limitations or exclusion may not apply. This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
One-Year Accessory Warranty
MR Direct warrants to the original purchaser that all of our accessories will be free from defects in material and
workmanship under normal use for one full year.
Our warranty does not cover defects caused by misuse, abuse, negligence, alterations, environmental conditions,
improper installation, storage and handling; nor any labor expenses. MR Direct may elect to repair or replace any
defective MR Direct accessory covered by our warranty.
