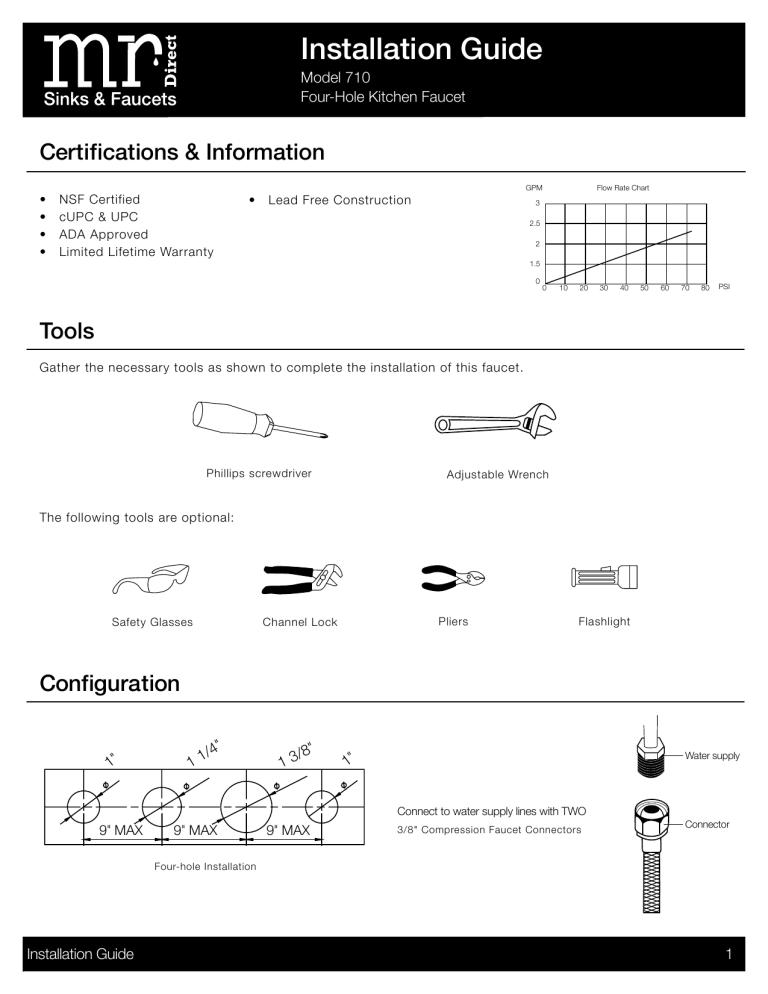

Installation Guide
Model 710
Four-Hole Kitchen Faucet
Certifications & Information
•
•
•
•
GPM
NSF Certified
cUPC & UPC
ADA Approved
Limited Lifetime Warranty
•
Lead Free Construction
Flow Rate Chart
3
2.5
2
1.5
0
0
10
20
30
40
50
60
70
80
PSI
Tools
Gather the necessary tools as shown to complete the installation of this faucet.
Phillips screwdriver
Adjustable Wrench
The following tools are optional:
Safety Glasses
Pliers
Channel Lock
Flashlight
Configuration
1"
"
/4
11
/8"
13
1"
Water supply
Connect to water supply lines with TWO
9" MAX
SirFaucet
Installation Guide
9" MAX
9" MAX
3/8" Compression Faucet Connectors
Connector
Four-hole Installation
1
Installation Guide
Faucet Installation
A.
Turn off the water supply. Remove the
mounting hardware from the remote valve
shank.
A
B
B. From the underside of the sink or mounting
surface, attach the gasket and washer,
followed by the lock nut, onto the shank.
shank
Tighten mounting screws until secure.
mounting
screws
gasket
washer
lock nut
C. Insert the shank of the faucet into the hole of
the sink deck.
C
D
E
F
From the underside of the sink or mounting
surface, attach the gasket and washer,
followed by the lock nut, onto the shank.
D. Using a phillips screw driver tighten the
mounting screws untill secure. Attach
the water supply fitting at the base of the
fauct shank using an adjustable wrench to
tighten.
E. Connect the supply line from the remote
valve quick connect to the valve body at the
faucet base.
F. Insert the side spray shank into the hole of
the sink deck. Attach lock nut from below
and hand tighten.
22
Installation Guide
Faucet Installation Continued
G. Insert the side spray hose into the sink hole.
From under the sink, securely hand tighten
the lock nut.
G
H
I
J
H. Attach side spray hose to the quick connect
fitting at faucet base.
I. Remove all mounting hardware from soap
dispenser. Position the soap dispenser in
desired mounting hole.
J. From underneath the sink thread the nut
onto the shank. Tighten the nut until the
soap dispenser is firmly held in place.
Fill the dispenser bottle with soap, insert the
pump assembly onto the shank.
Side Spray Installation
1
A. Insert spray hose assembly (1) to far right hole on the sink,
hand tighten with lock nut from underneath.
B. Insert spray hose (2) down hose assembly.
3
C. Connect male end (3) with spray and hand tighten.
2
3
www.mrdirectint.com
[email protected]
1-877-946-5725
Important
Turn on the water supply SLOWLY, to test for leaks
before completely opening the water lines.
Remove the aerator from the end of the faucet by carefully unscrewing it.
Let hot and cold water run through both water lines for at least one minute before
replacing the aerator. This will help to clear any debris in the line,
which could otherwise clog the system.
To prevent damage to the tube body, tighten the connections by carefully using two
wrenches as shown. Use caution to not bend the stem.
Check for leaks.
Cleaning Information
Simply rinse and dry faucets with a soft towel every week to prevent mineral deposits from forming. Clean spills and
splatters as they happen. Do not let soap, toothpaste or other contaminates dry on the faucet, this can stain or pit the
finish. Use a mild soap and soft sponge or towel to remove residue. Rinse and dry thoroughly.
Never use an abrasive cleaner or rough sponge to clean or dry your faucet. Harsh cleaners could dull or
scratch the finish. Use only a soft disinfectant that does not contain bleach or chlorine and apply with a soft
towel.
Warranty Information
One-Year Accessory Warranty
MR Direct warrants to the original consumer purchaser that our sinks and faucets will be free from
defects in material and workmanship under normal use for the lifetime of the product. MR Direct may
elect to repair or replace any defective MR Direct product covered by our warranty.
MR Direct warrants to the original purchaser that all of our accessories will be free from defects in
material and workmanship under normal use for one full year.
Our warranty does not cover defects caused by misuse, abuse, negligence, alterations, environmental
conditions, improper installation, storage and handling; nor any labor expenses.
Our warranty does not cover defects caused by misuse, abuse, negligence, alterations, environmental
conditions, improper installation, storage and handling; nor any labor expenses. MR Direct may elect to
repair or replace any defective MR Direct accessory covered by our warranty.
From time to time we will change design specifications and materials as conditions require and
improvements are developed. We have no obligation to incorporate such changes in products we
previously manufactured.
This warranty is in lieu of any and all other warranties, express or implied, including any warranties of
merchantability and of fitness for a particular purpose; and excludes any incidental or consequential
damages. No representative has the authority to change or enlarge the above warranty.
This warranty is only valid in the United States of America. Some states do not allow limitations on how
long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so
the above limitations or exclusion may not apply. This warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.
Installation Guide
4
