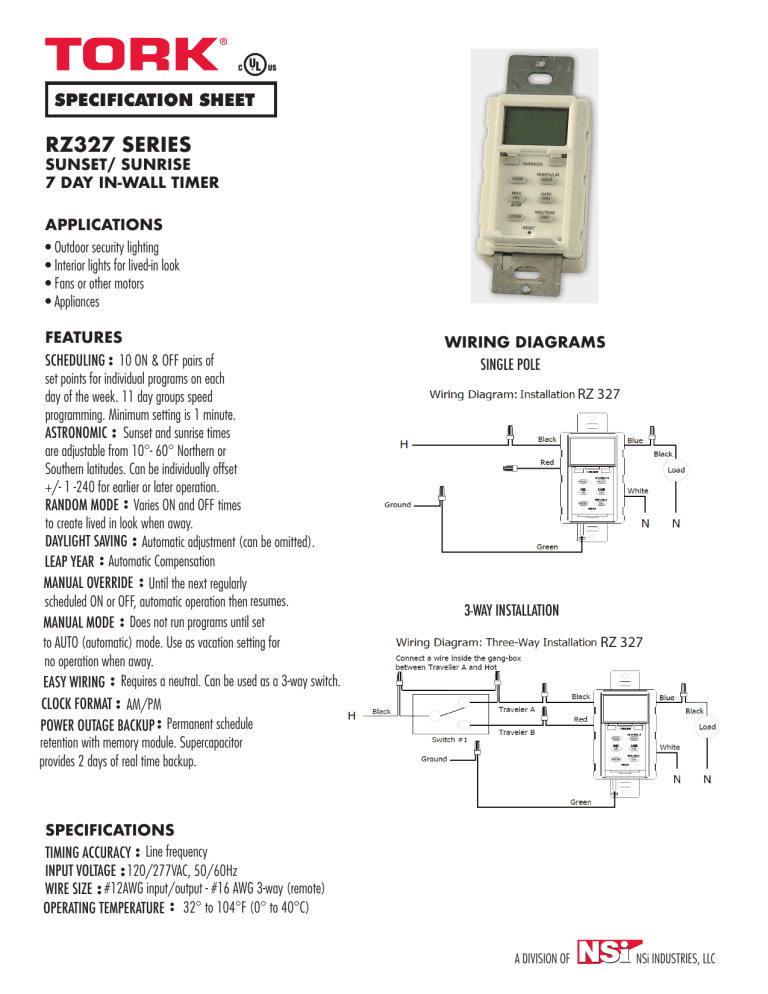

SPECIFICATION SHEET
RZ327 SERIES
SUNSET/ SUNRISE
7 DAY IN-WALL TIMER
APPLICATIONS
• Outdoor security lighting
• Interior lights for lived-in look
• Fans or other motors
• Appliances
FEATURES
SCHEDULING : 10 ON & OFF pairs of
set points for individual programs on each
day of the week. 11 day groups speed
programming. Minimum setting is 1 minute.
ASTRONOMIC : Sunset and sunrise times
are adjustable from 10°- 60° Northern or
Southern latitudes. Can be individually offset
+/- 1 -240 for earlier or later operation.
RANDOM MODE : Varies ON and OFF times
to create lived in look when away.
DAYLIGHT SAVING : Automatic adjustment (can be omitted).
LEAP YEAR : Automatic Compensation
MANUAL OVERRIDE : Until the next regularly
scheduled ON or OFF, automatic operation then resumes.
MANUAL MODE : Does not run programs until set
to AUTO (automatic) mode. Use as vacation setting for
no operation when away.
EASY WIRING : Requires a neutral. Can be used as a 3-way switch.
CLOCK FORMAT : AM/PM
POWER OUTAGE BACKUP : Permanent schedule
retention with memory module. Supercapacitor
provides 2 days of real time backup.
WIRING DIAGRAMS
SINGLE POLE
RZ 327
3-WAY INSTALLATION
RZ 327
SPECIFICATIONS
TIMING ACCURACY : Line frequency
INPUT VOLTAGE : 120/277VAC, 50/60Hz
WIRE SIZE : #12AWG input/output - #16 AWG 3-way (remote)
OPERATING TEMPERATURE : 32° to 104°F (0° to 40°C)
