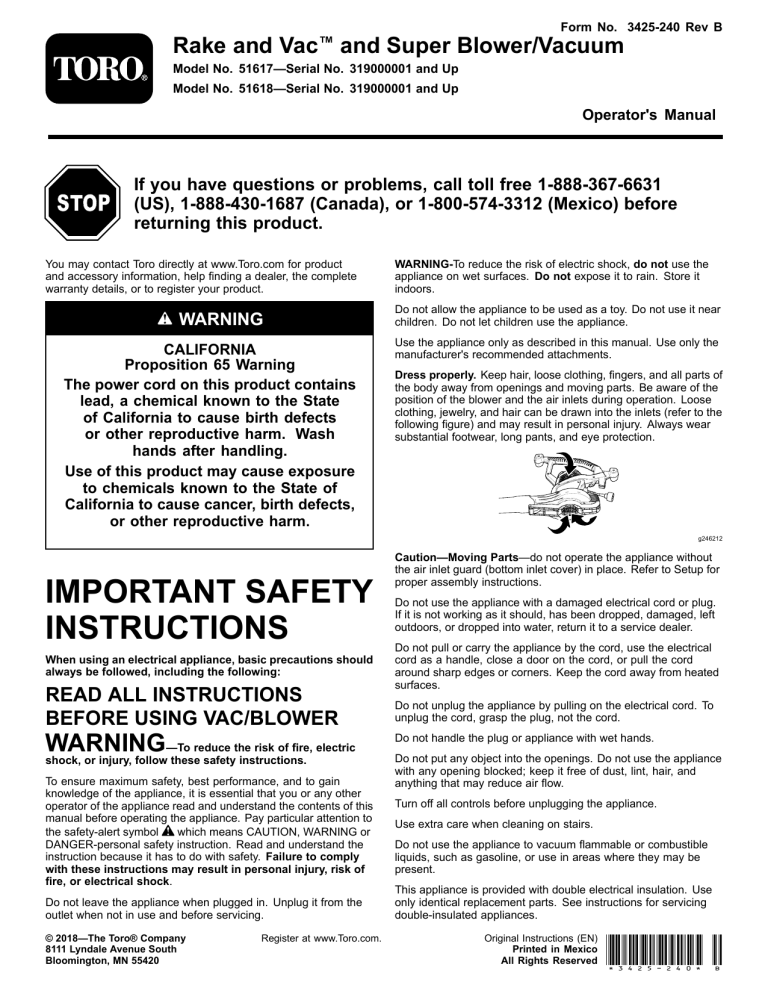

Form No. 3425-240 Rev B
Rake and
Vac™
and Super Blower/Vacuum
Model No. 51617—Serial No. 319000001 and Up
Model No. 51618—Serial No. 319000001 and Up
Operator's Manual
If you have questions or problems, call toll free 1-888-367-6631
(US), 1-888-430-1687 (Canada), or 1-800-574-3312 (Mexico) before
returning this product.
You may contact Toro directly at www.Toro.com for product
and accessory information, help finding a dealer, the complete
warranty details, or to register your product.
WARNING
CALIFORNIA
Proposition 65 Warning
The power cord on this product contains
lead, a chemical known to the State
of California to cause birth defects
or other reproductive harm. Wash
hands after handling.
Use of this product may cause exposure
to chemicals known to the State of
California to cause cancer, birth defects,
or other reproductive harm.
WARNING-To reduce the risk of electric shock, do not use the
appliance on wet surfaces. Do not expose it to rain. Store it
indoors.
Do not allow the appliance to be used as a toy. Do not use it near
children. Do not let children use the appliance.
Use the appliance only as described in this manual. Use only the
manufacturer's recommended attachments.
Dress properly. Keep hair, loose clothing, fingers, and all parts of
the body away from openings and moving parts. Be aware of the
position of the blower and the air inlets during operation. Loose
clothing, jewelry, and hair can be drawn into the inlets (refer to the
following figure) and may result in personal injury. Always wear
substantial footwear, long pants, and eye protection.
g246212
IMPORTANT SAFETY
INSTRUCTIONS
When using an electrical appliance, basic precautions should
always be followed, including the following:
READ ALL INSTRUCTIONS
BEFORE USING VAC/BLOWER
WARNING—To reduce the risk of fire, electric
shock, or injury, follow these safety instructions.
To ensure maximum safety, best performance, and to gain
knowledge of the appliance, it is essential that you or any other
operator of the appliance read and understand the contents of this
manual before operating the appliance. Pay particular attention to
which means CAUTION, WARNING or
the safety-alert symbol
DANGER-personal safety instruction. Read and understand the
instruction because it has to do with safety. Failure to comply
with these instructions may result in personal injury, risk of
fire, or electrical shock.
Do not leave the appliance when plugged in. Unplug it from the
outlet when not in use and before servicing.
© 2018—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at www.Toro.com.
Caution—Moving Parts—do not operate the appliance without
the air inlet guard (bottom inlet cover) in place. Refer to Setup for
proper assembly instructions.
Do not use the appliance with a damaged electrical cord or plug.
If it is not working as it should, has been dropped, damaged, left
outdoors, or dropped into water, return it to a service dealer.
Do not pull or carry the appliance by the cord, use the electrical
cord as a handle, close a door on the cord, or pull the cord
around sharp edges or corners. Keep the cord away from heated
surfaces.
Do not unplug the appliance by pulling on the electrical cord. To
unplug the cord, grasp the plug, not the cord.
Do not handle the plug or appliance with wet hands.
Do not put any object into the openings. Do not use the appliance
with any opening blocked; keep it free of dust, lint, hair, and
anything that may reduce air flow.
Turn off all controls before unplugging the appliance.
Use extra care when cleaning on stairs.
Do not use the appliance to vacuum flammable or combustible
liquids, such as gasoline, or use in areas where they may be
present.
This appliance is provided with double electrical insulation. Use
only identical replacement parts. See instructions for servicing
double-insulated appliances.
Original Instructions (EN)
Printed in Mexico
All Rights Reserved *3425-240* B
Safety and Instructional
Decals
Do not vacuum anything that is burning or smoking, such as
cigarettes, matches, or hot ashes.
Do not use the appliance without the vacuum bag or proper
attachments in place.
Safety decals and instructions are easily
visible to the operator and are located near
any area of potential danger. Replace any
decal that is damaged or missing.
SAVE THESE
INSTRUCTIONS
decal138-6674
138-6674
2
Converting from Blower to
Vacuum
Setup
Register your product at www.Toro.com so that Toro can notify
you in the case of a safety or warranty product recall.
WARNING
The impeller rotates for a few seconds after you turn
off the appliance and can cut or injure fingers.
Do not remove the bottom inlet cover when the motor
is running or when the appliance is plugged into a
power outlet.
g224170
1.
Figure 2
1. Blower tube
3. Upper-vacuum tube
2. Bottom inlet cover
4. Lower-vacuum tube
Remove the bottom inlet cover and the blower tube.
Assembling the Blower
Important:
The motor should not run unless the bottom
inlet cover is locked in place.
Note:
If the motor runs without the bottom inlet cover in place,
do not use the appliance. Return it to an Authorized Service
Dealer.
g227756
2.
Install the blower tube and bottom inlet cover.
Install the vacuum tube and bag.
Important:
The motor should not run unless the
vacuum tube is locked in place.
Note:
If the motor runs without the inlet cover in place, do
not use the appliance. Return it to an Authorized Service
Dealer.
g227713
g227757
3.
3
Adjust the bag strap as needed for comfortable operation.
Converting from Vacuum to
Blower
1.
Operation
Important: This appliance is intended for outdoor,
residential use only. Do not use it indoors or for commercial
or industrial purposes. This appliance is for household use
only.
Remove the vacuum bag and the vacuum tube.
Connecting to a Power
Source
To reduce the risk of electric shock, this appliance has a polarized
plug (i.e., one blade is wider than the other). Use only a polarized,
UL listed (CSA certified in Canada) extension cord recommended
for outdoor use. A polarized plug will fit in a polarized cord only
one way. If the plug does not fit fully in the cord, reverse the cord.
If it still does not fit, purchase a polarized extension cord. If you
have a polarized extension cord and the extension cord plug does
not fit fully into the wall receptacle, reverse the plug. If it still does
not fit, contact a qualified electrician to install the proper outlet. Do
not change the appliance or extension cord plug in any way.
Use only an extension cord recommended for outdoor use.
WARNING
If you do not fully seat the extension cord on the
inlet plug, or if the plug and cord do not fit firmly, the
loose plug could lead to overheating and cause a fire,
possibly burning you or others.
g227758
2.
Install the blower tube and bottom inlet cover.
• Ensure that you fully seat the cord on the plug.
• Check the connection regularly to ensure that the
Important:
The motor should not run unless the
bottom inlet cover is locked in place.
cord is firmly attached.
Note:
If the motor runs without the inlet cover in place, do
not use the appliance. Return it to an Authorized Service
Dealer.
• Do not use a worn-out or loose extension cord.
Extension Cord Length
Minimum Wire Gage
(A.W.G.)
100 ft
14
150 ft
12
Note: Do not use an extension cord over 150 feet.
Important: Check the extension cord frequently during
use for holes or cracks in the insulation. Do not use a
damaged cord. Do not run the cord through standing water
or wet grass.
Secure the extension cord to the appliance using the cord
lock system as shown.
g227759
4
Using the Nozzles
Install the concentrator nozzle into the blower tube to help reach
into narrow spaces or to remove matted debris from hard surfaces.
g224197
1. Extension cord
2. Cord lock
Starting/Stopping/Adjusting
the Air Speed
g021690
1. Blower tube
2. Concentrator nozzle
Using the Appliance as a
Blower
The appliance used a blower is intended for residential use only.
Use the blower outdoors to move debris as needed.
WARNING
Using the appliance as a blower can throw debris,
possibly causing serious personal injury to you or
bystanders.
• Do not blow hard objects such as nails, bolts, or
rocks.
• Do not operate the blower near bystanders or pets.
• Use extra care when cleaning debris from stairs or
other tight areas.
g021689
• Wear safety goggles or other suitable eye
protection, long pants, and shoes.
5
Using the Appliance as a
Vacuum
DANGER
Normal usage of the bag causes it to wear and
deteriorate over time. A worn or deteriorated bag
allows small objects to be thrown through the bag,
possibly injuring you or bystanders.
Using the appliance as a vacuum is intended for residential use
only. Use it outdoors to collect debris as needed.
Check the bag frequently. If it is worn or
deteriorated, replace it with a genuine Toro
vacuum bag.
WARNING
Using the appliance as a vacuum can throw debris,
possibly causing serious personal injury to you or
bystanders.
Separating the Vacuum Tube
• Do not operate the vacuum without the bag installed
or with the bag zipper open.
• Do not vacuum sharp, pointed, or hard objects that
could be thrown through the fabric of the bag, such
as wires, staples, nails, or rocks.
g227719
Removing Clogged Debris
from the Impeller
1.
Turn off and unplug the appliance from the power source
and wait for all moving parts to stop.
2.
Remove the vacuum tube then remove the debris from
impeller blades.
g017098
Important: Vacuum only leaves and soft items. Hard
items such as sticks, rocks, acorns, and pine cones will
damage the impeller.
Important:
Do not force the vacuum tube into a pile of
debris or hold the tube upright while force feeding debris into
the tube. Either action may clog and damage the impeller. If
the vacuum starts to vibrate or make abnormal noise, stop it,
unplug the cord, and check for the cause.
Emptying the Bag
1.
Turn off and unplug the vacuum from the power source.
2.
Empty any debris from the bag.
g227760
g017099
Do not store debris in the bag. To clean the bag, turn it
inside out and shake out any excess debris. Once a year,
hand wash the bag in soapy water and allow it to air dry.
6
3.
Check the impeller for any signs of damage. If it is damaged,
contact your Authorized Service Dealer.
4.
Install the vacuum tube, or, if you want to switch to blower
mode, the bottom inlet cover. Refer to Converting from
Blower to Vacuum (page 3) or Converting from Vacuum to
Blower (page 4) for more information.
Service
Toro has designed this product to give you years of trouble free
use. Should it need service, bring the product to your Authorized
Service Dealer. Your Toro Dealer is specially trained to repair Toro
products and will ensure that your Toro stays “All” Toro.
Double-insulated
Appliances
In a double-insulated appliance, two systems of insulation
are provided instead of grounding. No grounding means is
provided on a double-insulated appliance, nor should a means for
grounding be added to the appliance. Servicing a double-insulated
appliance requires extreme care and knowledge of the system,
and should be done only by the qualified service personnel at
your Authorized Toro Service Dealer. Replacement parts for a
double-insulated appliance must be identical to the parts they
replace. A double-insulated appliance is marked with the words
“Double Insulation” or “Double Insulated.” The symbol (square
may also be marked on the appliance.
within a square)
Storage
Store the appliance and extension cord indoors, in a cool dry
location, out of reach of children and animals.
Troubleshooting
If your blower fails to run when you turn it on, check the following
before contacting your Authorized Service Dealer:
•
Ensure that the bottom inlet cover or vacuum tube is locked in
place.
•
Ensure that the power cord is secured in place at the back of
the appliance and that the plug is fully seated.
7
California Proposition 65 Warning Information
What is this warning?
You may see a product for sale that has a warning label like the following:
WARNING: Cancer and Reproductive Harm—www.p65Warnings.ca.gov.
What is Prop 65?
Prop 65 applies to any company operating in California, selling products in California, or manufacturing products that may be sold in or brought into
California. It mandates that the Governor of California maintain and publish a list of chemicals known to cause cancer, birth defects, and/or other
reproductive harm. The list, which is updated annually, includes hundreds of chemicals found in many everyday items. The purpose of Prop 65 is to
inform the public about exposure to these chemicals.
Prop 65 does not ban the sale of products containing these chemicals but instead requires warnings on any product, product packaging, or literature with
the product. Moreover, a Prop 65 warning does not mean that a product is in violation of any product safety standards or requirements. In fact, the
California government has clarified that a Prop 65 warning “is not the same as a regulatory decision that a product is ‘safe’ or ‘unsafe.’” Many of these
chemicals have been used in everyday products for years without documented harm. For more information, go to https://oag.ca.gov/prop65/faqs-view-all.
A Prop 65 warning means that a company has either (1) evaluated the exposure and has concluded that it exceeds the “no significant risk level”; or (2)
has chosen to provide a warning based on its understanding about the presence of a listed chemical without attempting to evaluate the exposure.
Does this law apply everywhere?
Prop 65 warnings are required under California law only. These warnings are seen throughout California in a wide range of settings, including but not
limited to restaurants, grocery stores, hotels, schools, and hospitals, and on a wide variety of products. Additionally, some online and mail order
retailers provide Prop 65 warnings on their websites or in catalogs.
How do the California warnings compare to federal limits?
Prop 65 standards are often more stringent than federal and international standards. There are various substances that require a Prop 65 warning
at levels that are far lower than federal action limits. For example, the Prop 65 standard for warnings for lead is 0.5 μg/day, which is well below
the federal and international standards.
Why don’t all similar products carry the warning?
•
•
Products sold in California require Prop 65 labelling while similar products sold elsewhere do not.
•
•
The enforcement of Prop 65 is inconsistent.
A company involved in a Prop 65 lawsuit reaching a settlement may be required to use Prop 65 warnings for its products, but other companies
making similar products may have no such requirement.
Companies may elect not to provide warnings because they conclude that they are not required to do so under Prop 65; a lack of warnings for a
product does not mean that the product is free of listed chemicals at similar levels.
Why does Toro include this warning?
Toro has chosen to provide consumers with as much information as possible so that they can make informed decisions about the products they buy and
use. Toro provides warnings in certain cases based on its knowledge of the presence of one or more listed chemicals without evaluating the level of
exposure, as not all the listed chemicals provide exposure limit requirements. While the exposure from Toro products may be negligible or well within the
“no significant risk” range, out of an abundance of caution, Toro has elected to provide the Prop 65 warnings. Moreover, if Toro does not provide these
warnings, it could be sued by the State of California or by private parties seeking to enforce Prop 65 and subject to substantial penalties.
Rev A
Form No. 3389-118 Rev B
Turbo Clear Oscillating Tube
Blower/Vacuum
Model No. 51664
Installation Instructions
Installation
Install the oscillator nozzle onto the blower tube to save time clearing hardscapes. It automatically sweeps
back-and-forth, creating a wider blowing path with less side-to-side wrist movement.
g027397
Note: Remove the oscillator nozzle before using the cord wrap to store the blower.
© 2017—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Register at www.Toro.com.
Original Instructions (EN)
Printed in the USA
All Rights Reserved *3389-118* B
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
