Southwire 30161401 Specification

Southwire 30161401 Specification

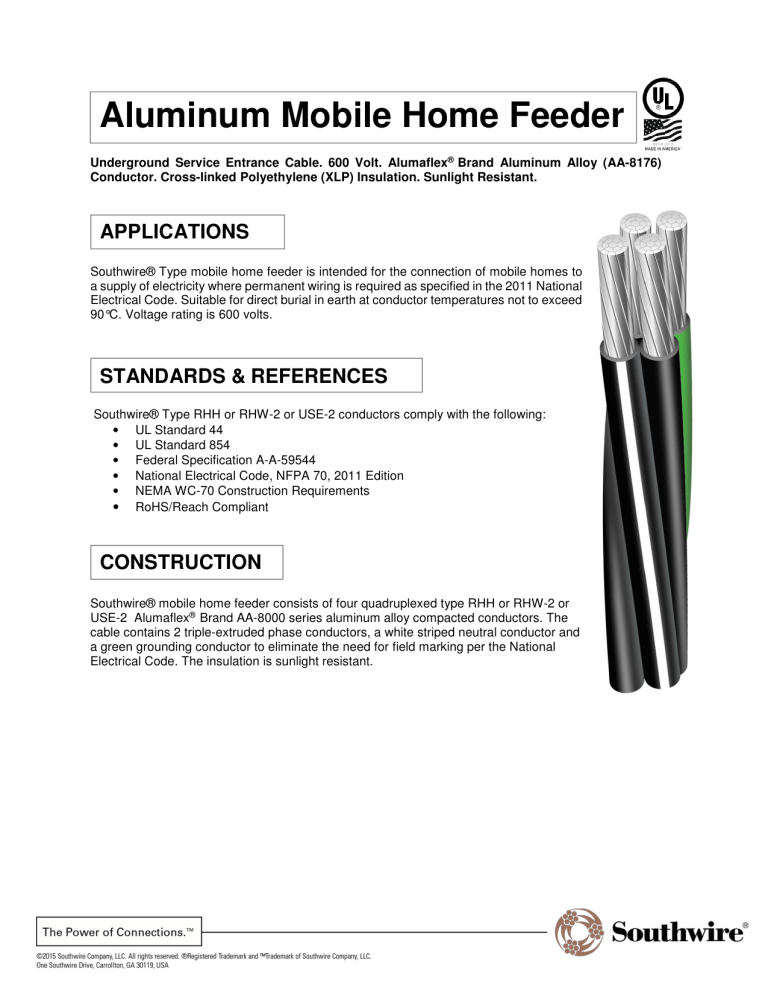

Aluminum Mobile Home Feeder
Underground Service Entrance Cable. 600 Volt. Alumaflex® Brand Aluminum Alloy (AA-8176)
Conductor. Cross-linked Polyethylene (XLP) Insulation. Sunlight Resistant.
APPLICATIONS
Southwire® Type mobile home feeder is intended for the connection of mobile homes to
a supply of electricity where permanent wiring is required as specified in the 2011 National
Electrical Code. Suitable for direct burial in earth at conductor temperatures not to exceed
90°C. Voltage rating is 600 volts.
STANDARDS & REFERENCES
Southwire® Type RHH or RHW-2 or USE-2 conductors comply with the following:
• UL Standard 44
• UL Standard 854
• Federal Specification A-A-59544
• National Electrical Code, NFPA 70, 2011 Edition
• NEMA WC-70 Construction Requirements
• RoHS/Reach Compliant
CONSTRUCTION
Southwire® mobile home feeder consists of four quadruplexed type RHH or RHW-2 or
USE-2 Alumaflex® Brand AA-8000 series aluminum alloy compacted conductors. The
cable contains 2 triple-extruded phase conductors, a white striped neutral conductor and
a green grounding conductor to eliminate the need for field marking per the National
Electrical Code. The insulation is sunlight resistant.
Phase Conductor
Size (AWG)
2-2-4-6
2-2-2-4
2/0-2/0-1-4
2/0-2/0-2/0-1
4/0-4/0-2/0-4
4/0-4/0-4/0-2/0
Strand
Diameter
(Mils)
6
6
18
18
18
18
388
388
536
536
635
635
Neutral Conductor Grounding Conductor
Diameter
Strand
(Mils)
7
6
18
18
18
18
333
333
459
536
536
635
Strand
Diameter
(Mils)
6
4
7
8
7
18
292
333
333
462
333
536
Overall
Cable O.D.
(Mils)
Weight Per
1000' (Lbs)
Ampacity
Standard
Package
937
937
1294
1294
1533
1533
301
345
553
671
784
989
100
100
150
150
200
200
ABC
AB
A
A
ABC
A
Insulation thickness is 60 mils for #4 - 1/0 AWG, 80 mils for 2/0 AWG and larger. For dwelling ampacity use section 310.15
(B)(7).
*For compact-stranded construction, the number of wires, as permitted by UL Standard 44 and ASTM B-801, may be
reduced for 19-wire constructions to 18 wires minimum.
Package Codes
A - 500'
B - 1,000'
C - 2,500'
RECOMMENDED SAMPLE SPECIFICATIONS:
Cable shall be UL-listed Type RHH or RHW-2 or USE-2, suitable for direct burial and operation at 600 volts. Conductors shall be Alumaflex® brand
aluminum alloy as manufactured by Southwire Company or approved equal. The cable shall contain a triple extruded white striped neutral conductor and
a solid green grounding conductor to eliminate the need for field marking per the National Electrical Code.
Phase Conductor Neutral Conductor Grounding Conductor
Strand
Strand
Strand
2-2-4-6
6
7
6
2-2-2-4
6
6
4
2/0-2/0-1-4
18
18
7
2/0-2/0-2/0-1
18
18
8
4/0-4/0-2/0-4
18
18
7
4/0-4/0-4/0-2/0
18
18
18
Size (AWG)
Stock Numbers
Stock #: 301630
Stock #: 287128
Stock #: 301622
Stock #: 287136
Stock #: 301614
Stock #: 287144
