 rr —— ñxzzzí 2 ——
ANZZI

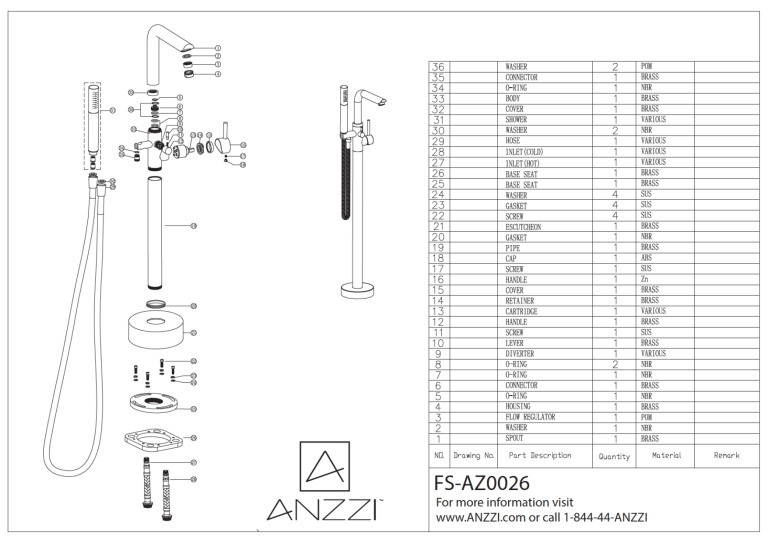

36 WASHER 2 POM
35 CONNECTOR 1 BRASS
34 O-RING 1 NBR
33 BODY 1 BRASS
32 COVER 1 BRASS
31 SHOWER 1 VARIOUS
30 WASHER 7 NBR
29 HOSE 1 VARIOUS
28 INLET (COLD) 1 VARIOUS
27 INLET (HOT) 1 VARIOUS
26 BASE SEAT 1 BRASS
25 BASE SEAT 1 BRASS
24 WASHER 4 SUS
23 GASKET 4 SUS
22 SCREW 4 SUS
21 ESCUTCHEON 1 BRASS
20 GASKET 1 NBR
19 PIPE 1 BRASS
18 CAP 1 ABS
17 SCREW 1 SUS
16 HANDLE 1 Zn
15 COVER 1 BRASS
14 RETAINER 1 BRASS
13 CARTRIDGE 1 VARIOUS
12 HANDLE 1 BRASS
11 SCREW 1 SUS
10 LEVER 1 BRASS
9 DIVERTER 1 VARIOUS
8 O-RING 2 NBR
7 O-RING 1 NBR
6 CONNECTOR 1 BRASS
5 O-RING 1 NBR
4 HOUSING 1 BRASS
3 FLOW REGULATOR 1 POM
2 WASHER 1 NBR
1 SPOUT 1 BRASS
NO. | Drawing No. Part Description Quantity Material Remark
FS-AZ0026
For more information visit
www.ANZZl.com or call 1-844-44-ANZZI
157
[6.1/7]
2150
[5.917]
UNIT:
1/2-14NPI
mm [inch]
197
[7,7 7°]
936
L3/.65]
[36.07]
33
[1.297]
118
[4.64]
со 0
DD
С°
