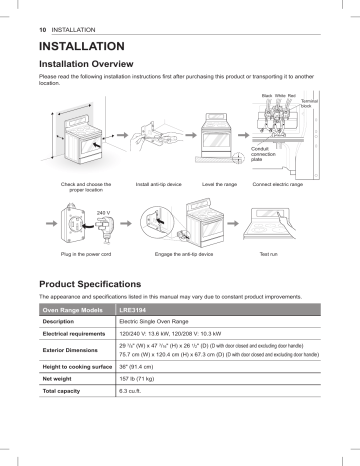

Installation Overview
Please read the following installation instructions first after purchasing this product or transporting it to another
location.
Black White Red
Terminal
block
Conduit
connection
plate
Check and choose the
proper location
Install anti-tip device
Level the range
Connect electric range
240 V
Plug in the power cord
Engage the anti-tip device
Test run
Product Specifications
The appearance and specifications listed in this manual may vary due to constant product improvements.
Oven Range Models
LRE3194
Description
Electric Single Oven Range
Electrical requirements
120/240 V: 13.6 kW, 120/208 V: 10.3 kW
Exterior Dimensions
29 7/8" (W) x 47 7/16" (H) x 26 1/2" (D) (D with door closed and excluding door handle)
75.7 cm (W) x 120.4 cm (H) x 67.3 cm (D) (D with door closed and excluding door handle)
Height to cooking surface
36" (91.4 cm)
Net weight
157 lb (71 kg)
Total capacity
6.3 cu.ft.
INSTALLATION 11
If you did not receive an anti-tip bracket with your
purchase, call 1-800-243-0000 (1-888-542-2623 in
CANADA) to receive one at no cost.
Warning
Warning
Tip - Over Hazard
•• The information in this manual should be
followed exactly. Failure to do so may result
in fire, electrical shock, property damage,
personal injury, or death.
A child or adult can tip the range and
be killed. Verify the anti-tip bracket
has been installed. Ensure the
anti-tip bracket is engaged when the
range is moved.
Do not operate the range without the
anti-tip bracket in place. Failure to
follow these instructions can result
in death or serious burns to children
and adults.
To check that leveling leg is
inserted into anti-tip bracket,
grasp the top rear edge
of the range and carefully
Anti-tip
attempt to tilt it forward.
bracket
•• Wear gloves during the installation
procedure. Failure to do so can result in bodily
injury.
Leveling
leg
Tools Needed
Phillips screwdriver
Flat-blade screwdriver
Level
Adjustable wrench
Parts Provided
Template (1)
Anchor sleeves (4)
1/4"
Nut driver
Drill
Pliers
Tape measure
Safety glasses
Gloves
Parts not Provided
Anti-tip bracket kit (1)
4-Wire cord or
3-Wire cord
(UL approved 40 or 50
AMP)
Strain relief
(For conduit
Installations only)
Lag bolts (4)
NOTE
•• Observe all governing codes and ordinances.
•• Have the installer show you the location of the circuit breaker or fuse. Mark it for easy reference.
•• As when using any appliance generating heat, there are certain safety precautions you should follow.
•• Be sure your range is installed and grounded properly by a qualified installer or service technician.
ENGLISH
Before Installing the Range
12 INSTALLATION
Installing the Range
Unpacking and Moving the Range
CAUTION
•• You should use two or more people to move
and install the range. (Excessive Weight
Hazard) Failure to do so can result in back or
other injury.
•• Do not use the door handles to push or
pull the range during installation or when
moving the range out for cleaning or
service. Doing so can result in serious damage
to the door of the range.
Remove packing material, tape and any temporary
labels from your range before using. Do not remove
any warning-type labels, the model and serial number
label, or the Tech Sheet that is located on the back of
the range.
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can also
be easily removed by rubbing a small amount of liquid
dish soap over the adhesive with your fingers. Wipe
with warm water and dry.
Do not use sharp instruments, rubbing alcohol,
flammable fluids, or abrasive cleaners to remove tape
or glue. These products can damage the surface of
your range.
Your range is heavy and can be installed on soft
floor coverings such as cushioned vinyl or carpeting.
Use care when moving the range on this type of
flooring. Use a belt when moving the range to prevent
damaging the floor. Or slide the range onto cardboard
or plywood to avoid damaging the floor covering.
Choosing the Proper Location
CAUTION
•• Avoid placing cabinets above the range. To
minimize the hazard caused by reaching over
the open flames of operating burners, install a
ventilation hood over the range that projects
forward at least five inches beyond the front of
the cabinets.
•• Make sure wall covering, countertop and
cabinets around the range can withstand
the heat (up to 194 °F) generated by the
range. Discoloration, delamination or melting
may occur. This range has been designed to
comply with the maximum allowable wood
cabinet temperature of 194 °F.
•• Before installing the range in an area
covered with linoleum or other synthetic
floor covering, make sure the floor covering
can withstand temperatures of at least
200 °F (93 °C).
•• Use an insulated pad or 1/4 in. (0.64 cm)
plywood under the range if installing the
range over carpeting.
The range should always be plugged into its own
individual properly grounded electrical outlet. This
prevents overloading house wiring circuits which
could cause a fire hazard from overheated wires. It is
recommended that a separate circuit serving only this
appliance be provided.
Mobile Home - Additional Installation
Requirements
The installation of this range must conform to the
Manufactured Home Construction and Safety
Standard, Title 24 CFR, Part 3280 (formerly the
Federal Standard for Mobile Home Construction
and Safety, Title 24, HUD Part 280), or when
such standard is not applicable, the Standard for
Manufactured Home Installations, ANSI A225.1/NFPA
501A or with local codes.
•• When this range is installed in a mobile home, it
must be secured to the floor during transit. Any
method of securing the range is adequate as long
as it conforms to the standards listed above.
•• A four-wire power supply cord or cable must be
used in a mobile home installation.
INSTALLATION 13
ENGLISH
Dimensions and Clearances
NOTE
Save for the use of the local electrical inspector.
3" (7.6 cm)
24"
(60.9 cm)
Acceptable
electrical
outlet area
3" (7.6 cm)
25"
(63.5 cm)
Normal counter
top depth
Counter
36"
(91.4 cm) top height
Cabinet
opening
24"
(60.9 cm)
36"
(91.4 cm)
29.8"
(75.7 cm)
A = 30" (76.2 cm) For U.S.A
= 30" (76.2 cm) ~ 31" (78.7 cm) For CANADA
For installation in Canada, a free-standing range is not to be installed closer than 15/32" (12 mm) from any
adjacent surface.
30"
(76.2 cm)
*30" (76.2 cm)
Minimum
**15"
(38.1 cm)
36"
(91.4 cm)
Minimum Dimensions
* 30" (76.2 cm) minimum clearance between the top of the cooking surface and the bottom of an unprotected
wood or metal cabinet; or 24" (60.9 cm) minimum when bottom of wood or metal cabinet is protected by not less
than 1/4" (6.4 cm) flame retardant millboard covered with not less than no. 28 MSG sheet steel, 0.015" (0.381 mm)
stainless steel, 0.024" (0.610 mm) aluminum or 0.020" (0.508 mm) copper.
** 15" (38.1 cm) minimum between countertop and adjacent cabinet bottom.
14 INSTALLATION
Installing the Anti-tip Device
Use a level to check your adjustments. Place the level
diagonally on the oven rack, and check each direction
for level.
Warning
Tip - Over Hazard
First check direction .
A child or adult can tip the range and
be killed. Verify the anti-tip bracket
has been installed. Ensure the anti-tip
bracket is engaged when the range
is moved. Do not operate the range
without the anti-tip bracket in place.
Failure to follow these instructions
can result in death or serious burns to
children and adults.
Then check direction . If the level doesn’t show level
on the rack, adjust the leveling legs with a wrench.
To check that leveling leg is
inserted into anti-tip bracket,
grasp the top rear edge
of the range and carefully
Anti-tip
attempt to tilt it forward.
bracket
Anti-tip
bracket
2
1
Leveling
leg
Wall plate
Screw must
enter wood or
concrete
Locate the anti-tip bracket using the template
An anti-tip bracket is packaged with the template.
The instructions include necessary information to
complete the installation. Read and follow the range
installation instruction sheet (template).
Leveling the Range
Level the range by adjusting the leveling legs with a
wrench. Extending the legs slightly may also make it
easier to insert the rear leg into the anti-tip bracket.
Connecting Electricity
Electrical Requirements
This appliance must be installed and grounded on a
branch circuit by a qualified technician in accordance
with the National Electrical code ANSI/NFPA NO. 70 latest edition.
All wiring should conform to Local and NEC codes.
This range requires a single-phase, 3 wire, A.C
120/208 V or 120/240 V 60 Hz electrical system. Use
only a 3-conductor or a 4-conductor UL - listed range
cord with closed-loop terminals, open-end spade
lugs with upturned ends or similar termination. Do not
install the power cord without a strain relief.
A range cord rated at 40 amps with 120/240
minimum volt range is required. If a 50 amp range
cord is used, it should be marked for use with 13/8"
diameter connection openings. This appliance
may be connected by means of a conduit or power
cord. If a conduit is being used, go to page 17 for
3 wire conduit connections or 4 wire conduit
connections.
INSTALLATION 15
•• Allow 2 to 3 ft (61.0 cm to 91.4 cm) of slack
in the line so that the range can be moved if
servicing is ever necessary.
•• The power supply cord and plug should
not be modified. If it will not fit the outlet,
have a proper outlet Installed by a qualified
electrician.
Use the cord/conduit connection plate to install the
power cord or conduit. Leave the connection plate
as installed for power cord installations. Remove the
connection plate for conduit installations and use the
smaller 11/8 in. (2.8 cm) conduit hole instead of the
13/8 in. (3.5 cm) power cord hole.
11/8" (2.8 cm) Conduit
•• Using an extension cord to connect the
power is prohibited. Connect the power
cord and plug directly.
•• Electrical ground is required on this
appliance.
13/8" (3.5 cm) Cord
•• Make sure that the power cord is not
pinched by the range or heavy objects.
Failure to do so can result in serious burns or
electrical shock.
Specified power-supply-cord kit rating
Range rating, watts
Remove the Conduit connection plate
For power cord installations, hook the strain relief
over the 13/8 in. (3.5 cm) power cord hole located
below the rear of the oven. Insert the power cord
through the strain relief and tighten it.
Diameter (inches)
of Range
connection
Opening
Specified
rating of
power
supplycord kit,
amperes
Power
cord
Conduit
120/240
volts
120/208
volts
3-wire
3-wire
8,750 16,500
7,801 12,500
40 or 50A
1 3/8"
1 1/8"
16,501 22,500
12,501 18,500
50
1 3/4"
1 3/8"
3, 4 - Wire electrical wall Receptacle
Conduit
connection
plate
Power cord
Assembling power cord strain relief at the 13/8" opening
For conduit installations, insert the conduit strain
relief in the 11/8 in. (2.8 cm) conduit hole. Then install
the conduit through the body of the strain relief and
fasten the strain relief with its ring.
4 Wire receptacle (14-50R)
Cord/
Conduit
connection
plate
3 Wire receptacle (10-50R)
Ring
Connecting the Power Cord
The rear access cover must be removed. Loosen the
two screws with a screwdriver. The terminal block will
then be accessible.
Access cover
Body
Conduit
Assembling conduit cord strain relief at the 11/8" opening
ENGLISH
Warning
16 INSTALLATION
3-Wire Connection : Power Cord
4-Wire Connection : Power Cord
Warning
Warning
•• The middle (neutral or ground) wire, which
is white, of a 3-wire power cord or a 3-wire
conduit has to be connected to the middle
post of the main terminal block. The
remaining two wires of the power cord or
conduit have to be connected to the outside
posts of the main terminal connection block.
Failure to do so can result in electrical shock,
severe personal injury or death.
Install the power cord as follows:
For power cord installations, hook the strain relief
over the power cord hole (13/8") located below the
rear of the oven. Insert the power cord through the
strain relief and tighten it.
Do not install the power cord without a strain
relief.
1
Remove the lower 3 screws from the terminal
block and retain them.
2
Insert the 3 screws through each power cord
terminal ring and into the lower terminals of
the terminal block. Make sure that the center
(neutral) wire, which is white, is connected to the
center lower position of the terminal block.
3
Tighten the 3 screws securely into the terminal
block. Do not remove the ground strap
connections.
•• Only a 4-conductor power-supply cord
kit rated 120/240 volts, 50 amperes and
marked for use with ranges with closedloop connectors or opened spade lugs with
upturned ends shall be used.
The white middle (neutral) wire of the power
cord or 4-wire conduit has to be connected
to the middle post of the main terminal
block. The other two wires of the power
cord or conduit have to be connected to
the outside posts of the main terminal
connection block. The 4th ground wire
(green) must be connected to the frame of
the range with the ground screw. Failure
to do so can result in electrical shock, severe
personal injury or death.
Install the power cord as follows:
Do not install the power cord without a strain
relief.
1
Remove the lower 3 screws from the terminal
block and retain them.
2
Remove the ground screw and bend the end of
the ground strap up so the slot is over the hole
of the center screw removed in step 1.
3
Insert the ground screw into the power cord
ground wire (green) terminal ring and secure it to
the range frame.
4
Insert the 3 screws through each power cord
terminal ring and into the lower terminals of the
terminal block. Make sure that the white center
(neutral) wire is connected to the center lower
position of the terminal block.
5
Tighten the 3 screws securely into the terminal
block. The center screw now attaches the bent
up ground strap to the block.
3-wire connection
Black White Red
Terminal
block
4-wire connection
Black White Red
Terminal
block
Conduit
connection plate
If screws are not tightened securely, it can result in
electrical spark and severe personal injury or death.
Ground
strap
Bend strap up
and attach
Ground
screw
Conduit
connection plate
If screws are not tightened securely, it can result in
electrical spark and severe personal injury or death.
INSTALLATION 17
4-Wire Connection: Conduit
Install the conduit as follows:
Remove the conduit connection plate from the rear of
the oven and rotate it. The conduit hole (11/8") must
be used.
First, prepare the conduit wires as shown below.
3-Wire
Conduit
connection
plate
4-Wire
or
Ground
wire
Second, install the conduit strain relief.
For conduit installations, purchase a strain relief and
insert it in the 11/8 in. (2.8 cm) conduit hole. Then
install the conduit through the body of the strain relief
and fasten the strain relief with its ring. Reinstall the
bracket.
For conduit connections:
If the wire in the conduit is copper it must be 8 or 10
AWG wiring.
If the wire in the conduit is aluminum it must be 6 or 8
AWG wiring.
1
Loosen the lower 3 screws from the terminal
block.
2
Insert the bare wire (white/neutral) end through
the center terminal block opening. Do not
remove the ground strap connections.
3
Insert the two side bare wire ends into the lower
left and the lower right terminal block openings.
Tighten the 3 screws securely into the terminal
block. (approximately 35 - 50 IN-LB)
3-wire connection
Warning
•• The white middle (neutral) wire of the power
cord or 4-wire conduit has to be connected
to the middle post of the main terminal
block. The other two wires of the power
cord or conduit have to be connected to
the outside posts of the main terminal
connection block. The 4th ground wire
(green) must be connected to the frame of
the range with the ground screw. Failure
to do so can result in electrical shock, severe
personal injury or death.
1
2
3
4
5
6
Follow the instructions for installing the conduit
under 3-Wire Connection: Conduit until the strain
relief and bracket are installed. Do not install the
conduit without a strain relief.
Loosen the 2 lower left and right screws from
the terminal block. Remove the lower 2 center
screws. Do not discard any screws.
Remove the ground screw and bend the end of
the ground strap up so the slot is over the hole
of the center screw removed in step 1.
Attach the ground (green) bare wire end to
the range frame and secure it in place with the
ground screw.
Insert the bare wire (white/neutral) end through the
center terminal block opening. The center screw
now attaches the bent up ground strap to the block.
Insert the two side bare wire ends into the left
and the right terminal block openings. Tighten
the 3 screws securely into the terminal block.
(approximately 35 - 50 IN-LB)
4-wire connection
Black White Red
Terminal
block
Ground
strap
Wire
ends
Black White Red
Terminal
block
Wire
ends
Conduit
connection plate
If screws are not tightened securely, it can result in
electrical spark and severe personal injury or death.
Bend strap
up and
attach
Conduit
connection
plate
Ground
screw
Ground
wire
If screws are not tightened securely, it can result in
electrical spark and severe personal injury or death.
ENGLISH
3-Wire Connection: Conduit
18 INSTALLATION
Engaging the Anti-tip Device
Test Run
•• Move the range close enough to the opening to
plug into the receptacle.
Check if the range is properly installed and run a test
cycle.
•• Slide the range into position ensuring that the back
leg slides under the anti-tip bracket. The range
should sit flush against the back wall when properly
installed.
1
Press Clear/Off to start test.
2
Turn on each burner to the Hi setting to check
that the surface heating elements are working
properly. The elements should glow red and
radiate heat, and they should cycle on and off
periodically even when the setting is in the Hi
position. This cycling prevents the glass-ceramic
from being cracked by thermal shock.
IMPORTANT : The warming zone does not
consume enough power to glow red.
3
After checking all the surface heating elements,
check the locking system by pressing Clear/Off
for three seconds. The oven door should lock
and the cooktop should not operate while the
Lockout function is turned on. Press Clear/Off
for three seconds to disable Lockout.
The Lockout function should disable controls for
the oven and cooktop.
4
Now check the oven's operation. Press Bake
and press the number keys to set the oven
temperature to 350 °F.
5
The oven should finish preheating in 15 minutes,
and the convection fan should operate while the
oven is preheating.
6
After checking the oven's operation, turn the
temperature up to 450 °F and leave the oven on
for at least an hour to help remove any oil which
might cause smoke and odors when first using
the oven.
•• Carefully attempt to tip the range forward to ensure
that the anti-tip bracket is engaged properly. If
properly installed, the anti-tip bracket will prevent
the range from being tipped. If the range can be
tipped, reinstall the range until the anti-tip bracket is
properly installed and the range will not tip forward.
•• Turn on electrical power. Check the range for
proper operation.
NOTE
Smoke may come out of the range when it is first
used.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
