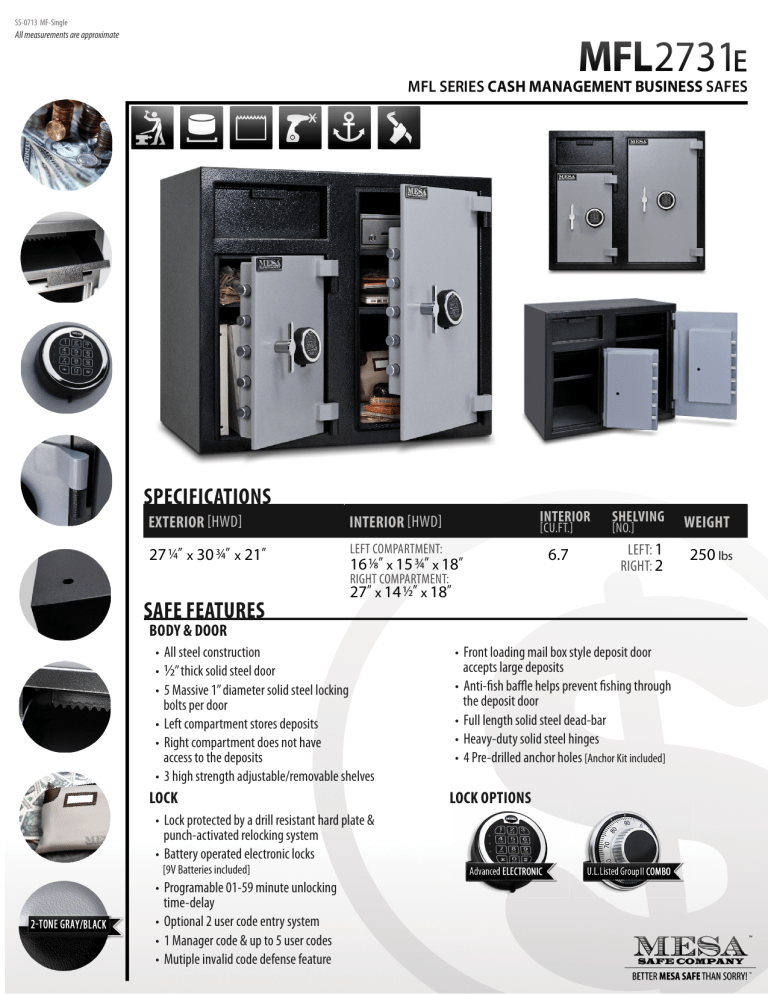

MESA MFL2731EECSD Specification

MESA MFL2731EECSD Specification
SS-0713 MF-Single
All measurements are approximate
SPECIFICATIONS
EXTERIOR [HWD]
27 ¼” x 30 ¾” x 21”
INTERIOR [HWD]
INTERIOR
SHELVING
[CU.FT.]
[NO.]
LEFT COMPARTMENT:
6.7
16 1⁄8” x 15 ¾” x 18”
RIGHT COMPARTMENT:
LEFT: 1
RIGHT: 2
27” x 14 ½” x 18”
SAFE FEATURES
BODY & DOOR
• All steel construction
• ½” thick solid steel door
• 5 Massive 1” diameter solid steel locking
bolts per door
• Left compartment stores deposits
• Right compartment does not have
access to the deposits
• 3 high strength adjustable/removable shelves
LOCK
• Lock protected by a drill resistant hard plate &
punch-activated relocking system
• Battery operated electronic locks
[9V Batteries included]
• Programable 01-59 minute unlocking
time-delay
• Optional 2 user code entry system
• 1 Manager code & up to 5 user codes
• Mutiple invalid code defense feature
• Front loading mail box style deposit door
accepts large deposits
• Anti-fish baffle helps prevent fishing through
the deposit door
• Full length solid steel dead-bar
• Heavy-duty solid steel hinges
• 4 Pre-drilled anchor holes [Anchor Kit included]
LOCK OPTIONS
WEIGHT
250 lbs
