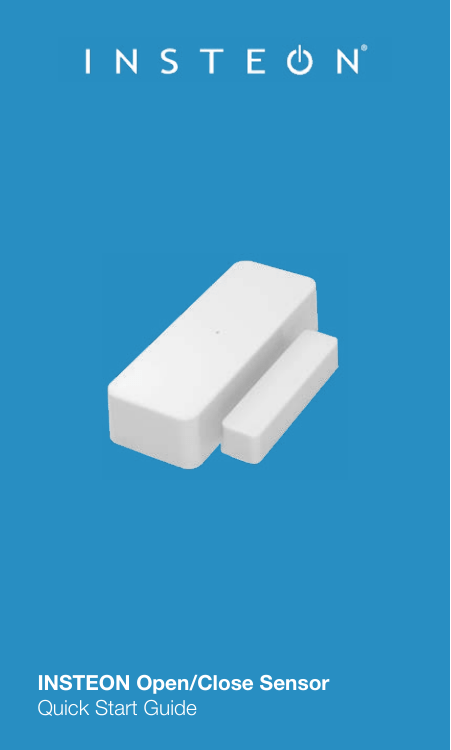

INSTEON Open/Close Sensor
Quick Start Guide
INSTEON Open/Close Sensor
Set Button
Status LED
Magnet
Set Button
AA Battery
(Included)
(Cover Removed)
Sensor Placement
1
Peel off the tape backing and mount the
sensor and magnet to a window or door.
2
Position the sensor so that the arrows
on the magnet and sensor enclosure
align and are no more than ½” apart.
1
Up to ½”
2
Linking to the Hub
1
Follow the on-screen instructions to
add your Open/Close Sensor to the
INSTEON Hub.
+
!
If not using the Hub, refer to the
instructions that came with your product.
NEW
2
When prompted, press and hold the
Open/Close Sensor’s set button until the
status LED begins blinking.
Tap the set button. The status LED
will double-blink.
X
Configure Alerts
To receive email and text message alerts when
motion is detected, switch on alerts from
device settings within the INSTEON app.
!
Learn More
For the complete Owner’s Manual, video
tutorials, product support and more, visit:
insteon.com/support
MANUAL
Protected under U.S. and foreign patents (see www.insteon.com/patents)
©2014 INSTEON
RAW-1298 Rev 03.27.14
