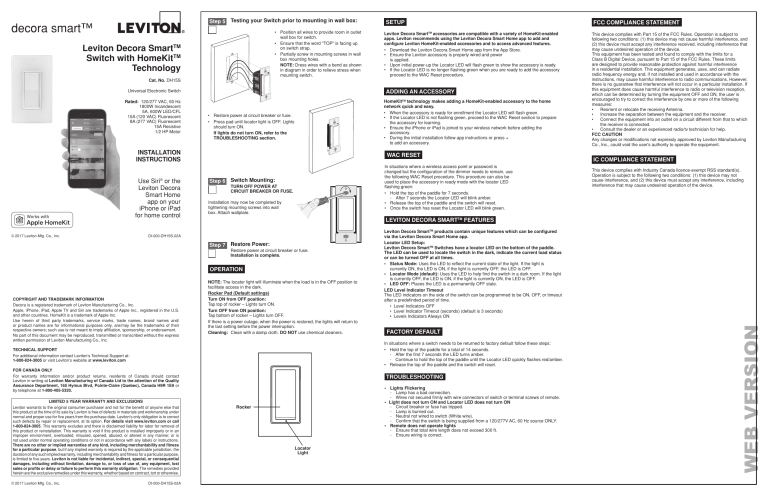

Step 5 Testing your Switch prior to mounting in wall box:
• Position all wires to provide room in outlet
wall box for switch.
• Ensure that the word "TOP" is facing up
on switch strap.
• Partially screw in mounting screws in wall
box mounting holes.
NOTE: Dress wires with a bend as shown
in diagram in order to relieve stress when
mounting switch.
Leviton Decora SmartTM
Switch with HomeKitTM
Technology
SETUP
Leviton Decora SmartTM accessories are compatible with a variety of HomeKit-enabled
apps. Leviton recommends using the Leviton Decora Smart Home app to add and
configure Leviton HomeKit-enabled accessories and to access advanced features.
• Download the Leviton Decora Smart Home app from the App Store.
• Ensure the Leviton accessory is properly wired and power
is applied.
• Upon initial power-up the Locator LED will flash green to show the accessory is ready.
• If the Locator LED is no longer flashing green when you are ready to add the accessory
proceed to the WAC Reset procedure.
Cat. No. DH15S
Universal Electronic Switch
Rated: 120/277 VAC, 60 Hz
1800W Incandescent
5A, 600W LED/CFL
15A (120 VAC) Fluorescent
8A (277 VAC) Fluorescent
15A Resistive
1/2 HP Motor
ADDING AN ACCESSORY
HomeKitTM technology makes adding a HomeKit-enabled accessory to the home
network quick and easy.
• When the accessory is ready for enrollment the Locator LED will flash green.
• If the Locator LED is not flashing green, proceed to the WAC Reset section to prepare
the accessory for learning.
• Ensure the iPhone or iPad is joined to your wireless network before adding the
accessory.
• During the initial installation follow app instructions or press +
to add an accessory.
• Restore power at circuit breaker or fuse.
• Press pad until locator light is OFF. Lights
should turn ON.
If lights do not turn ON, refer to the
TROUBLESHOOTING section.
INSTALLATION
INSTRUCTIONS
Use Siri® or the
Leviton Decora
Smart Home
app on your
iPhone or iPad
for home control
© 2017 Leviton Mfg. Co., Inc.
WAC RESET
In situations where a wireless access point or password is
changed but the configuration of the dimmer needs to remain, use
the following WAC Reset procedure. This procedure can also be
used to place the accessory in ready mode with the locator LED
flashing green:
• Hold the top of the paddle for 7 seconds.
- After 7 seconds the Locator LED will blink amber.
• Release the top of the paddle and the switch will reset.
• Once the switch has reset the Locator LED will blink green.
Step 6 Switch Mounting:
TURN OFF POWER AT
CIRCUIT BREAKER OR FUSE.
Installation may now be completed by
tightening mounting screws into wall
box. Attach wallplate.
Step 7 Restore Power:
Restore power at circuit breaker or fuse.
Installation is complete.
OPERATION
NOTE: The locator light will illuminate when the load is in the OFF position to
facilitate access in the dark.
Rocker Pad (Default settings)
Turn ON from OFF position:
Tap top of rocker – Lights turn ON.
Turn OFF from ON position:
Tap bottom of rocker – Lights turn OFF.
If there is a power outage, when the power is restored, the lights will return to
the last setting before the power interruption.
Cleaning: Clean with a damp cloth. DO NOT use chemical cleaners.
FOR CANADA ONLY
For warranty information and/or product returns, residents of Canada should contact
Leviton in writing at Leviton Manufacturing of Canada Ltd to the attention of the Quality
Assurance Department, 165 Hymus Blvd, Pointe-Claire (Quebec), Canada H9R 1E9 or
by telephone at 1-800-405-5320.
© 2017 Leviton Mfg. Co., Inc.
DI-000-DH15S-02A
IC COMPLIANCE STATEMENT
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Leviton Decora SmartTM products contain unique features which can be configured
via the Leviton Decora Smart Home app.
Locator LED Setup:
Leviton Decora SmartTM Switches have a locator LED on the bottom of the paddle.
The LED can be used to locate the switch in the dark, indicate the current load status
or can be turned OFF at all times.
• Status Mode: Uses the LED to reflect the current state of the light. If the light is
currently ON, the LED is ON, if the light is currently OFF, the LED is OFF.
• Locator Mode (default): Uses the LED to help find the switch in a dark room. If the light
is currently OFF, the LED is ON, if the light is currently ON, the LED is OFF.
• LED OFF: Places the LED is a permanently OFF state.
LED Level Indicator Timeout
The LED indicators on the side of the switch can be programmed to be ON, OFF, or timeout
after a predefinded period of time.
• Level Indicators OFF
• Level Indicator Timeout (seconds) (default is 3 seconds)
• Levels Indicators Always ON
FACTORY DEFAULT
In situations where a switch needs to be returned to factory default follow these steps:
• Hold the top of the paddle for a total of 14 seconds.
- After the first 7 seconds the LED turns amber.
- Continue to hold the top of the paddle until the Locator LED quickly flashes red/amber.
• Release the top of the paddle and the switch will reset.
TECHNICAL SUPPORT
For additional information contact Leviton’s Technical Support at:
1-800-824-3005 or visit Leviton’s website at www.leviton.com
LIMITED 5 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that
this product at the time of its sale by Leviton is free of defects in materials and workmanship under
normal and proper use for five years from the purchase date. Leviton’s only obligation is to correct
such defects by repair or replacement, at its option. For details visit www.leviton.com or call
1-800-824-3005. This warranty excludes and there is disclaimed liability for labor for removal of
this product or reinstallation. This warranty is void if this product is installed improperly or in an
improper environment, overloaded, misused, opened, abused, or altered in any manner, or is
not used under normal operating conditions or not in accordance with any labels or instructions.
There are no other or implied warranties of any kind, including merchantability and fitness
for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the
duration of any such implied warranty, including merchantability and fitness for a particular purpose,
is limited to five years. Leviton is not liable for incidental, indirect, special, or consequential
damages, including without limitation, damage to, or loss of use of, any equipment, lost
sales or profits or delay or failure to perform this warranty obligation. The remedies provided
herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
This device complies with Part 15 of the FCC Rules. Operation is subject to
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation of the device.
This equipment has been tested and found to comply with the limits for a
Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment OFF and ON, the user is
encouraged to try to correct the interference by one or more of the following
measures:
•
Reorient or relocate the receiving Antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
•
Consult the dealer or an experienced radio/tv technician for help.
FCC CAUTION
Any changes or modifications not expressly approved by Leviton Manufacturing
Co., Inc., could void the user's authority to operate the equipment.
LEVITON DECORA SMARTTM FEATURES
DI-000-DH15S-02A
COPYRIGHT AND TRADEMARK INFORMATION
Decora is a registered trademark of Leviton Manufacturing Co., Inc.
Apple, iPhone, iPad, Apple TV and Siri are trademarks of Apple Inc., registered in the U.S.
and other countries. HomeKit is a trademark of Apple Inc.
Use herein of third party trademarks, service marks, trade names, brand names and/
or product names are for informational purposes only, are/may be the trademarks of their
respective owners; such use is not meant to imply affiliation, sponsorship, or endorsement.
No part of this document may be reproduced, transmitted or transcribed without the express
written permission of Leviton Manufacturing Co., Inc.
FCC COMPLIANCE STATEMENT
TROUBLESHOOTING
• Lights Flickering
- Lamp has a bad connection.
- Wires not secured firmly with wire connectors of switch or terminal screws of remote.
• Light does not turn ON and Locator LED does not turn ON
- Circuit breaker or fuse has tripped.
- Lamp is burned out.
- Neutral not wired to switch (White wire).
- Confirm that the switch is being supplied from a 120/277V AC, 60 Hz source ONLY.
• Remote does not operate lights
- Ensure that total wire length does not exceed 300 ft.
- Ensure wiring is correct.
Rocker
Locator
Light
