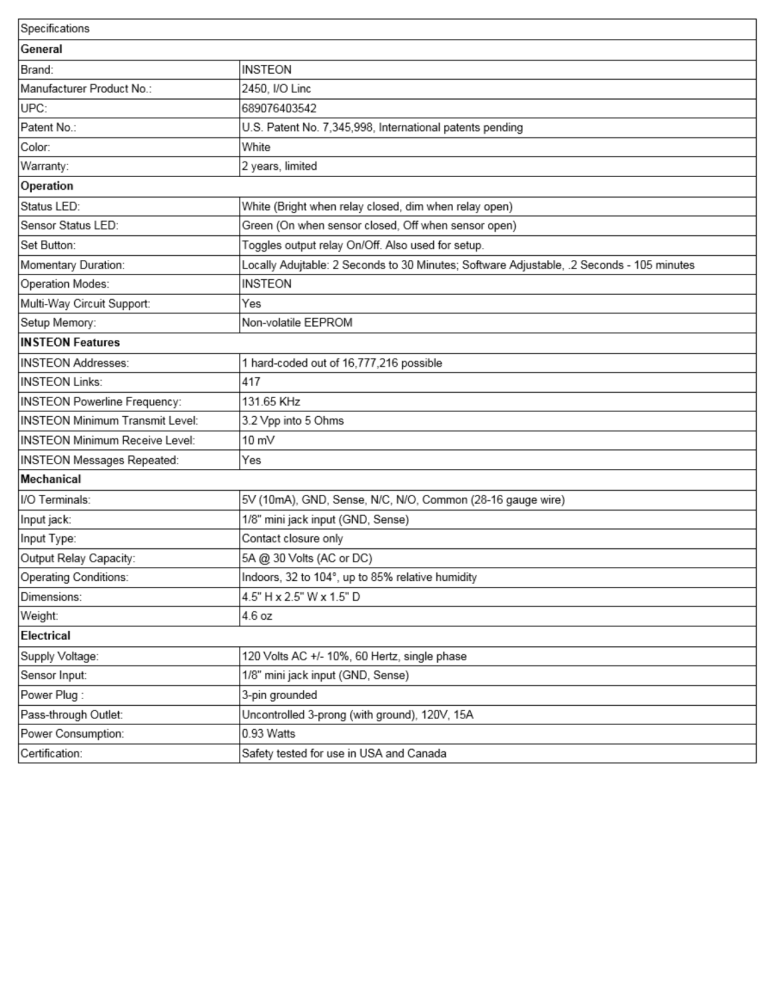

 Specifications
General
Brand: INSTEON
Manufacturer Product No: 2450. МО Linc
UPC: 669076403547
Patent No: U.S. Patent No. 7,345,995, International patents pending
Color: White
Warranty: 2 years, limited
Operation
Status LED: White (Bright when relay closed, dim when relay open)
Sensor Status LED: Green (On when sensor closed, Off when sensor open)
Set Button: Toggles output relay On/Off. Álso used for setup.
Momentary Duration:
Locally Adujtable: 2 Seconds to 30 Minutes; Software Adjustable, 2 Seconds - 105 minutes
Operation Modes:
INSTEON
Mult-VVay Cireuit Support:
Yes
setup Memory:
Non-volatiie EEPROM
INSTEON Features
INSTEON Addresses:
1 hard-coded out of 16,777,216 possible
INSTEON Links: 417
INSTEON Powerline Frequency: 131.65 KHz
INSTEON Minimum Transmit Level. 3.2 Vpp into 5 Ohms
INSTEON Minimum Receive Level: 10 mV
INSTEON Messages Repeated: Yes
Mechanical
IO Terminals:
SV (10mA), GND, Sense, N/C. N/O, Common (28-16 gauge wire)
Input jack:
1/8" mini jack input (GND, Sense)
Input Type:
Contact closure only
Cutput Relay Capacity:
5A @ 30 Volts (AC or DC)
Operating Conditions:
Indoors, 32 to 104°, up to 85% relative humidity
Dimensions: 45 Hx25 Wx15D
Weight: 46 oz
Electrical
Supply Voltage: 120 Volts AC +/- 10%, 60 Hertz, single phase
Sensor Input:
1/8" mini jack input (GND, Sense)
Power Plug :
3-pin grounded
Pass-through Outlet:
Uncontrolled 3-prong (with ground), 120%, 154A
Fower Consumption:
0.93 Watts
Certification:
Safety tested for use in USA and Canada
