Step 1

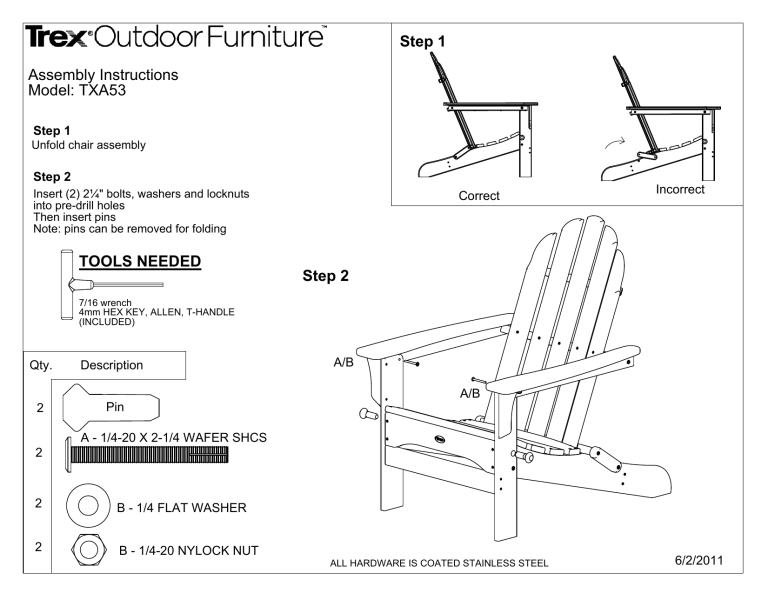

Assembly Instructions
Model: TXA53
Step 1
Unfold chair assembly
Step 2
Insert (2) 2¼" bolts, washers and locknuts
into pre-drill holes
Then insert pins
Note: pins can be removed for folding
Correct
Incorrect
TOOLS NEEDED
Step 2
7/16 wrench
4mm HEX KEY, ALLEN, T-HANDLE
(INCLUDED)
Qty.
Description
A/B
A/B
2
Pin
A - 1/4-20 X 2-1/4 WAFER SHCS
2
2
B - 1/4 FLAT WASHER
2
B - 1/4-20 NYLOCK NUT
ALL HARDWARE IS COATED STAINLESS STEEL
6/2/2011
Assembly Instructions
Model: TXO53
Step 1
Fold legs out of ottoman
__(1) Ottoman assembly
__(1) Hardware pack
Step 2
Insert pins
Qty.
2
Description
Chair pin
6/2/2011
