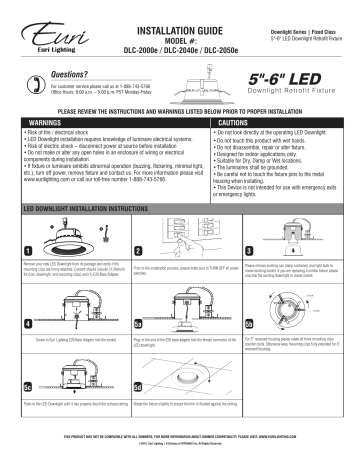

INSTALLATION GUIDE
Downlight Series | Fixed Class
5"-6" LED Downlight Retrofit Fixture
MODEL #:
DLC-2000e / DLC-2040e / DLC-2050e

5"-6" LED
Questions?
For customer service please call us at 1-888-743-5766
Office Hours: 8:00 a.m. – 5:00 p.m. PST Monday-Friday
Downlight Retrofit Fixture
PLEASE REVIEW THE INSTRUCTIONS AND WARNINGS LISTED BELOW PRIOR TO PROPER INSTALLATION
WARNINGS
CAUTIONS
• Risk of fire / electrical shock
• LED Downlight installation requires knowledge of luminaire electrical systems.
• Risk of electric shock – disconnect power at source before installation
• Do not make or alter any open holes in an enclosure of wiring or electrical
components during installation.
• If fixture or luminaire exhibits abnormal operation (buzzing, flickering, minimal light,
etc.), turn off power, remove fixture and contact us. For more information please visit
www.eurilighting.com or call our toll-free number 1-888-743-5766.
• Do not look directly at the operating LED Downlight
• Do not touch this product with wet hands.
• Do not disassemble, repair or alter fixture.
• Designed for indoor applications only.
• Suitable for Dry, Damp or Wet locations.
• The luminaires shall be grounded.
• Be careful not to touch the fixture pins to the metal
housing when installing.
• This Device is not intended for use with emergency exits
or emergency lights.
LED DOWNLIGHT INSTALLATION INSTRUCTIONS
1
2
1
2
Remove your new LED Downlight from its package and verify if the
mounting clips are firmly attached. Content should include: (1) Retrofit
Kit (can, downlight, and mounting clips) and (1) E26 Base Adapter.
Prior to the installation process, please make sure to TURN OFF all power
switches.
3
Please remove existing can (lamp container) and light bulb to
reveal existing socket. If you are replacing a similar fixture please
unscrew the existing downlight to reveal socket.
5 inch
6 inch
4
Screw-in Euri Lighting E26 Base Adapter into the socket.
5a
5b
Plug-in the end of the E26 base adapter into the female connector of the
LED downlight.
For 5” recessed housing please rotate all three mounting clips
counter clock. Otherwise keep mounting clips fully extended for 6”
recessed housing.
5c
5d
Push-in the LED Downlight until it has properly touch the surface/ceiling.
Rotate the fixture slightly to ensure the trim is flushed against the ceiling.
THIS PRODUCT MAY NOT BE COMPATIBLE WITH ALL DIMMERS, FOR MORE INFORMATION ABOUT DIMMER COMPATIBILITY PLEASE VISIT: WWW.EURILIGHTING.COM
©2016. Euri Lighting | A Division of IRTRONIX Inc. All Rights Reserved
