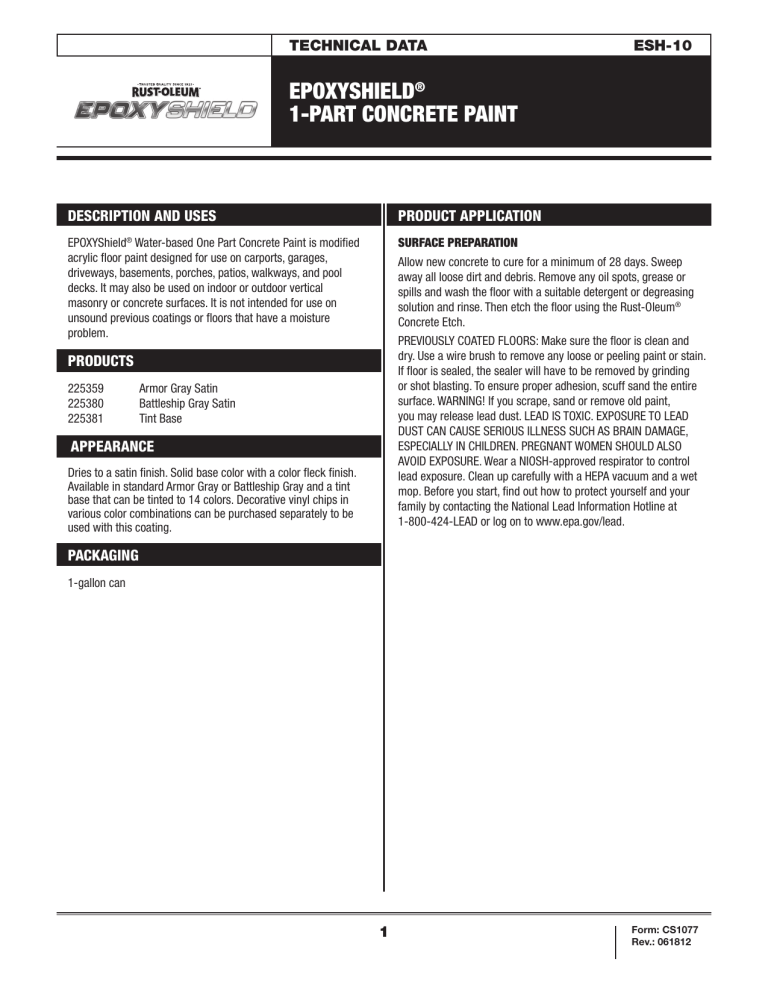

TECHNICAL DATA
®
ESH-10
EPOXYSHIELD®
1-PART CONCRETE PAINT
DESCRIPTION AND USES
PRODUCT APPLICATION
EPOXYShield® Water-based One Part Concrete Paint is modified
acrylic floor paint designed for use on carports, garages,
driveways, basements, porches, patios, walkways, and pool
decks. It may also be used on indoor or outdoor vertical
masonry or concrete surfaces. It is not intended for use on
unsound previous coatings or floors that have a moisture
problem.
SURFACE PREPARATION
Allow new concrete to cure for a minimum of 28 days. Sweep
away all loose dirt and debris. Remove any oil spots, grease or
spills and wash the floor with a suitable detergent or degreasing
solution and rinse. Then etch the floor using the Rust-Oleum®
Concrete Etch.
PREVIOUSLY COATED FLOORS: Make sure the floor is clean and
dry. Use a wire brush to remove any loose or peeling paint or stain.
If floor is sealed, the sealer will have to be removed by grinding
or shot blasting. To ensure proper adhesion, scuff sand the entire
surface. WARNING! If you scrape, sand or remove old paint,
you may release lead dust. LEAD IS TOXIC. EXPOSURE TO LEAD
DUST CAN CAUSE SERIOUS ILLNESS SUCH AS BRAIN DAMAGE,
ESPECIALLY IN CHILDREN. PREGNANT WOMEN SHOULD ALSO
AVOID EXPOSURE. Wear a NIOSH-approved respirator to control
lead exposure. Clean up carefully with a HEPA vacuum and a wet
mop. Before you start, find out how to protect yourself and your
family by contacting the National Lead Information Hotline at
1-800-424-LEAD or log on to www.epa.gov/lead.
PRODUCTS
225359
225380
225381
Armor Gray Satin
Battleship Gray Satin
Tint Base
APPEARANCE
Dries to a satin finish. Solid base color with a color fleck finish.
Available in standard Armor Gray or Battleship Gray and a tint
base that can be tinted to 14 colors. Decorative vinyl chips in
various color combinations can be purchased separately to be
used with this coating.
PACKAGING
1-gallon can
1
Form: CS1077
Rev.: 061812
TECHNICAL DATA
®
EPOXYSHIELD® 1-PART CONCRETE PAINT
PRODUCT APPLICATION (cont.)
MIXING
Mix thoroughly to re-disperse to ensure any settled pigment is
re-dispersed. Do not mix the color chips in with the coating.
APPLICATION
Apply only when air, material, and surface temperatures are
between 60-85°F (15-29°C) and the surface temperature is
at least 5°F (3°C) above the dew point. The relative humidity
should not be greater than 85%. Stir thoroughly. Cut in the
perimeter of the floor along the wall, or other areas where a
roller cannot reach, using a brush or edger before beginning
roller application. Use a synthetic ½" nap roller cover on a 9"
roller frame to apply an even coat of EPOXYShield® Concrete
Paint onto the surface. Limit the application to 4x4 foot
(1.2x1.2m) sections at a time. If decorative chips are used,
scatter the chips up and away from you so they land flat on
the wet paint, then continue on to the next section. Note: Fresh
paint can be applied over the loose chips lying outside the
previously painted area. Maintain a wet edge to prevent lap
marks and gloss differences. Make all final passes in the same
direction to help ensure uniform appearance. Only one coat
is necessary under most circumstances. Occasional touch-up
may be required in areas subject to heavy traffic.
CLEAN-UP
Wash tools and equipment with warm water and a mild
detergent immediately after use. Properly dispose of all roller
covers and soiled rags
2
Form: CS1077
Rev.: 061812
TECHNICAL DATA
®
EPOXYSHIELD® 1-PART CONCRETE PAINT
PHYSICAL PROPERTIES
1-PART CONCRETE PAINT
Resin Type
Modified Acrylic Copolymer
Pigment Type
Varies with color
Solvents
Weight*
Solids*
Dipropylene Glycol Monobutyl Ether, Water
Per Gallon
10.30-10.70 lbs.
Per Liter
1.23-1.28 kg
By Weight
46.8-50.4%
By Volume
34.1-35.7%
Volatile Organic Compounds*
<250g/l (2.08 lbs./gal.)
Mixing Ratio
None
Recommended Dry Film
Thickness (DFT) Per Coat
3.0-3.5 mils (75-87.5µ)
Wet Film to Achieve DFT
(Unthinned Material)
6.0-7.0 mils (150-175µ)
Theoretical Coverage at
1 mil DFT (25µ)
844-847 sq.ft./gal.
(20.7-20.8 m2/l)
Practical Coverage at Recommended
DFT (assumes 15% material loss)
200-240 sq.ft./gal.
(4.9-5.9 m2/l)
Dry Times
at 70-80°F
(21-27°C) and
50% Rel. Hum.
Lt. Foot Traffic
12-16 hours
Foot Traffic
24 hours
Vehicle Traffic
7 days
Shelf Life
5 years
Flash Point
Safety
Information
>200°F (93°C)
Contains
—
Warning!
FOR ADDITIONAL INFORMATION, SEE MSDS.
Calculated values may vary slightly from the actual manufactured material.
*Activated material.
The technical data and suggestions for use contained herein are correct to the best of our knowledge, and offered in good faith. The statements of this literature do not constitute
a warranty, express, or implied, as to the performance of these products. As conditions and use of our materials are beyond our control, we can guarantee these products only
to conform to our standards of quality, and our liability, if any, will be limited to replacement of defective materials. All technical information is subject to change without notice.
Rust-Oleum Corporation
11 Hawthorn Parkway
Vernon Hills, Illinois 60061
An RPM Company
Phone: 877• 385•8155
www.rustoleum.com/industrial
Form: CS1077
Rev.: 061812
