Noble House 239331 Installation guide

Noble House 239331 Installation guide

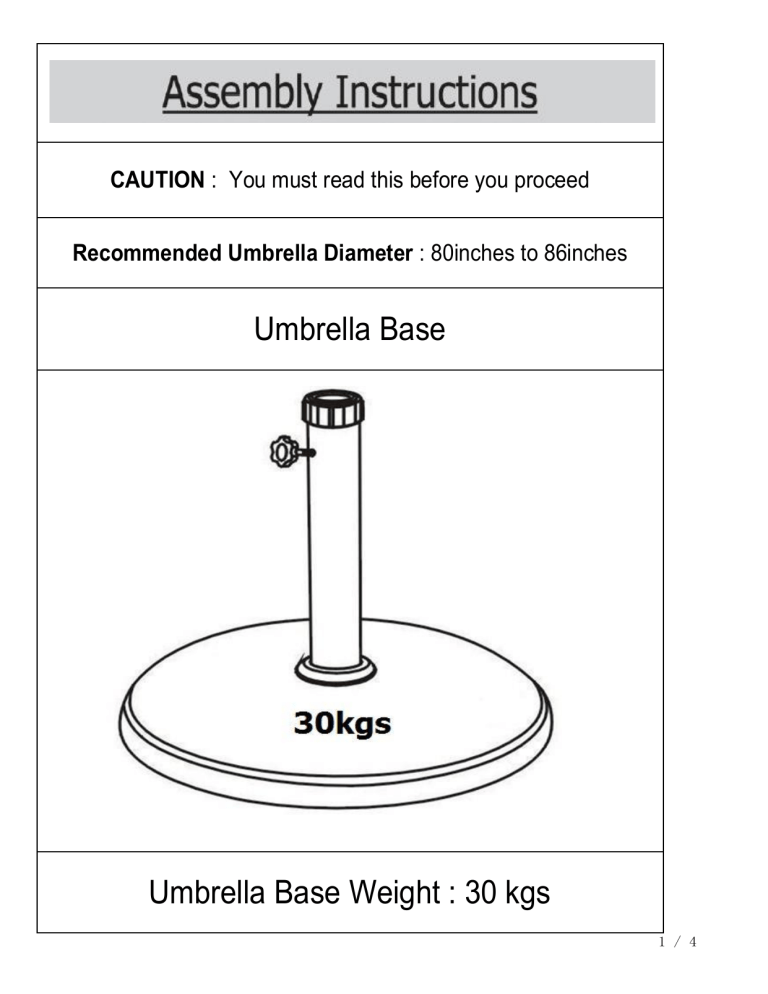

CAUTION : You must read this before you proceed
Recommended Umbrella Diameter : 80inches to 86inches
Umbrella Base
Umbrella Base Weight : 30 kgs
1 / 4
Label
Description
QTY
A
Umbrella Base
1pc
B
Washer
1pc
C
Locking Bolt
1pc
D
Decorative Ring
1pc
E
Support Pole
1pc
F
Adjustable Screw
1pc
G
Cap
1pc
H
Adapter for 38mm pole
1pc
I
Adapter for 48mm pole
1pc
Before Beginning Assembly:
WARNING : AVOID CHOKING / CHOKING HAZARDS : Do not allow children to play with plastic wraps
and / any small parts in this package.
Notice: As a safety precaution, when umbrella is not in use please turn down umbrella.
Remove Umbrella from this base and store in safe location
This base is NOT suited and NOT recommended to be used as a free-standing Umbrella Base.
This base must be used under a matching table and matching Umbrella size.
ATTENTION : This Umbrella Base is exclusively recommended to be used together under a table with
the matching umbrella with diameter of 80inches to86inches. The matching Support Pole diameter :
38mm - 48mm.
2 / 4
Step 1
This is a 2-person team assembly product.
Tilt the Umbrellas Base to its side as pictured.
Put the Locking Bolt (C) through the base from the hole on the bottom.
Screw the Washer(B)to fastening the Locking Bolt(C).
Adding the Decorative Ring (D) onto the Washers (B).
Screw the Support Pole (E) onto the base.
Step 2
Screw the Adjustable Screw (F) into the Support Pole(E).
Step 3
For the Umbrela Pole with diameter as 38mm, use Dia.
38mm Adapter (H) & Dia. 48mm Adapter (I) added
together, insert the Dia. 48mm Adapter (I) into the
Support Pole (E) first, and then put the Dia. 38mm
Adapter (H) onto the Dia. 48mm Adapter(I).
Turn the Cap(G) onto the Support Pole(E) to hold the
Adapters in place.
The Umbrella Base is fully assembled and ready for use.
For the Umbrela Pole with diameter as 48mm, use
the Dia. 48mm Adapter (I) only, insert the Dia. 48mm
Adapter (I) into the Support Pole (E).
Turn the Cap(G) onto the Support Pole(E) to hold
the Adapters in place.
The Umbrella Base is fully assembled and ready for
use.
3 / 4
4 / 4
