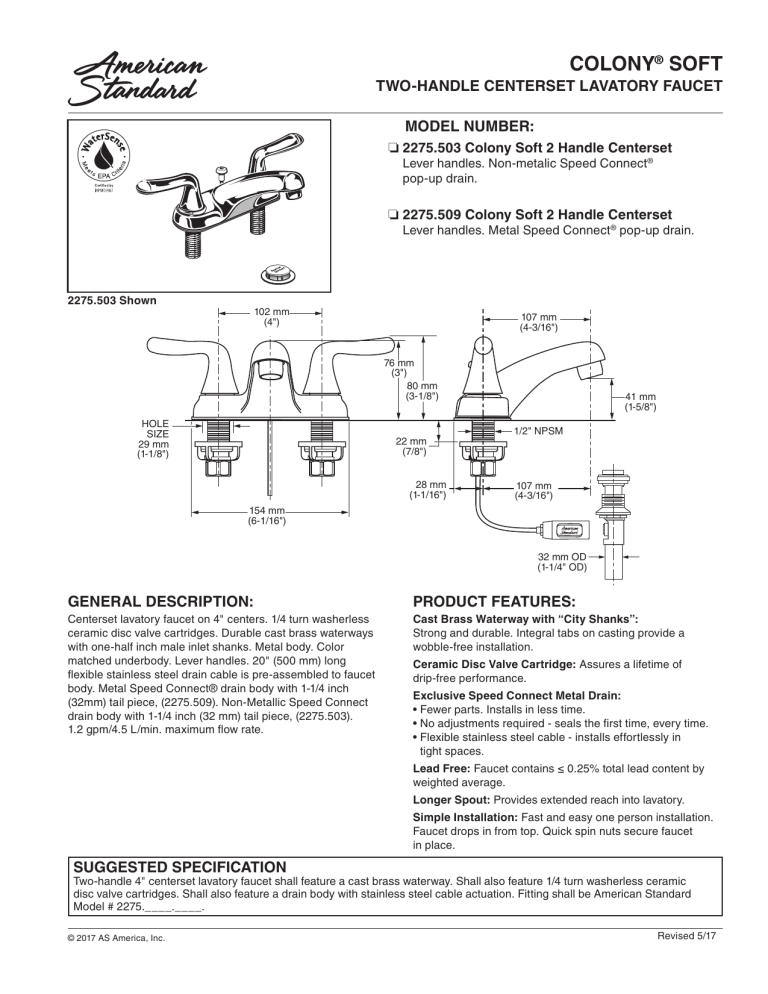

COLONY® SOFT
TWO-HANDLE CENTERSET LAVATORY FAUCET
MODEL NUMBER:
❏ 2275.503 Colony Soft 2 Handle Centerset
Lever handles. Non-metalic Speed Connect ®
pop-up drain.
❏ 2275.509 Colony Soft 2 Handle Centerset
Lever handles. Metal Speed Connect ® pop-up drain.
2275.503 Shown
102 mm
(4")
107 mm
(4-3/16")
76 mm
(3")
80 mm
(3-1/8")
HOLE
SIZE
29 mm
(1-1/8")
22 mm
(7/8")
28 mm
(1-1/16")
41 mm
(1-5/8")
1/2" NPSM
107 mm
(4-3/16")
154 mm
(6-1/16")
32 mm OD
(1-1/4" OD)
GENERAL DESCRIPTION:
PRODUCT FEATURES:
Centerset lavatory faucet on 4" centers. 1/4 turn washerless
ceramic disc valve cartridges. Durable cast brass waterways
with one-half inch male inlet shanks. Metal body. Color
matched underbody. Lever handles. 20" (500 mm) long
flexible stainless steel drain cable is pre-assembled to faucet
body. Metal Speed Connect® drain body with 1-1/4 inch
(32mm) tail piece, (2275.509). Non-Metallic Speed Connect
drain body with 1-1/4 inch (32 mm) tail piece, (2275.503).
1.2 gpm/4.5 L/min. maximum flow rate.
Cast Brass Waterway with “City Shanks”:
Strong and durable. Integral tabs on casting provide a
wobble-free installation.
Ceramic Disc Valve Cartridge: Assures a lifetime of
drip-free performance.
Exclusive Speed Connect Metal Drain:
• Fewer parts. Installs in less time.
• No adjustments required - seals the first time, every time.
• Flexible stainless steel cable - installs effortlessly in
tight spaces.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
Longer Spout: Provides extended reach into lavatory.
Simple Installation: Fast and easy one person installation.
Faucet drops in from top. Quick spin nuts secure faucet
in place.
SUGGESTED SPECIFICATION
Two-handle 4" centerset lavatory faucet shall feature a cast brass waterway. Shall also feature 1/4 turn washerless ceramic
disc valve cartridges. Shall also feature a drain body with stainless steel cable actuation. Fitting shall be American Standard
Model # 2275.____.____.
© 2017 AS America, Inc.
Revised 5/17
COLONY® SOFT
TWO-HANDLE CENTERSET LAVATORY FAUCET
CODES AND STANDARDS
FLOW RATE*
1.4
These products meet or exceed the following
codes and standards:
GALLONS PER MINUTE
1.2
ANSI A117.1
ASME A112.18.1
NSF 61/Section 9 and Annex G
CSA B125.1
1.0
0.8
0.6
0.4
0.2
0.0
0
20
40
60
80
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
Finish Options
Product
Number
Description
2275.503
Colony Soft 2 Handle Centerset. Lever handles.
Non-metalic Speed Connect ® pop-up drain.
2275.509
Colony Soft 2 Handle Centerset. Lever handles.
Metal Speed Connect pop-up drain.
Polished
Chrome
PVD
Brushed
Nickel
002
295
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
AERATOR MODIFICATIONS***
Parts
Suffix**
0.5 gpm (1.9 Lpm) PCA* Spray
___F05
0.5 gpm (1.9 Lpm) Vandal Resistant PCA Spray
___V05
1.0 gpm (3.8 Lpm) PCA Aerator
___F10
1.0 gpm (3.8 Lpm) Vandal Resistant PCA Aerator
___V10
1.2 gpm (4.5 Lpm) Vandal Resistant PCA Aerator
___V12
1.5 gpm (5.7 Lpm) Vandal Resistant PCA Aerator
___V15
AVAILABLE MODIFICATIONS***
Handles
Indexed Installed
(Red & Blue)
Parts
Suffix**
___RB
*PCA — Pressure Compensating
**To modify a product, add suffix after the 4th digit (ex. 2064F05101.002)
***Modified product models are NOT WaterSense certified.
© 2017 AS America, Inc.
Revised 5/17
