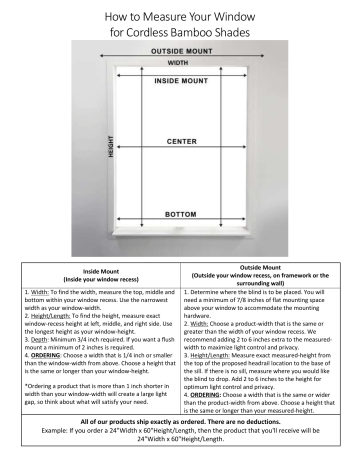

How to Measure Your Window
for Cordless Bamboo Shades
Inside Mount
(Inside your window recess)
1. Width: To find the width, measure the top, middle and
bottom within your window recess. Use the narrowest
width as your window-width.
2. Height/Length: To find the height, measure exact
window-recess height at left, middle, and right side. Use
the longest height as your window-height.
3. Depth: Minimum 3/4 inch required. If you want a flush
mount a minimum of 2 inches is required.
4. ORDERING: Choose a width that is 1/4 inch or smaller
than the window-width from above. Choose a height that
is the same or longer than your window-height.
*Ordering a product that is more than 1 inch shorter in
width than your window-width will create a large light
gap, so think about what will satisfy your need.
Outside Mount
(Outside your window recess, on framework or the
surrounding wall)
1. Determine where the blind is to be placed. You will
need a minimum of 7/8 inches of flat mounting space
above your window to accommodate the mounting
hardware.
2. Width: Choose a product-width that is the same or
greater than the width of your window recess. We
recommend adding 2 to 6 inches extra to the measuredwidth to maximize light control and privacy.
3. Height/Length: Measure exact measured-height from
the top of the proposed headrail location to the base of
the sill. If there is no sill, measure where you would like
the blind to drop. Add 2 to 6 inches to the height for
optimum light control and privacy.
4. ORDERING: Choose a width that is the same or wider
than the product-width from above. Choose a height that
is the same or longer than your measured-height.
All of our products ship exactly as ordered. There are no deductions.
Example: If you order a 24"Width x 60"Height/Length, then the product that you'll receive will be
24"Width x 60"Height/Length.
