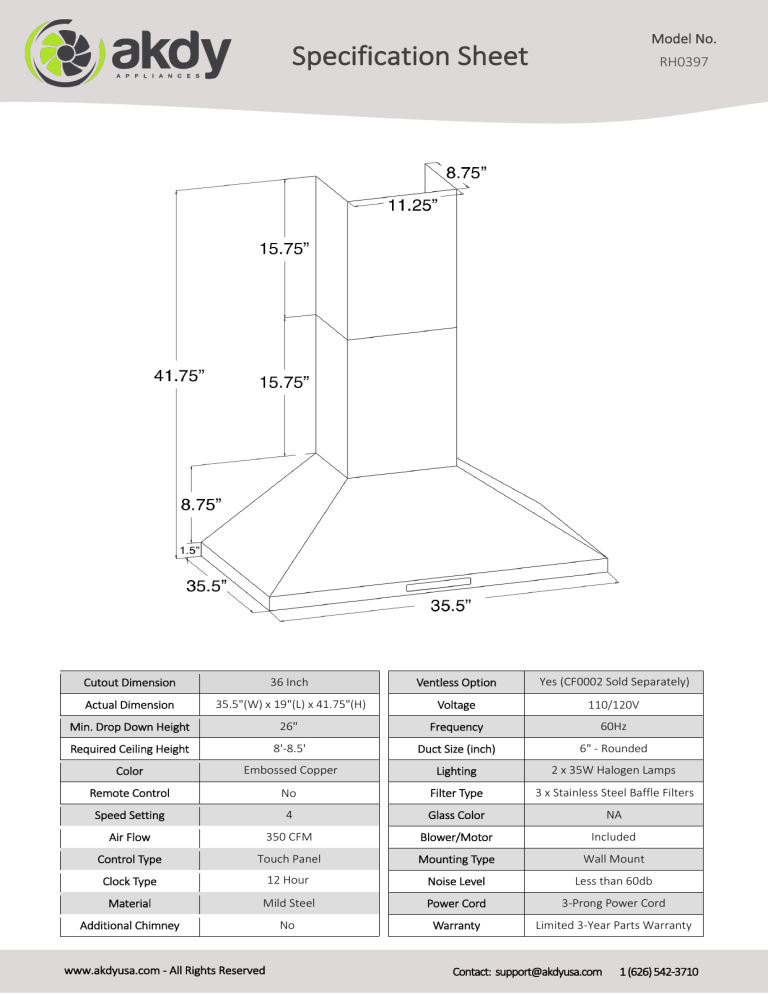

AKDY RH0397 Specification

AKDY RH0397 Specification
Model No.
Specification Sheet
RH0397
Cutout Dimension
36 Inch
Ventless Option
Yes (CF0002 Sold Separately)
Actual Dimension
35.5"(W) x 19"(L) x 41.75"(H)
Voltage
110/120V
Min. Drop Down Height
26"
Frequency
60Hz
Required Ceiling Height
8'-8.5'
Duct Size (inch)
6" ‐ Rounded
Color
Embossed Copper
Lighting
2 x 35W Halogen Lamps
Remote Control
No
Filter Type
3 x Stainless Steel Baffle Filters
Speed Setting
4
Glass Color
NA
Air Flow
350 CFM
Blower/Motor
Included
Control Type
Touch Panel
Mounting Type
Wall Mount
Clock Type
12 Hour
Noise Level
Less than 60db
Material
Mild Steel
Power Cord
3‐Prong Power Cord
Additional Chimney
No
Warranty
Limited 3‐Year Parts Warranty
www.akdyusa.com - All Rights Reserved
Contact: [email protected]
1 (626) 542-3710
