ZLINE Kitchen and Bath KL2CRN-36, 655-SCCCS-30, 8KES-36, KB-30, BSKBN-42, KBCRN-42, 8KBH-36, KF1-30, KECRN-42, KL2-36 Specification

ZLINE Kitchen and Bath KL2CRN-36, 655-SCCCS-30, 8KES-36, KB-30, BSKBN-42, KBCRN-42, 8KBH-36, KF1-30, KECRN-42, KL2-36 Specification

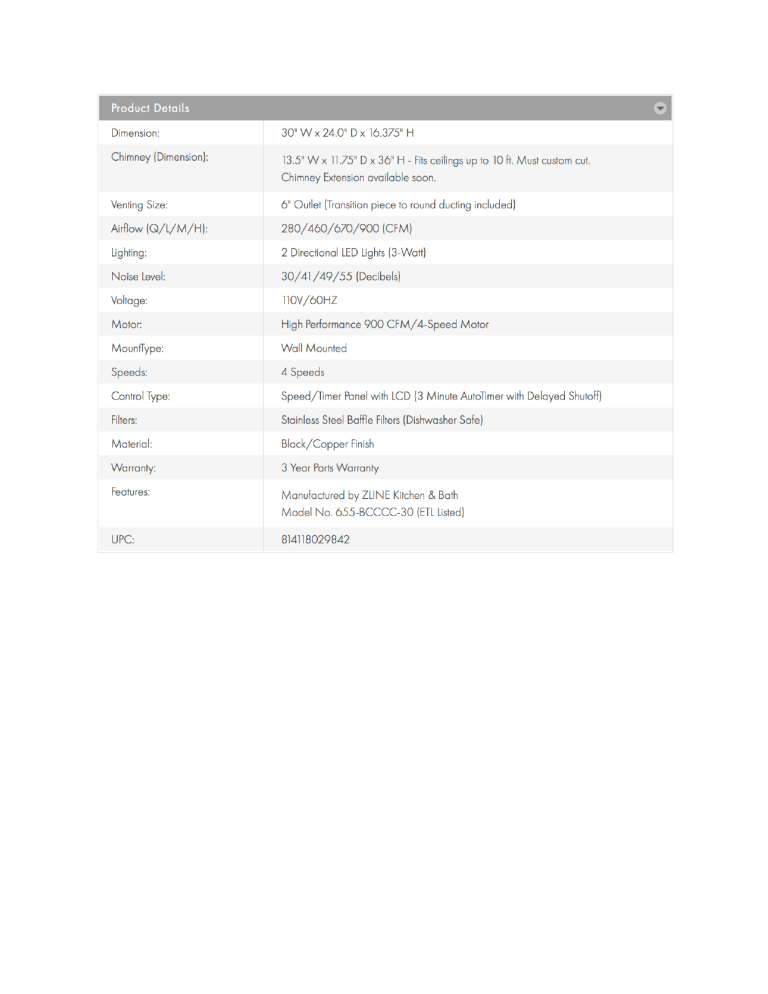

Product Details
Dimension:
Chimney (Dimension):
Venting Size:
Airflow (Q/L/M/H):
Lighting:
Noise Level:
Voltage:
Motor:
Mounflype:
Speeds:
Control Type:
Filters:
Material:
Warranty:
Features:
UPC:
30" W x 24.0" Dx 16.375" H
13.5" W x 11.75" D x 36" H - Fits ceilings up to 10 ft. Must custom cut.
Chimney Extension available soon.
6" Outlet (Transition piece to round ducting included)
280/460/670/900 (CFM)
2 Directional LED Lights (3-Watt)
30/41/49/55 (Decibels)
110V/60HZ
High Performance 900 CFM/4-Speed Motor
Wall Mounted
4 Speeds
Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Stainless Steel Baffle Filters (Dishwasher Safe)
Black/Copper Finish
3 Year Parts Warranty
Manufactured by ZLINE Kitchen & Bath
Model No. 655-BCCCC-30 (ETL Listed)
814118029842
