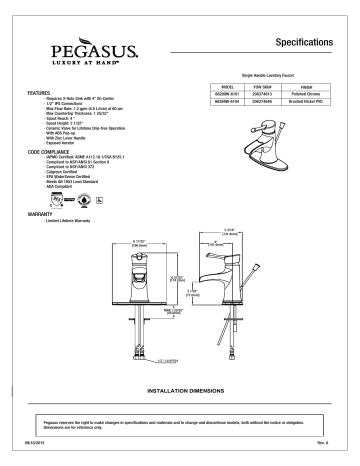

Specifications
Single Handle Lavatory Faucet
FEATURES
· Requires 3-Hole Sink with 4" On-Center
· 1/2" IPS Connections
· Max Flow Rate: 1.2 gpm (4.5 L/min) at 60 psi
· Max Countertop Thickness: 1 25/32"
· Spout Reach: 4 "
· Spout Height: 3 1/32"
· Ceramic Valve for Lifetime Drip-free Operation
· With ABS Pop-up
· With Zinc Lever Handle
· Exposed Aerator
MODEL
YOW SKU#
FINISH
66289W-6101
206374613
Polished Chrome
66289W-6104
206374646
Brushed Nickel PVD
CODE COMPLIANCE
· IAPMO Certified: ASME A112.18.1/CSA B125.1
· Compliant to NSF/ANSI 61 Section 9
· Compliant to NSF/ANSI 372
· Calgreen Certified
· EPA WaterSense Certified
· Meets AB 1953 Lead Standard
· ADA Compliant
Water Efficiency
WARRANTY
· Limited Lifetime Warranty
5 3/16"
[131.8mm]
6 17/32"
[166.0mm]
4"
[101.4mm]
6 27/32"
[174.2mm]
3 1/32"
[77.0mm]
MAX:1 25/32"
[45.0mm]
1/2"-14NPSM
INSTALLATION DIMENSIONS
Pegasus reserves the right to make changes in specifications and materials and to change and discontinue models, both without the notice or obligation.
Dimensions are for reference only.
09/18/2015
Rev. A
