 7

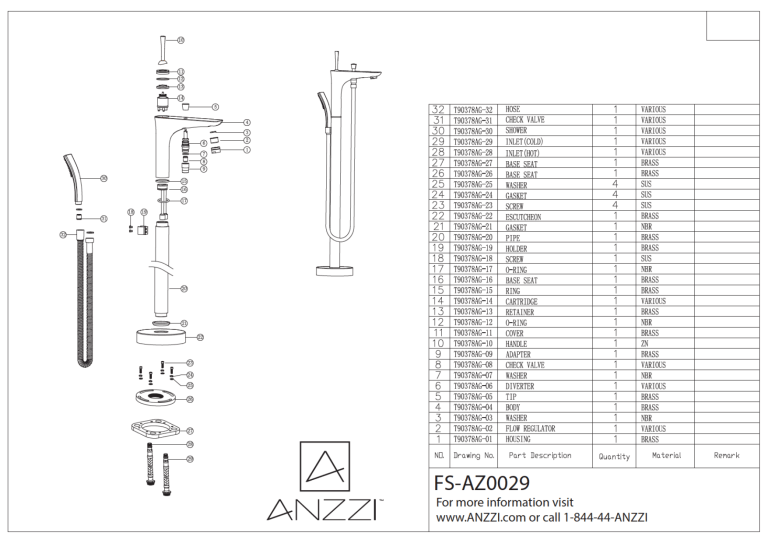

32 | T90378AG-32 | HOSE 1 VARIOUS
31 | T90378AG-31 | CHECK VALVE 1 VARTOUS
30 | T90378AG-30 | SHOWER 1 VARLOUS
29 | T90378AG-29 | INLET (COLD) 1 VARTOUS
28 | T90378AG-28 | INLET (HOT) 1 VARTOUS
27 | T90378AG-27 | BASE SEAT 1 BRASS
26 | T90378AG-26 | BASE SEAT 1 BRASS
25 | T90378AG-25_| WASHER 4 SUS
24 | T90378AG-24 | GASKET 4 SUS
23 | T90378AG-23 | SCREW 4 SUS
27 | T90378AG-22 | ESCUTCHEON 1 BRASS
21 | T90378AG-21 | GASKET 1 NBR
20 | T90378AG-20 | PIPE 1 BRASS
19 | T90378AG-19 | HOLDER 1 BRASS
18 | T90378AG-18 | SCREW 1 SUS
17 | T90378AG-17 | (O-RING 1 NBR
16 | T90378AG-16 | BASE SEAT 1 BRASS
15 | T90378AG-15 | RING 1 BRASS
14 | T90378AG-14 | CARTRIDGE 1 VARIOUS
13 | T90378AG-13 | RETAINER 1 BRASS
12 | T90378AG-12 | (O-RING 1 NBR
11 | T90378AG-11 | COVER 1 BRASS
10 | T90378AG-10 | HANDLE 1 ZN
9 | T90378AG-09 | ADAPTER 1 BRASS
8 | T90378AG-08 | CHECK VALVE 1 VARIOUS
7 | T90378AG-07 | WASHER 1 NBR
6 | T90378AG-06 | DIVERTER 1 VARTOUS
5 | T90378AG-05 | TIP 1 BRASS
4 | T90378AG-04 | BODY 1 BRASS
3 | T90378AG-03 | WASHER 1 NBR
2 | T90378AG-02 | FLOW REGULATOR 1 VARIOUS
1 | T90378AG-01 | HOUSING 1 BRASS
NO. | Drawing No. Part Description Quantity Material Remark
FS-AZ0029
For more information visit
www.ANZZI.com or call 1-844-44-ANZZI
1039
Ва [40,917]
933
[37.8]
[36.74”]
~~
34
[1,34]
| | 2150 UNIT:
| E | [5,91] mm [inch]
118
0 1/2-14NPT
| 93
[3.667]
