HYPERIKON.

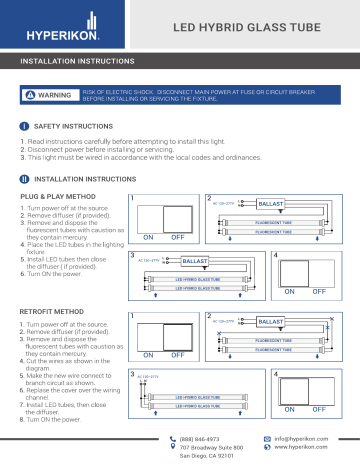

INSTALLATION INSTRUCTIONS
LED HYBRID GLASS TUBE
BEFORE INSTALLING OR SERVICING THE FIXTURE.
RISK OF ELECTRIC SHOCK. DISCONNECT MAIN POWER AT FUSE OR CIRCUIT BREAKER
@ SAFETY INSTRUCTIONS
1. Read instructions carefully before attempting to install this light.
2. Disconnect power before installing or servicing.
3. This light must be wired in accordance with the local codes and ordinances.
O INSTALLATION INSTRUCTIONS
PLUG 8: PLAY METHOD
1. Turn power off at the source.
2. Remove diffuser (if provided).
3. Remove and dispose the
fluorescent tubes with caustion as
they contain mercury.
4. Place the LED tubes in the lighting
fixture.
5. Install LED tubes then close
the diffuser (if provided).
6. Turn ON the power.
RETROFIT METHOD
1. Turn power off at the source.
2. Remove diffuser (if provided).
3. Remove and dispose the
fluorescent tubes with caustion as
they contain mercury.
4. Cut the wires as shown in the
diagram.
5. Make the new wire connect to
branch circuit as shown.
6. Replase the cover over the wiring
channel.
7. Install LED tubes, then close
the diffuser.
8. Turn ON the power.
1 2
AC120-277V (S| BALLAST
i —]
El FLUORESCENT TUBE ||
|| FLUORESCENT TUBE [=
ON OFF у +
3 4
AC 120~277V N oO BALLAST
— E |
¡ LED HYBRID GLASS TUBE | |
LED HYBRID GLASS TUBE
= = ON OFF
1 2 ;
AC 120-277V oo | BALLAST
NA, |
В FLUORESCENT TUBE ||
|| FLUORESCENT TUBE ds
ON OFF у +
3 AC 120-277V 4
LN
|| LED HYBRID GLASS TUBE [|
LED HYBRID GLASS TUBE
т Ш ON OFF
©, (888) 846-4973
® 707 Broadway Suite 800
San Diego, CA 92101
X [email protected]
6) www.hyperikon.com
