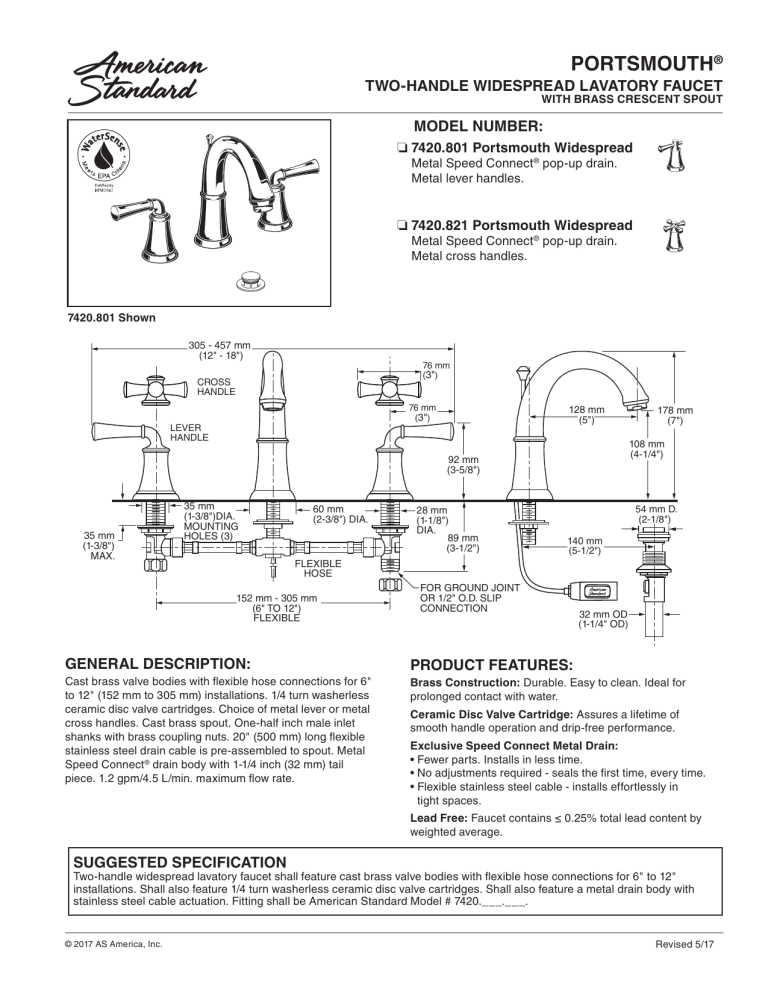

PORTSMOUTH®
TWO-HANDLE WIDESPREAD LAVATORY FAUCET
WITH BRASS CRESCENT SPOUT
MODEL NUMBER:
❏ 7420.801 Portsmouth Widespread
Metal Speed Connect ® pop-up drain.
Metal lever handles.
❏ 7420.821 Portsmouth Widespread
Metal Speed Connect ® pop-up drain.
Metal cross handles.
7420.801 Shown
305 - 457 mm
(12" - 18")
76 mm
(3")
CROSS
HANDLE
76 mm
(3")
LEVER
HANDLE
128 mm
(5")
108 mm
(4-1/4")
92 mm
(3-5/8")
35 mm
(1-3/8")
MAX.
35 mm
(1-3/8")DIA.
MOUNTING
HOLES (3)
60 mm
(2-3/8") DIA.
28 mm
(1-1/8")
DIA.
89 mm
(3-1/2")
178 mm
(7")
54 mm D.
(2-1/8")
140 mm
(5-1/2")
FLEXIBLE
HOSE
152 mm - 305 mm
(6" TO 12")
FLEXIBLE
FOR GROUND JOINT
OR 1/2" O.D. SLIP
CONNECTION
32 mm OD
(1-1/4" OD)
GENERAL DESCRIPTION:
PRODUCT FEATURES:
Cast brass valve bodies with flexible hose connections for 6"
to 12" (152 mm to 305 mm) installations. 1/4 turn washerless
ceramic disc valve cartridges. Choice of metal lever or metal
cross handles. Cast brass spout. One-half inch male inlet
shanks with brass coupling nuts. 20" (500 mm) long flexible
stainless steel drain cable is pre-assembled to spout. Metal
Speed Connect ® drain body with 1-1/4 inch (32 mm) tail
piece. 1.2 gpm/4.5 L/min. maximum flow rate.
Brass Construction: Durable. Easy to clean. Ideal for
prolonged contact with water.
Ceramic Disc Valve Cartridge: Assures a lifetime of
smooth handle operation and drip-free performance.
Exclusive Speed Connect Metal Drain:
• Fewer parts. Installs in less time.
• No adjustments required - seals the first time, every time.
• Flexible stainless steel cable - installs effortlessly in
tight spaces.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
SUGGESTED SPECIFICATION
Two-handle widespread lavatory faucet shall feature cast brass valve bodies with flexible hose connections for 6" to 12"
installations. Shall also feature 1/4 turn washerless ceramic disc valve cartridges. Shall also feature a metal drain body with
stainless steel cable actuation. Fitting shall be American Standard Model # 7420.___.___.
© 2017 AS America, Inc.
Revised 5/17
PORTSMOUTH®
TWO-HANDLE WIDESPREAD LAVATORY FAUCET
WITH BRASS CRESCENT SPOUT
CODES AND STANDARDS
FLOW RATE*
1.4
These products meet or exceed the following
codes and standards:
GALLONS PER MINUTE
1.2
ASME A112.18.1
CSA B125.1
NSF 61/Section 9 and Annex G
1.0
0.8
0.6
0.4
0.2
0.0
0
20
40
60
80
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
Finish Options
Product
Number
Description
7420.801
Portsmouth Widespread with Metal Speed Connect ®
pop-up drain. Metal lever handles.
7420.821
Portsmouth Widespread with Metal Speed Connect
pop-up drain. Metal cross handles.
Polished
Chrome
Oil
Rubbed
Bronze
PVD
Brushed
Nickel
002
224
295
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
AERATOR MODIFICATIONS***
Parts
Suffix**
0.5 gpm (1.9 Lpm) PCA* Spray
___F05
0.5 gpm (1.9 Lpm) Vandal Resistant PCA Spray
___V05
1.0 gpm (3.8 Lpm) PCA Aerator
___F10
1.0 gpm (3.8 Lpm) Vandal Resistant PCA Aerator
___V10
1.2 gpm (4.5 Lpm) Vandal Resistant PCA Aerator
___V12
1.5 gpm (5.7 Lpm) Vandal Resistant PCA Aerator
___V15
*PCA — Pressure Compenbrushedg
**To modify a product, add suffix after the 4th digit (ex. 2064F05101.002)
***Modified product models are NOT WaterSense certified.
© 2017 AS America, Inc.
Revised 5/17
