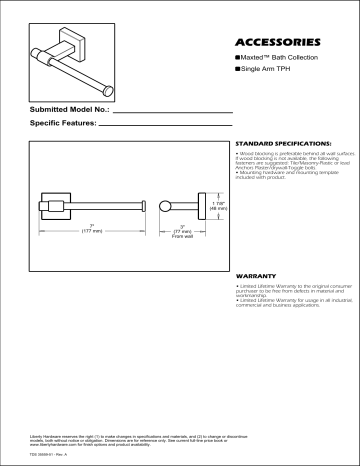

Maxted™ Bath Collection
Single Arm TPH
Submitted Model No.:
Specific Features:
• Wood blocking is preferable behind all wall surfaces.
If wood blocking is not available, the following
fasteners are suggested: Tile/Masonry-Plastic or lead
Anchors Plaster/drywall-Toggle bolts.
• Mounting hardware and mounting template
included with product.
1 7/8"
(48 mm)
(177 mm)
(77 mm)
From wall
• Limited Lifetime Warranty to the original consumer
purchaser to be free from defects in material and
• Limited Lifetime Warranty for usage in all industrial,
commercial and business applications.
Liberty Hardware reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or for finish options and product availability.
TDS 35559-51 - Rev. A
