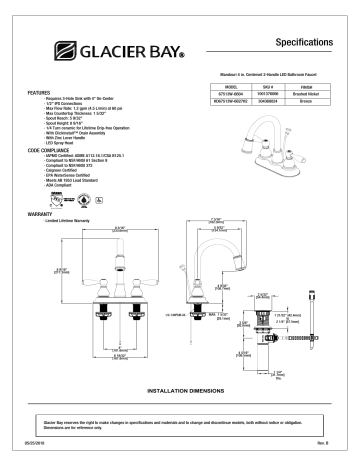

Specifications
Mandouri 4 in. Centerset 2-Handle LED Bathroom Faucet
FEATURES
· Requires 3-Hole Sink with 4" On-Center
· 1/2" IPS Connections
· Max Flow Rate: 1.2 gpm (4.5 L/min) at 60 psi
· Max Countertop Thickness: 1 5/32"
· Spout Reach: 5 9/32"
· Spout Height: 8 9/16"
· 1/4 Turn ceramic for Lifetime Drip-free Operation
· With ClickInstallâ„¢ Drain Assembly
· With Zinc Lever Handle
· LED Spray Head
MODEL
SKU #
FINISH
67513W-6B04
1001376006
Brushed Nickel
HD67513W-6B27H2
304368024
Bronze
CODE COMPLIANCE
· IAPMO Certified: ASME A112.18.1/CSA B125.1
· Compliant to NSF/ANSI 61 Section 9
· Compliant to NSF/ANSI 372
· Calgreen Certified
· EPA WaterSense Certified
· Meets AB 1953 Lead Standard
· ADA Compliant
Water Efficiency
WARRANTY
7 3/16"
[182.3mm]
· Limited Lifetime Warranty
5 9/32"
[134.1mm]
9 3/16"
[233.6mm]
8 9/16"
[217.3mm]
4 9/32"
[108.7mm]
2 5/32"
[54.4mm]
1/2-14NPSM-2A
MAX: 1 5/32"
[29.1mm]
3 5/8"
[92.0mm]
4"
[101.6mm]
1 21/32" [42.4mm]
to
2 1/4" [57.5mm]
4 5/16"
[109.5mm]
6 19/32"
[167.8mm]
1 1/4"
[31.7mm]
Dia.
INSTALLATION DIMENSIONS
Glacier Bay reserves the right to make changes in specifications and materials and to change and discontinue models, both without notice or obligation.
Dimensions are for reference only.
05/25/2018
Rev. B
