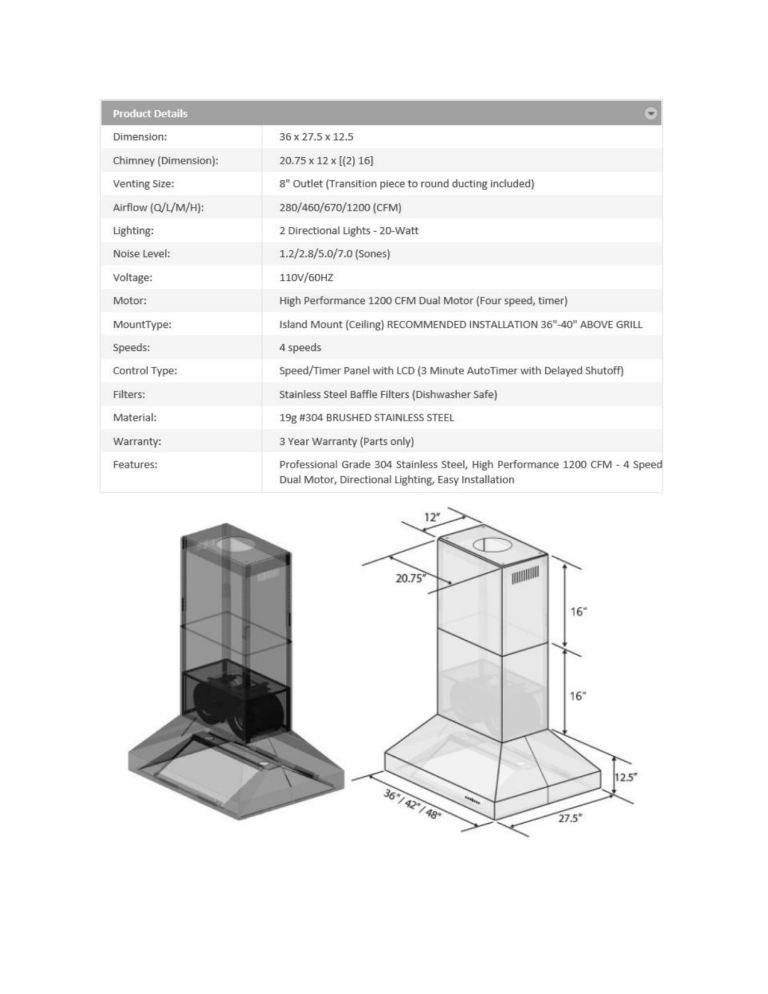

ZLINE Kitchen and Bath 697i-304-36 Specification

ZLINE Kitchen and Bath 697i-304-36 Specification
Dimension:
Chimney (Dimension):
Venting Size:
Airflow (Q/L/M/H):
Lighting:
Noise Level:
Voltage:
Motor:
MountType:
Speeds:
Control Type:
Filters:
Material:
Warranty:
Features:
36x27.5x12.5
20.75 x 12 x [(2) 16]
8" Outlet (Transition piece to round ducting included)
280/460/670/1200 (CFM)
2 Directional Lights - 20-Watt
1.2/2.8/5.0/7.0 (Sones)
110V/60HZ
High Performance 1200 CFM Dual Motor (Four speed, timer)
Island Mount (Ceiling) RECOMMENDED INSTALLATION 36"-40" ABOVE GRILL
4 speeds
Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Stainless Steel Baffle Filters (Dishwasher Safe)
19g #304 BRUSHED STAINLESS STEEL
3 Year Warranty (Parts only)
Professional Grade 304 Stainless Steel, High Performance 1200 CFM - 4 Speed
Dual Motor, Directional Lighting, Easy Installation
25"
