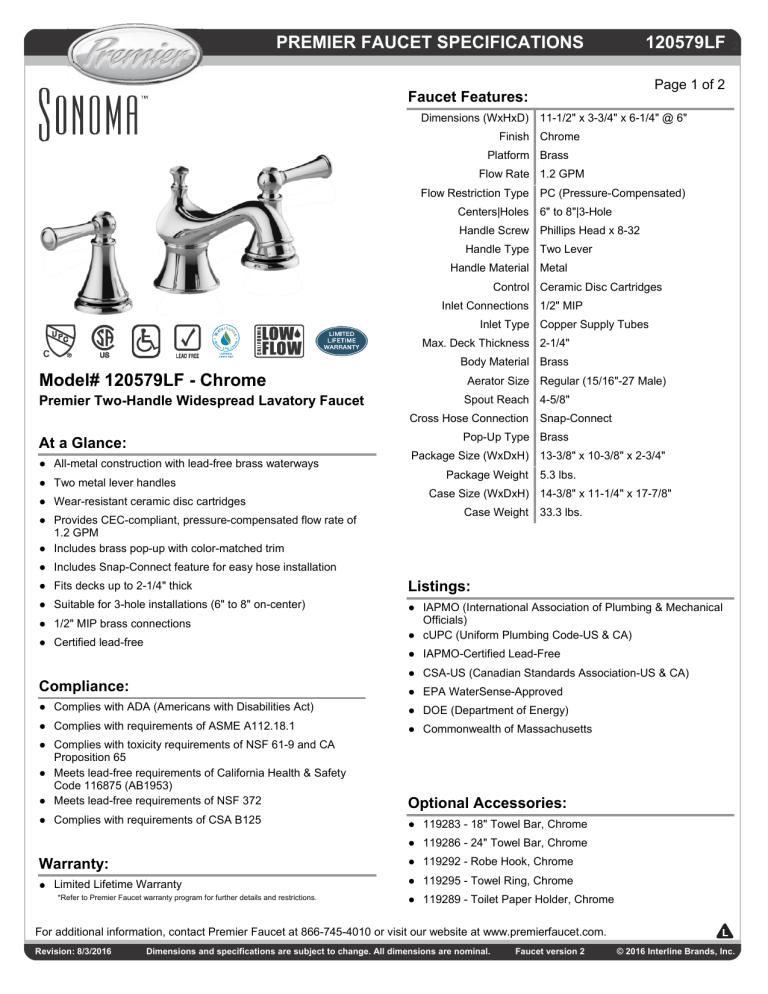

PREMIER FAUCET SPECIFICATIONS
120579LF
2
Page 1 of 2
Faucet Features:
Dimensions (WxHxD) 11-1/2" x 3-3/4" x 6-1/4" @ 6"
Finish Chrome
Platform Brass
Flow Rate 1.2 GPM
Flow Restriction Type PC (Pressure-Compensated)
Centers|Holes 6" to 8"|3-Hole
Handle Screw Phillips Head x 8-32
Handle Type Two Lever
Handle Material Metal
Control Ceramic Disc Cartridges
Inlet Connections 1/2" MIP
Inlet Type Copper Supply Tubes
Max. Deck Thickness 2-1/4"
C
Body Material Brass
Model# 120579LF - Chrome
Aerator Size Regular (15/16"-27 Male)
Premier Two-Handle Widespread Lavatory Faucet
Spout Reach 4-5/8"
Cross Hose Connection
Snap-Connect
Pop-Up Type Brass
At a Glance:
● All-metal construction with lead-free brass waterways
● Two metal lever handles
● Wear-resistant ceramic disc cartridges
● Provides CEC-compliant, pressure-compensated flow rate of
1.2 GPM
● Includes brass pop-up with color-matched trim
Package Size (WxDxH) 13-3/8" x 10-3/8" x 2-3/4"
Package Weight
5.3 lbs.
Case Size (WxDxH) 14-3/8" x 11-1/4" x 17-7/8"
Case Weight
33.3 lbs.
● Includes Snap-Connect feature for easy hose installation
● Fits decks up to 2-1/4" thick
Listings:
● Suitable for 3-hole installations (6" to 8" on-center)
● IAPMO (International Association of Plumbing & Mechanical
Officials)
● cUPC (Uniform Plumbing Code-US & CA)
● 1/2" MIP brass connections
● Certified lead-free
● IAPMO-Certified Lead-Free
● CSA-US (Canadian Standards Association-US & CA)
Compliance:
● EPA WaterSense-Approved
● Complies with ADA (Americans with Disabilities Act)
● DOE (Department of Energy)
● Complies with requirements of ASME A112.18.1
● Commonwealth of Massachusetts
● Complies with toxicity requirements of NSF 61-9 and CA
Proposition 65
● Meets lead-free requirements of California Health & Safety
Code 116875 (AB1953)
● Meets lead-free requirements of NSF 372
Optional Accessories:
● Complies with requirements of CSA B125
● 119283 - 18" Towel Bar, Chrome
● 119286 - 24" Towel Bar, Chrome
Warranty:
● 119292 - Robe Hook, Chrome
● Limited Lifetime Warranty
● 119295 - Towel Ring, Chrome
*Refer to Premier Faucet warranty program for further details and restrictions.
● 119289 - Toilet Paper Holder, Chrome
For additional information, contact Premier Faucet at 866-745-4010 or visit our website at www.premierfaucet.com.
Revision: 8/3/2016
Dimensions and specifications are subject to change. All dimensions are nominal.
Faucet version 2
© 2016 Interline Brands, Inc.
PREMIER FAUCET SPECIFICATIONS
120579LF
2
Page 2 of 2
Installation Configurations:
3‐Hole Installation
Dimensional Drawing:
2-3/4"
6" to 8" On-Center
6-1/4"
5-1/8"
2"
1
3-3/4"
3-1/2"
4-1/4"
2"
2-3/8"
2"
17°
4-5/8"
4
2"
1-3/4"
2-1/4" Max. Thickness
3
2
1)
2)
3)
4)
15/16"-27 male threaded aerator shell
Vinyl-reinforced interconnection hose features Snap-Connect for fast installation
Copper supply tubes with 1/2" MIP connections
Fits standard hole openings 1-1/4" to 1-1/2" in diameter
For additional information, contact Premier Faucet at 866-745-4010 or visit our website at www.premierfaucet.com.
Revision: 8/3/2016
Dimensions and specifications are subject to change. All dimensions are nominal.
Faucet version 2
© 2016 Interline Brands, Inc.
