ADO Products FT3050 Specification

ADO Products FT3050 Specification
UFD.020

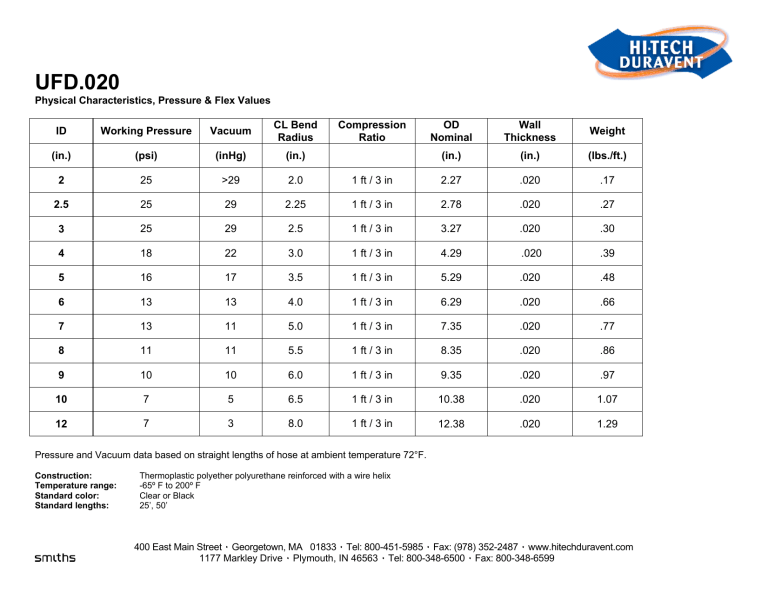

Physical Characteristics, Pressure & Flex Values
ID
Working Pressure
Vacuum
CL Bend
Radius
(in.)
(psi)
(inHg)
(in.)
2
25
>29
2.0
2.5
25
29
3
25
4
Compression
Ratio
OD
Nominal
Wall
Thickness
Weight
(in.)
(in.)
(lbs./ft.)
1 ft / 3 in
2.27
.020
.17
2.25
1 ft / 3 in
2.78
.020
.27
29
2.5
1 ft / 3 in
3.27
.020
.30
18
22
3.0
1 ft / 3 in
4.29
.020
.39
5
16
17
3.5
1 ft / 3 in
5.29
.020
.48
6
13
13
4.0
1 ft / 3 in
6.29
.020
.66
7
13
11
5.0
1 ft / 3 in
7.35
.020
.77
8
11
11
5.5
1 ft / 3 in
8.35
.020
.86
9
10
10
6.0
1 ft / 3 in
9.35
.020
.97
10
7
5
6.5
1 ft / 3 in
10.38
.020
1.07
12
7
3
8.0
1 ft / 3 in
12.38
.020
1.29
Pressure and Vacuum data based on straight lengths of hose at ambient temperature 72°F.
Construction:
Temperature range:
Standard color:
Standard lengths:
Thermoplastic polyether polyurethane reinforced with a wire helix
-65º F to 200º F
Clear or Black
25’, 50’
