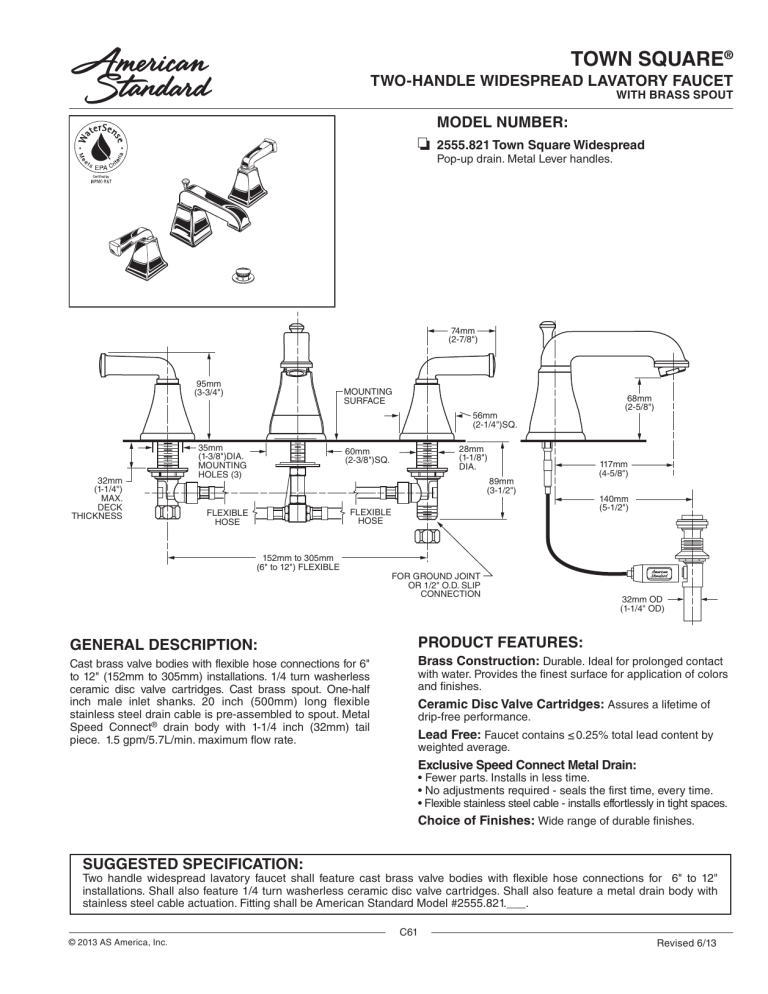

TOWN SQUARE®
TWO-HANDLE WIDESPREAD LAVATORY FAUCET
WITH BRASS SPOUT
MODEL NUMBER:
2555.821 Town Square Widespread
Pop-up drain. Metal Lever handles.
74mm
(2-7/8")
95mm
(3-3/4")
MOUNTING
SURFACE
56mm
(2-1/4")SQ.
32mm
(1-1/4")
MAX.
DECK
THICKNESS
35mm
(1-3/8")DIA.
MOUNTING
HOLES (3)
60mm
(2-3/8")SQ.
FLEXIBLE
HOSE
FLEXIBLE
HOSE
28mm
(1-1/8")
DIA.
89mm
(3-1/2")
152mm to 305mm
(6" to 12") FLEXIBLE
GENERAL DESCRIPTION:
Cast brass valve bodies with flexible hose connections for 6"
to 12" (152mm to 305mm) installations. 1/4 turn washerless
ceramic disc valve cartridges. Cast brass spout. One-half
inch male inlet shanks. 20 inch (500mm) long flexible
stainless steel drain cable is pre-assembled to spout. Metal
Speed Connect® drain body with 1-1/4 inch (32mm) tail
piece. 1.5 gpm/5.7L/min. maximum flow rate.
FOR GROUND JOINT
OR 1/2" O.D. SLIP
CONNECTION
68mm
(2-5/8")
117mm
(4-5/8")
140mm
(5-1/2")
32mm OD
(1-1/4" OD)
PRODUCT FEATURES:
Brass Construction: Durable. Ideal for prolonged contact
with water. Provides the finest surface for application of colors
and finishes.
Ceramic Disc Valve Cartridges: Assures a lifetime of
drip-free performance.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
Exclusive Speed Connect Metal Drain:
• Fewer parts. Installs in less time.
• No adjustments required - seals the first time, every time.
• Flexible stainless steel cable - installs effortlessly in tight spaces.
Choice of Finishes: Wide range of durable finishes.
SUGGESTED SPECIFICATION:
Two handle widespread lavatory faucet shall feature cast brass valve bodies with flexible hose connections for 6" to 12"
installations. Shall also feature 1/4 turn washerless ceramic disc valve cartridges. Shall also feature a metal drain body with
stainless steel cable actuation. Fitting shall be American Standard Model #2555.821.___.
© 2013 AS America, Inc.
C61
Revised 6/13
TOWN SQUARE®
TWO-HANDLE WIDESPREAD LAVATORY FAUCET
WITH BRASS SPOUT
CODES AND STANDARDS
FLOW RATE*
2.0
GALLONS PER MINUTE
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
CSA B 125
NSF 61/Section 9 and Annex G
1.5
1.0
0.5
0.0
20
40
60
80
100
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
Finish Options
Product
Number
Description
Town Square Widespread with Metal Speed Connect
2555.821 Metal Lever handles.
®
Polished
Chrome
Oil
Rubbed
Bronze
PVD
Satin
Nickel
002
224
295
Pop-up drain.
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
AERATOR MODIFICATIONS***
Parts
Suffix**
0.5gpm (1.9Lpm) PCA* Spray
___F05
1.0gpm (3.8Lpm) PCA Aerator
___F10
AVAILABLE MODIFICATIONS***
Less Pop-Up Drain; Less Hole
Part
Suffix**
__LDH
*PCA — Pressure Compensating
**To modify a product, add suffix after the 4th digit (ex. 2064F05101.002)
***Modified product models are NOT WaterSense certified.
© 2013 AS America, Inc.
C62
Revised 6/13
