BUILDING MATERIALS

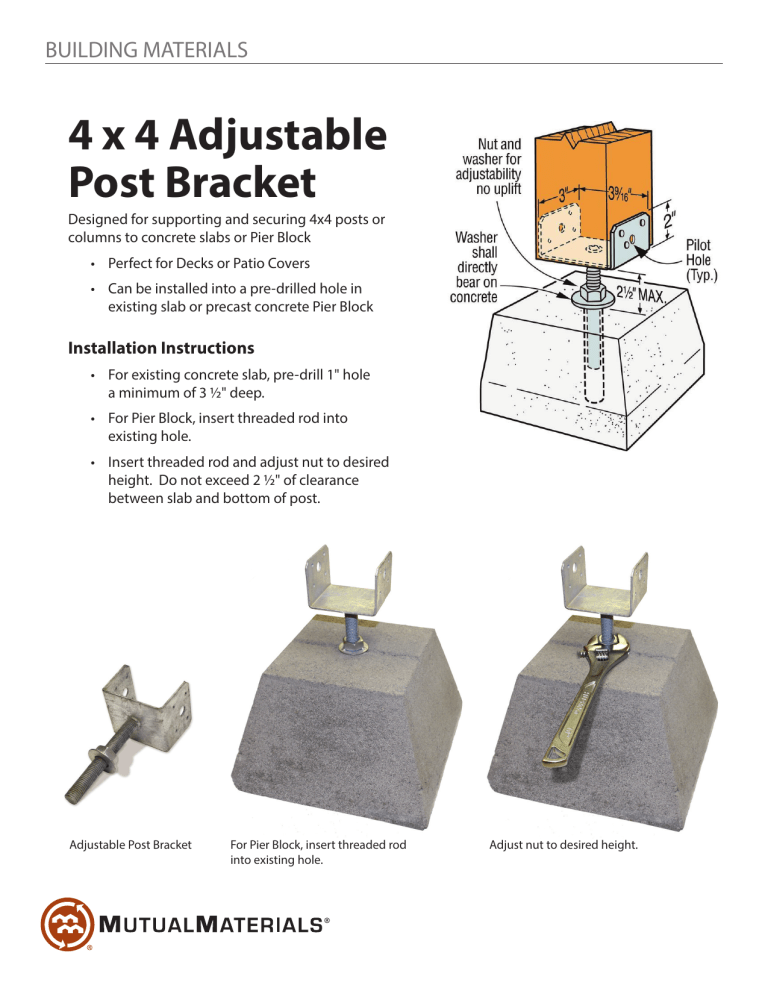

4 x 4 Adjustable
Post Bracket
Designed for supporting and securing 4x4 posts or
columns to concrete slabs or Pier Block
• Perfect for Decks or Patio Covers
• Can be installed into a pre-drilled hole in
existing slab or precast concrete Pier Block
Installation Instructions
• For existing concrete slab, pre-drill 1" hole
a minimum of 3 ½" deep.
• For Pier Block, insert threaded rod into
existing hole.
• Insert threaded rod and adjust nut to desired
height. Do not exceed 2 ½" of clearance
between slab and bottom of post.
Adjustable Post Bracket
For Pier Block, insert threaded rod
into existing hole.
Adjust nut to desired height.
