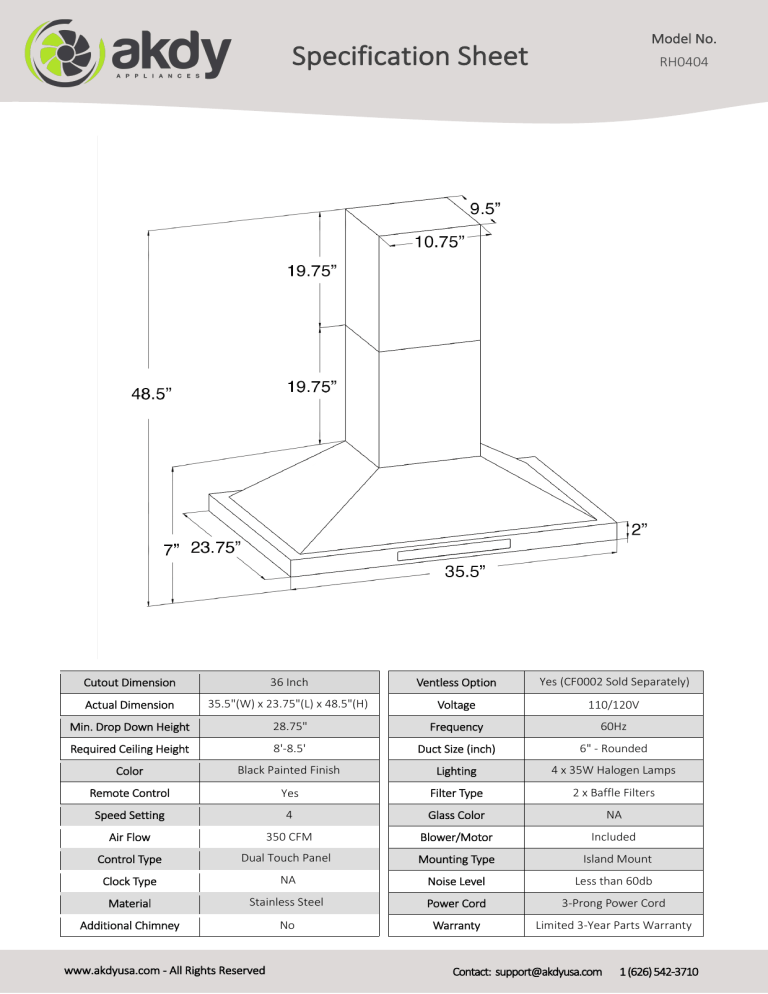

AKDY RH0404 Specification

AKDY RH0404 Specification
Model No.
Specification Sheet
RH0404
Cutout Dimension
36 Inch
Ventless Option
Yes (CF0002 Sold Separately)
Actual Dimension
35.5"(W) x 23.75"(L) x 48.5"(H)
Voltage
110/120V
Min. Drop Down Height
28.75"
Frequency
60Hz
Required Ceiling Height
8'-8.5'
Duct Size (inch)
6" ‐ Rounded
Color
Black Painted Finish
Lighting
4 x 35W Halogen Lamps
Remote Control
Yes
Filter Type
2 x Baffle Filters
Speed Setting
4
Glass Color
NA
Air Flow
350 CFM
Blower/Motor
Included
Control Type
Dual Touch Panel
Mounting Type
Clock Type
NA
Noise Level
Less than 60db
Material
Stainless Steel
Power Cord
3‐Prong Power Cord
Additional Chimney
No
Warranty
Limited 3‐Year Parts Warranty
www.akdyusa.com - All Rights Reserved
Island Mount
Contact: [email protected]
1 (626) 542-3710
