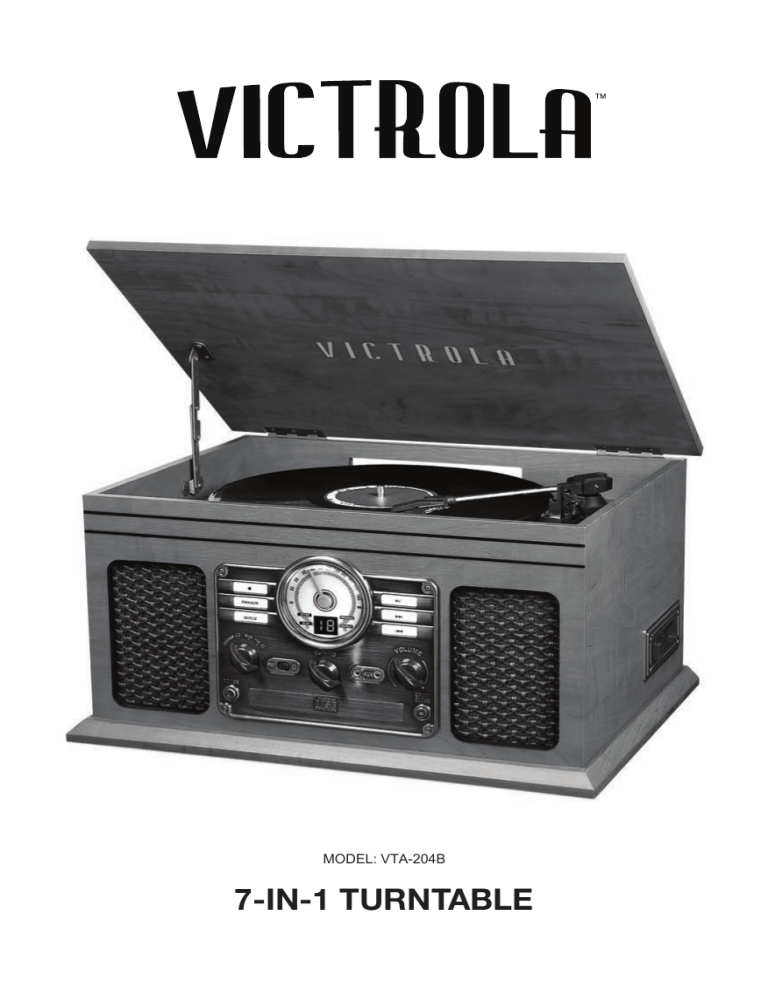

MODEL: VTA-204B
7-IN-1 TURNTABLE
Important Safety Instructions ......................................................................................................................... 3
Product Overview .......................................................................................................................................... 4
Setup / Basic Operation................................................................................................................................. 7
Listening to a Vinyl Record ............................................................................................................................ 7
Listening to a CD ........................................................................................................................................... 8
Listening to the FM Radio.............................................................................................................................. 9
Listening to an External Audio Device (AUX Mode) ...................................................................................... 9
Listening to an External Audio Device (Bluetooth Mode) ............................................................................ 10
Listening to a Cassette Tape ....................................................................................................................... 10
USB Recording Operation ........................................................................................................................... 10
Maintenance / Proper Handling ................................................................................................................... 11
Specifications .............................................................................................................................................. 12
Troubleshooting Guide ................................................................................................................................ 13
FCC Statement and other warnings ............................................................................................................ 15
2
Important Safety Instructions
WARNING: To prevent electric shock, do not use this (polarized) plug with an extension cord, receptacle
or other outlet unless the blades can be fully inserted to prevent blade exposure
WARNING: Invisible laser radiation when open and interlock failed or defeated. Avoid direct
exposure to laser beam.
PRODUCT COMPLIES WITH DHHS RULE 21 CFR SUBCHAPTER J IN EFFECT AT DATE
OF MANUFACTURE
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
Read these instructions – All the safety and operating instructions should be read before this product
is operated.
Keep these instructions – The safety and operating instructions should be retained for future reference.
Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
Follow all instructions – All operating and use instructions should be followed.
Do not use this apparatus near water – The appliance should not be used near water or moisture – for
example, in a wet basement or near a swimming pool, and the like.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades
with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at the plugs,
convenience receptacles, and at the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart or rack is used, use
caution when moving the cart/apparatus combination to avoid injury from
tip-over.
Unplug the apparatus during lighting storms or when unused for long periods of time.
Refer all servicing to qualified personnel. Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
- This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the
presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock.
- Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no user
serviceable parts inside. Refer servicing to qualified personnel.
‐ The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance instructions in the literature accompanying the appliance.
3
16.
17.
18.
19.
or double insulated electrical appliance. It has been designed
This equipment is a Class
in such a way that it does not require a safety connection to electrical earth.
The mains plug is used as disconnect device, the disconnect device shall remain readily operable.
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The
apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as
vases, shall not be placed on apparatus.
Use the equipment in a moderate climate.
ACCESSORIES INCLUDED
•
RCA LINE OUT CABLE
•
INSTRUCTION MANUAL
•
WARRANTY (BACK OF MANUAL)
•
45 RPM ADAPTER
•
USB CABLE
•
AUDACITY SOFTWARE CD
Product Overview
Front View
1. POWER
Push to turn the unit ON or OFF.
2. “PHONO, CD, AUX, FM/
” SELECTION KNOB Rotate to select your desired function.
“FM”, “ ” SLIDE SWITCH Slide to select either FM or Bluetooth.
3.5mm AUX IN JACK Connects your external source to the AUX IN jack.
PLAY INDICATOR Illuminates when CD is playing.
ST/BT INDICATOR Blue light flashes when the unit is waiting for pairing. Blue light stays lit when
the external device is connected to the unit. Red light illuminates when station is received in
stereo playing mode.
7. PROGRAM INDICATOR Illuminates when the program playback is set.
8. REPEAT INDICATOR Red light stays lit when all tracks repeat. Red light flashes when a single
track is repeating.
(Note: This indicator only works in CD mode.)
3.
4.
5.
6.
4
9. LED DISPLAY
10. TUNING DIAL POINTER
11. STEREO SPEAKERS
12. STOP
Press to stop playback or cancel the program setting.
13. PLAY/PAUSE
Press to start playback, press again to pause.
(Note: This button only works in CD, Bluetooth mode.)
14. OPEN/CLOSE
In CD mode, use to open and close the disc tray.
15. DISC TRAY
16. “VOLUME” KNOB Turn to adjust volume.
)
/
17/18. NEXT/PREVIOUS TRACK & FF/REWIND (
In CD Mode, press once to skip to the next/previous track. Press and hold to fast forward/rewind.
(Note: This button will not work in PHONO, FM, AUX mode)
19. “PROGRAM” Press to set the program playback.
(Note: This indicator only works in CD mode.)
20. “REPEAT” Press to select the repeat mode.
(Note: This indicator only works in CD mode.)
21. RADIO TUNER KNOB In FM mode, turn to tune in a station.
22. 3.5mm EARPHONE JACK
Accepts headphone/earphone plugs.
Right Side View
23. CASSETTE FF & EJECT Press halfway to fast forward, press all the way to end and eject
the tape.
5
Rear View
24. FM Wire Antenna
While tuned to a station in FM mode, extend the wire and reposition to adjust for best reception.
25. Line Out Jacks
For amplifier device with RCA auxiliary input sockets, insert the white and red plugs on the RCA
cable into the unit. Insert the opposite end into the amplifier device. Be sure to connect the white
plug to the white jack and the red plug to the red jack.
2 6 . A C P o w e r C o rd
Connect the AC plug into a wall outlet.
It is strongly recommended that this product should be operated only from the type of power
source indicated on the marking label.
27. USB Jack Connect the turntable to your computer by using an included USB Cable.
Parts of the Turntable
A. Turntable.
B. Safety Screw (for transport) Before using the unit, turn the screw clockwise using a coin or
screwdriver.
Important: When you transport the unit, turn the screw counterclockwise to secure the turntable.
C. Speed Selector.
D. Tone Arm holder.
E. Tone Arm. Before use, completely loosen the twist tie on the tone arm and lift the tone
arm up.
F. STYLUS .
G. 45 RPM adaptor.
H. Cue Lever.
6
Setup / Basic Operation
Setup
1. Remove white protective needle cover by gently pulling towards front of unit.
2. Remove any packaging materials from the unit.
3. Connect the AC power cord
to a wall outlet.
Note:
-It is strongly recommended that this product should be operated only from the type of power source
indicated on the marking label.
-To prevent interference, avoid bundling audio signal cables together with the AC power cord.
Basic Operation
1. Push the POWER button to turn the unit on.
2. Select the source by turning the selection knob (PHONO/AUX/CD/FM/BT).
3. Rotate the VOLUME knob to adjust to the desired sound level.
Listening through RCA LINE OUT
For amplifier device listening, first reduce the volume level to minimum. Insert the white and red
plugs on the RCA cable into the unit, then insert the opposite end into the amplifier device. Be sure to
connect the white plug to the white jack and the red plug to the red jack.
Listening through Headphones (not included)
For private listening, first reduce the volume level to minimum.
Insert your headphones’ plug into the 3.5mm jack, then
adjust the volume up by turning the VOLUME knob.
Note: The speakers will automatically be deactivated while
headphones are plugged in.
CONDENSATION WARNING:
When the unit is moved from a cold or warm place, or is used following a sudden temperature change, there is the
danger that water vapor in the air may condense on the unit, preventing proper operation. In such cases, leave the
unit for 1-2 hours after plugging it into an AC outlet to allow it to stabilize at the temperature of its surroundings.
Listening to a Vinyl Record
1.
2.
3.
4.
5.
6.
7.
8.
7
9.
10.
11.
Important:
- Closing the top cover will help prevent dust from settling on the turntable.
- Always relock the tone arm clip before transporting the unit.
- Do not place anything on top of the turntable cover, especially while playing a record.
Listening to a CD
1. Select “CD” function.
(Note: When no disc is set, “no” will appear on the display.)
2. Press the OPEN/CLOSE ( ) button
(Note: This button only works in CD mode.)
3. Place a disc on the tray with the printed label face up.
4. Press the OPEN/CLOSE button ( ) to close the tray.
5. Press the PLAY/PAUSE button ( ) to begin playback.
(Note: The CD playback will start automatically.)
6. To temporarily pause playback, press the PLAY/PAUSE button ( ). Press again to resume.
7. To skip tracks forward or backward, press the corresponding skip button (
or
).
Pressing
once will restart the current track. Pressing
twice in succession will return.
to the beginning of the previous track.
8. To fast forward / rewind within a track, press and hold down the corresponding skip button until
the desired position is reached.
9. To stop playback, press the STOP
button
Important:
- Never place more than one disc on the tray.
- The disc must be placed in the center of the disc tray. An incorrectly loaded disc can permanently
damage the tray door mechanism.
- Do not push the CD tray – always use the OPEN/CLOSE button.
- It takes a moment for the unit to load a disc, during which all buttons will be temporarily
deactivated.
Repeat Playback
Each time the REPEAT button is pressed, the repeat mode will cycle through the following options:
REPEAT 1(Repeat one track)
The repeat indicator will flash and the current track will be played repeatedly. If you press the (
or
) button to select another track, the track you select will be played repeatedly.
REPEAT ALL (Repeat the entire CD)
The repeat indicator will stay lit and the entire CD will be played repeatedly.
Notes:
- Repeat playback works with CD discs only.
8
Programmed Playback
Up to 20 tracks can be programmed to play in the desired order.
Notes:
- Programmed playback works with CD discs only.
1. Select “CD” mode, then load a CD.
2. While the CD is stopped, press the PROGRAM button.
3. “PROGRAM” indicator lights up and “01” blinks on the display.
4. Press (
or
) to select a track number.
5. Press the PROGRAM button again to set the next program track, “02” appears and blinks.
Repeat steps 4 thru 5 to program the additional tracks.
6. When the selection of track numbers has been finished, press the PLAY button ( ) to start
program playback.
(Note: When all 20 program tracks are set, you press PROGRAM button and “FI ” will appear on the
display)
7. To cancel the program mode, press the STOP ( ) till the program indicator won’t light.
To check the programmed order
In the stop mode, press (
or
programmed.
) repeatedly to show the track numbers which have been
To add a track to the end of the programmed order:
In the stop mode, press the PROGRAM button.
Select a track number by pressing (
or
), then press the PROGRAM button.
The current track will be added to the end of the program.
Listening to the FM Radio
1. Select “FM/ ” mode.
2. Slide the slide switch on “FM”.
3. Tune to the desired station using the Radio Tuner Knob.
Note: In FM Mode, the “ST/BT” indicator lights up red when tuning in the stereo reception station.
Adjusting for Best Reception
FM broadcast: Extend and reposition the FM antenna.
Listening to an External Audio Device (AUX Mode)
In AUX (auxiliary) mode, this unit can play audio from an external audio source (iPod, MP3 Player,
Portable CD Player, etc.)
(not included) into the 3.5mm
9
Listening to an External Audio Device (Bluetooth Mode)
In BT (Bluetooth) mode, this unit can play music from external devices which have a built-in
Bluetooth feature.
GETTING CONNECTED USING BLUETOOTH
1. Select “FM/
” mode.
2. Slide the slide switch on “ ” and the ST/BT indicator will flash blue.
3. Turn ON the Bluetooth function on your external device.
NOTE: The effective distance between your external device and this apparatus is 10 meters (33ft).
4. Wait for “VTA-204B” to appear on the paired devices list of your external device and
press “VTA-204B”.
In some instances: a window will ask you a password. Fill in “0000” then press “OK” on your
external device.
5. A few seconds later your Bluetooth connection is successful and the blue indicator stays lit.
6. Press the PLAY/PAUSE button ( ) to begin playback.
7. To temporarily pause playback, press the PLAY/PAUSE button ( ). Press again to resume.
8. To skip to the previous or next tracks, press the corresponding skip button (
or
) to
listen.
NOTE: Stop, fast forward / rewind are only available on your external device.
Listening to a Cassette Tape
1. Load an audio cassette tape into the unit (located on the left side of the unit). Playback will
automatically begin.
2. Press button halfway to Fast Forward the tape.
Press button lightly and playback will resume.
3. Press button completely down to end playback and eject tape.
NOTE: When loading in a cassette tape, the SELECTION KNOB function will be temporarily
overridden until the cassette tape is ejected.
USB Recording Operation
To properly record your vinyl to MP3 via computer, use the included USB Output Cable and
Instructional CD Software. Connect one end of the USB cable to the turntable (USB jack on the back
of the unit) and the other end into your computer. Then connect the AC power cord to the turntable.
To install and use the software on your computer, select the proper Mac or PC install files, then follow
the prompts provided on the Instructional CD. For the most up to date manuals, software, instructional
details, troubleshooting or other downloadable content, please go to http://audacityteam.org
10
Maintenance / Proper Handling
Compact Disc Handling
• Always place the disc on the disc tray with the label side facing upward (compact discs can be played/recorded
only on one side)
• To remove a disc from its storage case, press down on the center of the case and lift the disc
upward, holding it carefully by its edges.
• To clean a disc, wipe the surface from the center hole outward towards the outer edge with a soft, dry cloth.
• Never use such chemicals as record spray, antistatic sprays or fluid, benzine or thinner to clean discs; they will
irreparably damage the disc’s plastic surface.
• Discs should be returned to their cases after use to protect from dust and scratches.
• Do not expose discs to direct sunlight, high humidity, or high temperature for extended periods of time.
• Printable CD-R and CD-RW discs are not recommended, as the label side may become sticky and damage the
unit.
• Use a soft oil-based felt-tipped pen to write information on the label side. Never use a ball-point or hard-tipped
pen, as doing so may damage the recorded side.
• Do not use irregularly-shaped CDs (octagonal, heart shaped, business card size, etc),
as they will damage the unit.
• Read all precautions supplied with any CD-R or CD-RW disc
• Never handle a disc with dirty fingers.
• Never insert a disc that has a crack on the surface.
Handling Vinyl Records
• Do not touch the record’s grooves. Only handle records by the edges or the label with clean hands. Touching
the record surface will cause your record’s quality to deteriorate.
• To clean a record, use a soft anti-static cloth to gently wipe the record surface.
• Keep records in their protective sleeves when not in use.
• Always store records upright on their edges
• Avoid placing records in direct sunlight, close to a heat source (radiators, stoves, etc.), or in a location subject
to vibration, excessive dust, heat, cold or moisture.
General Care
• When removing the power plug from the wall outlet, always pull directly on the plug.
Never pull the cord.
• To keep the laser pickup clean, do not touch it, and do not forget to close the disc tray.
• Do not attempt to clean the unit with chemical solvents as this might damage the finish.
• For cleaning, only use a clean, dry cloth.
• In order to shut off the power to this product completely, unplug the power cord from the
wall outlet. Be sure to unplug the unit if you do not intend to use it for an extended period
of time.
How to Replace the Turntable Stylus (Replacement Needle # ITNP-S1)
The stylus should last about 50 hours under normal use. However, it is recommended that the stylus
be replaced as soon as you notice a change in sound quality. Prolonged use of a worn-out stylus
may damage the record. The highest speed of 78 RPM records would wear
out the stylus more quickly.
Removing the old stylus:
1. Set a screwdriver at the tip of the stylus and push downward (A).
2. Remove the stylus by pulling it simultaneously downward and forward.
Installing a new stylus:
1. Hold the front tip of the stylus and insert its rear edge (B) first.
2. Push the stylus upwards (C) until the tip locks into place.
Caution:
Do not bend the stylus.
Do not touch the needle to avoid injury your hand.
Turn off the unit’s power before you replace the stylus.
Keep out of reach of children.
11
Specifications
GENERAL
Power Requirements
Power Consumption
Dimensions (W x H x D)
Weight
AC 120 V~ 60 Hz
30W
460 x 255 x 340mm | 18 x 10 x 13.4in (approx.)
7 kg. | 16 lbs (approx.)
AMPLIFIER
Output Power
Frequency Response
5W+5W
60 to 20,000 Hz
SPEAKER SYSTEM
Type
Impedance
Output Power
2-way
8 ohms
Max. 6W
FM Radio
Range
88 to 108 MHz
CD PLAYER
Frequency Response
Signal-to-Noise Ratio
60 to 20,000 Hz +/-4 dB
55 dB (IEC-A)
CASSETTE PLAYER
Track System
Tape Speed
Wow and Flutter
Frequency Response
4 Track, 2 channel stereo
4.8 cm/sec
0.4% (WRMS)
125 to 6300 Hz +/-6 dB
RECORD PLAYER
Motor
Drive System
Speeds
S/N Ratio
Cartridge Type
Stylus
DC servo motor
Belt Drive
33-1/3 rpm, 45 rpm and 78 rpm
More than 50 dB
Ceramic Stereo Cartridge
ITNP-S1
BLUETOOTH
Bluetooth Version
Bluetooth Profiles
Bluetooth Frequency range
Operating Distance
Bluetooth V4.1
A2DP, AVRCP
2.402GHz-2.480GHz
10 meters (33 ft.)
12
Troubleshooting Guide
Symptom
Possible Cause
Solution
• Unit
will not power on.
• Unit
• Connect
sound output from
speakers.
• The
• The
TAPE
GENERAL
• No
• Noise/Distortion
FM RADIO
CD PLAYER
unit is too close to a TV set
or another interfering device.
cassette tape is not
inserted properly.
• The tape has reached the end.
• The
station is not tuned-in
properly.
• A TV set is being used nearby
and is interfering with the radio
reception.
• The antenna is not oriented
properly.
• Properly
• CD
stops immediately
after starting, or unit
pauses or stops during
play.
• No sound.
• The
• Insert
• CD
• The
fails to respond.
• It
• The
tape does not play.
• The
listen to any
station, or signal
appears weak.
• The
sound is distorted.
playback is noisy,
or playback stops or
skips.
• CD
tray will not open.
might result from external
factors such as ESD
(Electro-static discharge).
CD is inserted upside
down.
• The CD is dusty or dirty or there
is condensation on the CD.
• The CD player is paused.
• Turn
tune-in the
desired station.
• Turn-off the interfering TV
set.
• Re-orient
the antenna until
reception improves.
CD is scratched, damaged
or warped.
• The disc is very dirty.
the CD with the
printed side right-side up.
• Carefully clean and dry the
CD.
• Press the PLAY/PAUSE
button.
• Replace CD with an
undamaged one.
• Carefully clean the CD.
• AM/FM
• Select
• Decline
unit is processing
information (“--- Busy” is
displayed)
• The unit needs to be restarted
• The turntable stylus is worn out
AUX, PHONO, CD,
or TAPE mode.
• Wait until the unit finishes
processing.
• Turn the unit off, then on
again.
• Replace the stylus.
• No
• Both
• Unplug
• Buttons
are not
functioning correctly.
PHONO
• The
• Unit
• Cannot
AUX
volume level is set too low.
input selector does not
match the playback source.
the unit to the AC
power supply.
• Adjust the volume.
• Select the correct input
source.
off the TV or other
appliance, and relocate
the unit.
• Disconnect the power cord
and external audio device.
Re-plug the power cord
after one minute.
• Insert the cassette tape
correctly.
• Flip the cassette.
sound output.
in
is unplugged.
in turntable
audio performance
sound output with
external audio device
plugged into rear AUX
in jack.
mode is selected.
• The
AUX in jacks (front and
rear) are plugged.
13
Jack.
the front AUX in
Bluetooth
• No
sound
• Sound
has a lot of static
• Unable
to pair with a
Bluetooth device
• The
unit is not switched to
Bluetooth mode
• Your device’s and/or the unit’s
volume is not turn up.
• Your device is too far from the
unit or there’re some obstacle
between your device and the
unit
• Your
device is too far away
• Your
device doesn’t have
Bluetooth connectivity.
• The Bluetooth pairing is not
successful
• Ensure
the unit is switched
to BT mode.
• Move your Bluetooth
device closer to unit
• Turn up the volume on
your portable device
and/or the unit.
• Turn OFF your Bluetooth
device and unit. Then
power them both back ON
• Bring your device closer to
the turntable
• Confirm that your device is
Bluetooth compatible.
• Re-pair the unit and device
again.
For further assistance with your product, call Victrola at
TOLL FREE# 1-877-ITECH-97 (1-877-483-2497).
Please note: As a result of continual improvements, the design and specifications of this product are subject to
change without notice.
Made in China.
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Other trademarks and trade names are those of their respective owners.
14
FCC WARNING
Warning: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-
-
-
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation. FCC Radiation Exposure
Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm between
the radiator & your body.
CALIFORNIA PROP 65 WARNING
WARNING: This product can expose you to chemicals including lead, which is known to the
State of California to cause cancer and birth defects or other reproductive harm. For more
information go to www.P65Warnings.ca.gov.
IC WARNING
-English:
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science
and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
-French:
Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS)
d'Innovation, Sciences et Développement économique Canada. L'exploitation est autorisée aux
deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
Cet appariel est conforme à FCC et IC l’exposition aux rayonnements limites fixées pour un
environnement non contrôlé. Cet appariel doit être installé et utilisé avec une distance minimale de
20 cm entre le radiateur et votre corps. Cet transmetteur ne doit pas être co-situé ou opérant en
liaison avec toute autre antenne ou transmetteur.
15
Victrola is a registered trademark of Innovative Technology Electronics LLC.
Innovative Technology Electronics LLC.
Limited Warranty: 90 Days Labor, One Year Parts
Innovative Technology Electronics LLC. (IT) warrants the product to be free from “Defects” in
materials under normal use for a period of “One Year” from the date of the original purchase. The
Warranty is “Not” transferable. IT agrees, within the initial “90 Day” period, to repair or replace the
product if it is determined to be defective at “No Charge”. It is further agreed that IT will cover the cost
to repair or replace damaged “Parts” only for a total period of “One Year” from the date of the original
purchase. The warranty does not cover cosmetic damage, antennas, AC cords, cabinets,
headbands, ear-pads, or damage due to line power surges, connection to improper voltage supply or
settings, misuse, mishandling, accident, acts of God or attempted repair by an unauthorized service
agent. To obtain service, the purchaser MUST present an original sales receipt / proof of
purchase. Please contact us at www.victrola.com to request an RMA (Return
Material Authorization) number to return products for service or replacement. Returns
without an RMA number on the package will be refused and returned to sender. Upon receipt of the
returning item and our full inspection (IT) may issue a replacement to customer for the same item or
of one that has equivalent value and features. To return an item, supply full name, return address,
phone number, item purchased, receipt of purchase and reason for return to obtain RMA number.
All returns must be in the original packaging or reasonable substitute to prevent damage.
Customer “Must” include full name, shipping address and telephone number inside of package. No
return will be shipped back to a PO Box or APO address.
Please include your check or money order in the amount of
• USD$5.00 for items $10.00 to $39.99 (Price Paid Per Unit)
• USD$10.00 for items $40.00 to $99.9 (Price Paid Per Unit)
• USD$16.00 for items $100.00 and up (Price Paid Per Unit)
• Shipping fees are non-refundable
to be payable to Innovative Technology Electronics LLC. (for handling and return
shipping charges) (IT) will not be responsible for delays or unprocessed claims resulting
from a purchaser’s failure to provide any / all of the necessary information.
Send all inquiries or RMA request via our website www.victrola.com/pages/technical-support.
Innovative Technology Electronics LLC.
1 Channel Drive, Port Washington, NY 11050
Toll free: 1-877-483-2497
Website for support: www.victrola.com/pages/technical-support
There are no express warranties except as listed above.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CUSTOMER, (IT) SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON
THIS PRODUCT EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS
PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or
limitations on how long an implied warranty lasts, so the above exclusions or limitations may not
apply to you. This warranty gives you specific legal rights and you may also have other rights, which
vary from state to state.
16
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
