ZLINE Kitchen and Bath KL3i-36 Specification

ZLINE Kitchen and Bath KL3i-36 Specification

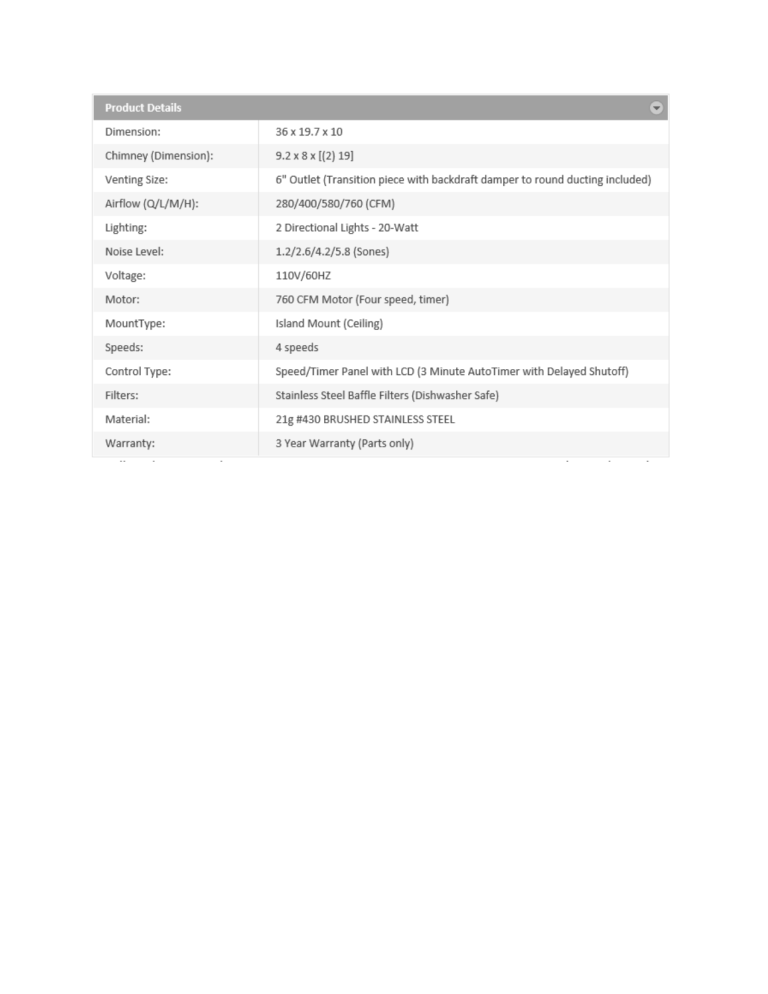

 Product Details +
Dimension: 36 x 19.7 x 10
Chimney (Dimension): 3.2 x 8 x [[2) 19]
venting Size: 6 Outlet (Transition piece with backdraft damper to round ducting included)
Airflow (Q/L/m/H): 280/400/580/760 [CFM)
Lighting: 2 Directional Lights - 20-Watt
Noise Level: 1.2/2.6/4.2/5.8 (Sones)
Voltage: 110V/60HZ
Motor: 760 CFM Motor (Four speed, timer)
MountType: Island Mount (Ceiling)
Speeds: 4 speeds
Control Type: Speed Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Filters: Stainless Steel Baffle Filters {Dishwasher Safe]
Material: 21g #430 BRUSHED STAINLESS STEEL
Warranty: 3 Year Warranty (Parts only)
