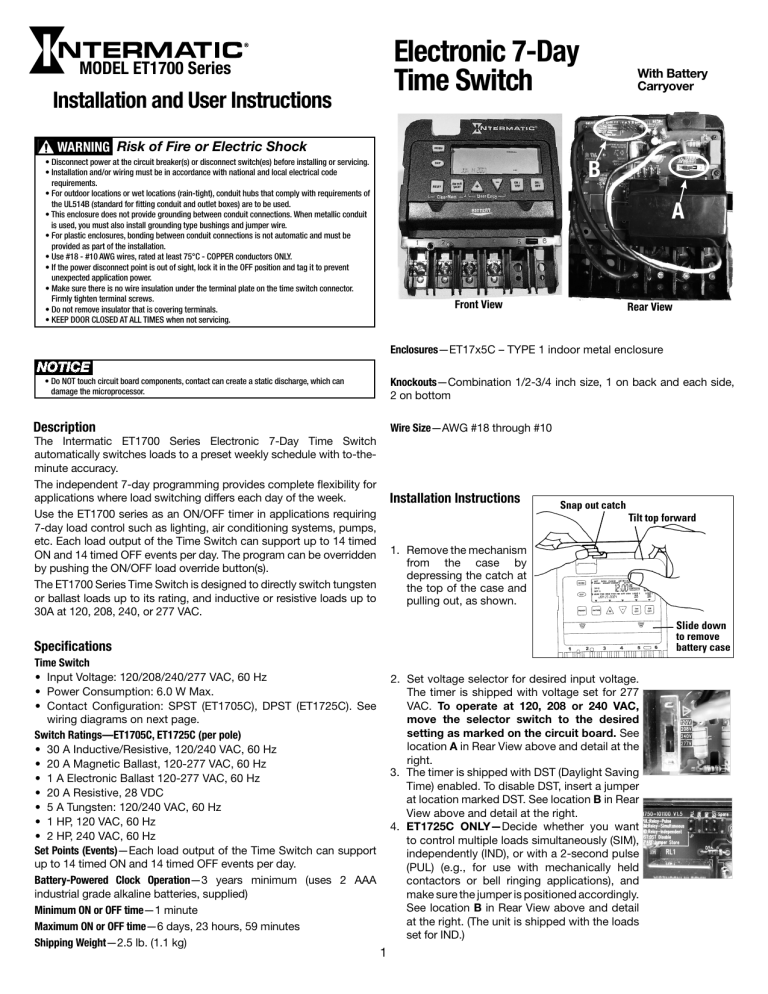

Electronic 7-Day
Time Switch
MODEL ET1700 Series
Installation and User Instructions
With Battery
Carryover
WARNING Risk of Fire or Electric Shock
B
• Disconnect power at the circuit breaker(s) or disconnect switch(es) before installing or servicing.
• Installation and/or wiring must be in accordance with national and local electrical code
requirements.
• For outdoor locations or wet locations (rain-tight), conduit hubs that comply with requirements of
the UL514B (standard for fitting conduit and outlet boxes) are to be used.
• This enclosure does not provide grounding between conduit connections. When metallic conduit
is used, you must also install grounding type bushings and jumper wire.
• For plastic enclosures, bonding between conduit connections is not automatic and must be
provided as part of the installation.
• Use #18 - #10 AWG wires, rated at least 75°C - COPPER conductors ONLY.
• If the power disconnect point is out of sight, lock it in the OFF position and tag it to prevent
unexpected application power.
• Make sure there is no wire insulation under the terminal plate on the time switch connector.
Firmly tighten terminal screws.
• Do not remove insulator that is covering terminals.
• KEEP DOOR CLOSED AT ALL TIMES when not servicing.
A
Front View
Rear View
Enclosures—ET17x5C – TYPE 1 indoor metal enclosure
NOTICE
Knockouts—Combination 1/2-3/4 inch size, 1 on back and each side,
2 on bottom
• Do NOT touch circuit board components, contact can create a static discharge, which can
damage the microprocessor.
Description
Wire Size—AWG #18 through #10
The Intermatic ET1700 Series Electronic 7-Day Time Switch
automatically switches loads to a preset weekly schedule with to-theminute accuracy.
The independent 7-day programming provides complete flexibility for
applications where load switching differs each day of the week.
Use the ET1700 series as an ON/OFF timer in applications requiring
7-day load control such as lighting, air conditioning systems, pumps,
etc. Each load output of the Time Switch can support up to 14 timed
ON and 14 timed OFF events per day. The program can be overridden
by pushing the ON/OFF load override button(s).
The ET1700 Series Time Switch is designed to directly switch tungsten
or ballast loads up to its rating, and inductive or resistive loads up to
30A at 120, 208, 240, or 277 VAC.
Installation Instructions
Snap out catch
Tilt top forward
1.Remove the mechanism
from the case by
depressing the catch at
the top of the case and
pulling out, as shown.
Slide down
to remove
battery case
Specifications
Time Switch
• Input Voltage: 120/208/240/277 VAC, 60 Hz
• Power Consumption: 6.0 W Max.
• Contact Configuration: SPST (ET1705C), DPST (ET1725C). See
wiring diagrams on next page.
Switch Ratings—ET1705C, ET1725C (per pole)
• 30 A Inductive/Resistive, 120/240 VAC, 60 Hz
• 20 A Magnetic Ballast, 120-277 VAC, 60 Hz
• 1 A Electronic Ballast 120-277 VAC, 60 Hz
• 20 A Resistive, 28 VDC
• 5 A Tungsten: 120/240 VAC, 60 Hz
• 1 HP, 120 VAC, 60 Hz
• 2 HP, 240 VAC, 60 Hz
Set Points (Events)—Each load output of the Time Switch can support
up to 14 timed ON and 14 timed OFF events per day.
Battery-Powered Clock Operation—3 years minimum (uses 2 AAA
industrial grade alkaline batteries, supplied)
Minimum ON or OFF time—1 minute
Maximum ON or OFF time—6 days, 23 hours, 59 minutes
Shipping Weight—2.5 lb. (1.1 kg)
2.Set voltage selector for desired input voltage.
The timer is shipped with voltage set for 277
VAC. To operate at 120, 208 or 240 VAC,
move the selector switch to the desired
setting as marked on the circuit board. See
location A in Rear View above and detail at the
right.
3.The timer is shipped with DST (Daylight Saving
Time) enabled. To disable DST, insert a jumper
at location marked DST. See location B in Rear
View above and detail at the right.
4.ET1725C ONLY—Decide whether you want
to control multiple loads simultaneously (SIM),
independently (IND), or with a 2-second pulse
(PUL) (e.g., for use with mechanically held
contactors or bell ringing applications), and
make sure the jumper is positioned accordingly.
See location B in Rear View above and detail
at the right. (The unit is shipped with the loads
set for IND.)
1
5.Mount the enclosure in the desired location using the 3 mounting
holes provided.
9.
Insert the wire ends under the proper terminal plates (see
wiring diagrams elsewhere on this page) and tighten the
screws firmly.
10. Connect ground wire to grounding terminal at bottom of enclosure.
11. Replace the plastic insulator on the retaining post.
12.Remove the battery case by sliding it down as shown by the
arrows, then install 2 AAA alkaline batteries. Make sure the
batteries are pointing in the direction shown.
13. Verify that the display is ON to make sure the batteries are OK.
If the display shows scrambled information, press the RESET
button to clear it up.
14. Apply power to the Time Switch.
Mounting holes
IMPORTANT: Press and hold the ENTER button, then press the
RESET button. The screen will flash 12:00 AM and MON, and
timer status is Manual Mode.
NOTE: You must reset the time switch using this procedure
whenever you change the jumpers.
Knockouts
osition at eye level if possible, providing space to the left of the
P
enclosure for the cover to swing open fully, as shown.
6. Replace the mechanism in the enclosure.
7.Lift the left side of the plastic insulator off the retaining post and
pivot it up and away to expose the terminal strip.
8.Strip the supply and load wires to 1/2”. Use #18 #10 AWG wires, rated at least 75°C - COPPER
conductors ONLY.
The Time Switch is now ready for programming.
Wiring Diagrams
Timer Power
Timer Power
1
2
3
1
4
2
3
4
5
6
L2/N
Neutral
Hot
Install jumper
only if timer input
and load voltage
are the same
Load
120VAC
Input
ET1705 configured for SPST, 120 VAC load
Timer Power
1
Line 2
Line 1
240VAC Input
2
3
4
5
6
Line 1
4
5
6
Line 1
120/208/240/277
VAC Input
Install jumper only if timer input
and load voltage are the same
OFF
ON
ET1725 configured for pulse SPST load
with jumper set to PUL
3
4
5
120/208/240/277
VAC Input
Line
1
Load
1
Line
2
Load
2
ET1725 configured for 2 SPST loads
with jumper set to IND
6
L2/N
Line 2
Install jumper only if timer input
and load voltage are the same
3
L2/N
Line 1
Timer Power
2
1
Timer Power
2
1
Line 1
Load
ET1725 configured for 240 VAC DPST load
with jumper set to SIM
120/208/240/277
VAC Input
Line
1
Load
1
Line
2
Load
2
ET1725 configured for DPST loads
with jumper set to SIM
Programming Overview
Setting Date
By pressing the MODE button, the Time Switch will cycle through the
menus necessary for programming the current time, date, and timed
events.
The basic procedure is to use the MODE button to move from one
menu to the next (e.g., DATE, TIME, etc.), the + or – buttons for the
first part of a setting (e.g., MONTH), the ENTER button to move to the
next part of the setting (e.g., YEAR), then MODE to exit and move to
the next menu. To skip a menu, press MODE to move ahead.
If you make a mistake, press the MODE button repeatedly to
cycle back around to the error, then make the correct entry.
NOTE: DATE and TIME must be set before you can access any
other programming menus.
1. Press the MODE button repeatedly until the words SET and
DATE appear in the upper area of the display.
2. Press the + or – buttons to enter the current Month.
3. Press the ENTER button when the Month is correct to save the
setting. The screen advances to current Date.
4. Again press the + or – buttons to enter the current Date,
followed by the ENTER button.
5. Repeat to set the correct Year.
6. Press the MODE button to exit and advance to setting the time.
2
Setting Time
Operating the Time Switch
1.If necessary, press the MODE button repeatedly until the
words SET and CLOCK appear in the upper area of the
display.
2. Press the + or – buttons to enter the current time.
NOTE: To go from AM to PM, keep pressing the + or – buttons
to cycle through the day. You can hold the + or – buttons
down for 3 seconds to make the time scroll quickly.
3. Press the MODE button to exit and advance to setting Events.
Press the MODE button repeatedly to select the desired operating
mode on the display. There are 2 options:
•AUTO—where the Time Switch follows the events you have
programmed, turning the circuits ON and OFF at the time(s)
set.
NOTE: You can override programmed events and force the
Time Switch ON or OFF by pressing the ON/OFF button.
•MANUAL—where any events set are disabled and the Time
Switch controls all circuits through the ON/OFF button.
NOTE: You can review or edit any programmed events at any
time by pressing the MODE button repeatedly to return to the
appropriate menu, then following programming instruction
provided on this sheet.
Setting ON/OFF Events
1.If necessary, press the MODE button repeatedly until the
words SET ON/OFF EVENTS and EVENT 01 appear on the
display.
2.If necessary, press the ENTER button to display ON @ or
OFF @ (depending on what you want to set).
3.Press the DAY button to display 12:00 am and all days of the
week.
4. Press the + or – buttons to enter the time you want to set.
NOTE: To go from AM to PM, keep pressing the + or – buttons
to cycle through the day. You can hold the + or – buttons
down for 3 seconds to make the time scroll quickly.
5.If you want the Event to occur for a combination of days
rather than every day (e.g., weekends only, weekdays only, or
individual days), press the DAY button again as necessary to
cycle through the individual days or combination of days you
want.
NOTE: To choose a combination not shown during cycling
(e.g., Tuesday and Thursday), you must create an individual
event for each of the days you want.
6.
ET1725C ONLY—For a multi-circuit device with loads set
independently, you can choose the load you want the event
to control. The default setting is for both loads, as you can
see on the display. Press the ON/OFF button under a load to
remove the load from the event.
7. When you have set the event correctly, you have two choices:
-Press the ENTER button to set the next ON/OFF event
(up to 28 events).
Press the MODE button to exit.
OPTIONAL – Deleting (Clearing) an Event
Use this procedure to clear the settings programmed for an event.
1.If necessary, press the MODE button repeatedly until the
words SET ON/OFF EVENTS are shown on the display.
2.Press the ENTER button as necessary to cycle through
events that have been set until you see the event you want to
delete.
3.Press the + or – buttons AT THE SAME TIME to display --:---.
4. Press the MODE button to exit.
Battery Maintenance
•Batteries can be easily replaced without removing the Time
Switch mechanism or field wiring.
•Press in and downward (in the direction of the arrows) on the
battery cover.
•It is recommended to replace the batteries every 2-3 years
with 2 AAA industrial grade alkaline cells as part of normal
maintenance on the Time Switch.
•Be sure to observe battery polarity markings when installing
batteries.
• No other battery maintenance is required.
LIMITED ONE-YEAR WARRANTY
If within the warranty period specified, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace it, at its sole option, free of charge.
This warranty is extended to the original household purchaser only and is not transferable. This warranty does not apply to: (a) damage to units caused by accident, dropping or abuse
in handling, acts of God or any negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart or otherwise modified; (c) units not used in accordance
with instructions; (d) damages exceeding the cost of the product; (e) sealed lamps and/or lamp bulbs, LED’s and batteries; (f) the finish on any portion of the product, such as surface
and/or weathering, as this is considered normal wear and tear; (g) transit damage, initial installation costs, removal costs, or reinstallation costs.
INTERMATIC INCORPORATED WILL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS OR
IMPLIED WARRANTIES. ALL IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY AND THE WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE
HEREBY MODIFIED TO EXIST ONLY AS CONTAINED IN THIS LIMITED WARRANTY, AND SHALL BE OF THE SAME DURATION AS THE WARRANTY PERIOD STATED ABOVE. SOME
STATES DO NOT ALLOW LIMITATIONS ON THE DURATION OF AN IMPLIED WARRANTY, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
This warranty service is available by either (a) returning the product to the dealer from whom the unit was purchased or (b) completing a warranty claim online at www.intermatic.com. This warranty is
made by: Intermatic Incorporated, Customer Service 7777 Winn Rd., Spring Grove, Illinois 60081-9698. For warranty service go to: http://www.Intermatic.com or call 815-675-7000.
INTERMATIC INCORPORATED, SPRING GROVE, ILLINOIS 60081-9698
3
158--01995
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
