QC CL-5400
QuietCool Original Classic Line

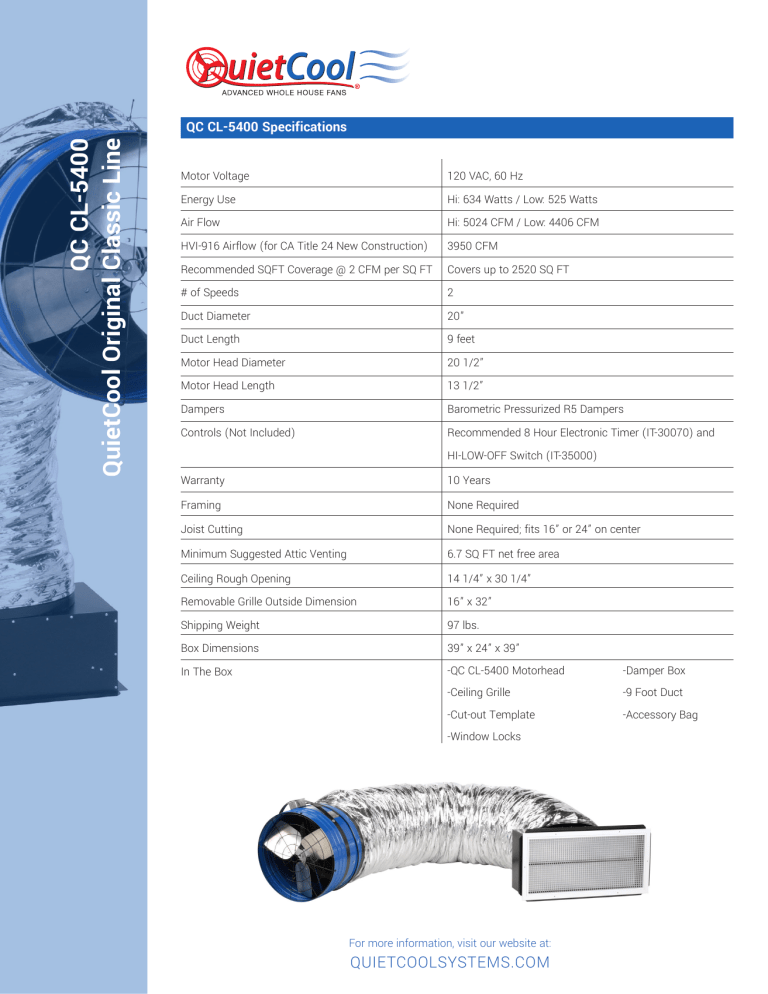

QC CL-5400 Specifications
Motor Voltage
120 VAC, 60 Hz
Energy Use
Hi: 634 Watts / Low: 525 Watts
Air Flow
Hi: 5024 CFM / Low: 4406 CFM
HVI-916 Airflow (for CA Title 24 New Construction)
3950 CFM
Recommended SQFT Coverage @ 2 CFM per SQ FT
Covers up to 2520 SQ FT
# of Speeds
2
Duct Diameter
20”
Duct Length
9 feet
Motor Head Diameter
20 1/2”
Motor Head Length
13 1/2”
Dampers
Barometric Pressurized R5 Dampers
Controls (Not Included)
Recommended 8 Hour Electronic Timer (IT-30070) and
HI-LOW-OFF Switch (IT-35000)
Warranty
10 Years
Framing
None Required
Joist Cutting
None Required; fits 16” or 24” on center
Minimum Suggested Attic Venting
6.7 SQ FT net free area
Ceiling Rough Opening
14 1/4” x 30 1/4”
Removable Grille Outside Dimension
16” x 32”
Shipping Weight
97 lbs.
Box Dimensions
39” x 24” x 39”
In The Box
-QC CL-5400 Motorhead
-Damper Box
-Ceiling Grille
-9 Foot Duct
-Cut-out Template
-Accessory Bag
-Window Locks
For more information, visit our website at:
QUIETCOOLSYSTEMS.COM
