Glacier Bay HD65415W-6127D Specification

Glacier Bay HD65415W-6127D Specification

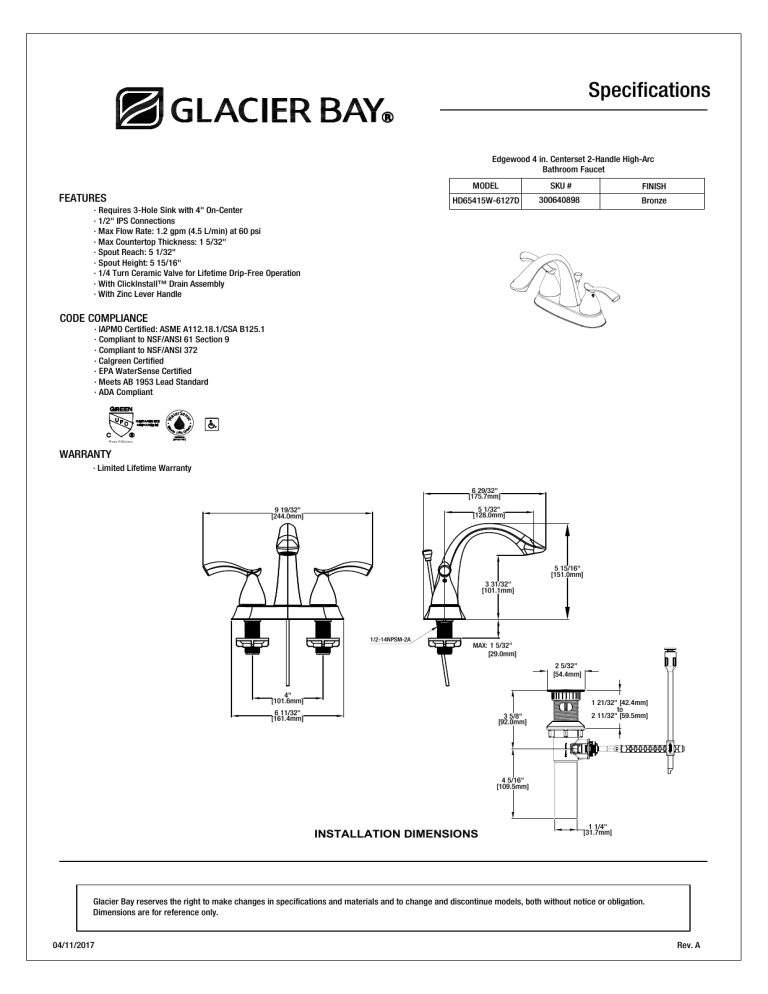

Specifications
Edgewood 4 in. Centerset 2-Handle High-Arc
Bathroom Faucet
FEATURES
· Requires 3-Hole Sink with 4" On-Center
· 1/2" IPS Connections
· Max Flow Rate: 1.2 gpm (4.5 L/min) at 60 psi
· Max Countertop Thickness: 1 5/32"
· Spout Reach: 5 1/32"
· Spout Height: 5 15/16"
· 1/4 Turn Ceramic Valve for Lifetime Drip-Free Operation
· With ClickInstall™ Drain Assembly
· With Zinc Lever Handle
MODEL
SKU #
FINISH
HD65415W-6127D
300640898
Bronze
CODE COMPLIANCE
· IAPMO Certified: ASME A112.18.1/CSA B125.1
· Compliant to NSF/ANSI 61 Section 9
· Compliant to NSF/ANSI 372
· Calgreen Certified
· EPA WaterSense Certified
· Meets AB 1953 Lead Standard
· ADA Compliant
Water Efficiency
WARRANTY
· Limited Lifetime Warranty
6 29/32"
[175.7mm]
5 1/32"
[128.0mm]
9 19/32"
[244.0mm]
5 15/16"
[151.0mm]
3 31/32"
[101.1mm]
1/2-14NPSM-2A
MAX: 1 5/32"
[29.0mm]
2 5/32"
[54.4mm]
4"
[101.6mm]
6 11/32"
[161.4mm]
3 5/8"
[92.0mm]
1 21/32" [42.4mm]
to
2 11/32" [59.5mm]
4 5/16"
[109.5mm]
INSTALLATION DIMENSIONS
1 1/4"
[31.7mm]
Glacier Bay reserves the right to make changes in specifications and materials and to change and discontinue models, both without notice or obligation.
Dimensions are for reference only.
04/11/2017
Rev. A
Specifications
Glacier Bay Edgewood Series Tissue Holder
MODEL
Internet SKU #
FINISH
20064-207D
300162000
Bronze
FEATURES
·
·
·
·
·
9.12"L x 1.88"W x 2.91"H
Coordinates with Edgewood Series Bath Products
Easy Installation
Includes Mounting Hardware and Plastic Anchors
Tools Required for Installation:
-Drill with 1/4" Drill Bit
-Philips Screwdriver
-Small Flat Head Screwdriver
2.91”
[74mm]
1.89”
[47.88mm]
9.12”
[231.6mm]
INSTALLATION DIMENSIONS
Glacier Bay reserves the right to make changes in specifications and materials and to change and discontinue models, both without notice or obligation.
Dimensions are for reference only.
11/23/2017
Rev. A
Specifications
Glacier Bay Edgewood Series Towel Ring
MODEL
Internet SKU #
FINISH
20064-0527D
300162005
Bronze
FEATURES
·
·
·
·
·
9.03"L x 5.95"W x 2.91"H
Coordinates with Edgewood Series Bath Products
Easy Installation
Includes Mounting Hardware and Plastic Anchors
Tools Required for Installation:
-Drill with 1/4" Drill Bit
-Philips Screwdriver
-Small Flat Head Screwdriver
5.95”
[151.25mm]
[74mm]
2.91”
9.03”
[229.53mm]
INSTALLATION DIMENSIONS
Glacier Bay reserves the right to make changes in specifications and materials and to change and discontinue models, both without notice or obligation.
Dimensions are for reference only.
11/23/2017
Rev. A
Specifications
Glacier Bay Edgewood Series 18in. Towel Bar
MODEL
Internet SKU #
FINISH
20064-0127D
300162032
Bronze
FEATURES
·
·
·
·
·
19.7"L x 1.69"W x 2.83"H
Coordinates with Edgewood Series Bath Products
Easy Installation
Includes Mounting Hardware and Plastic Anchors
Tools Required for Installation:
-Drill with 1/4" Drill Bit
-Philips Screwdriver
-Small Flat Head Screwdriver
19.7”
[500.2mm]
2.83”
[72mm]
1.69”
[43mm]
18”
[457.2mm]
INSTALLATION DIMENSIONS
Glacier Bay reserves the right to make changes in specifications and materials and to change and discontinue models, both without notice or obligation.
Dimensions are for reference only.
11/23/2017
Rev. A
