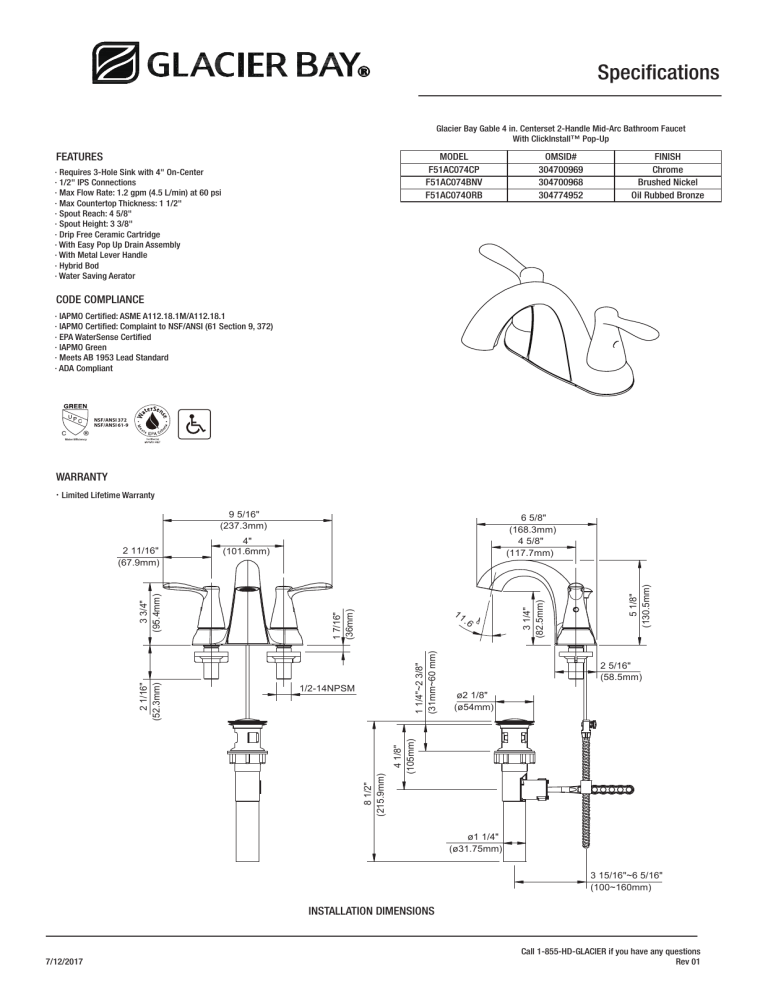

Specifications
Glacier Bay Gable 4 in. Centerset 2-Handle Mid-Arc Bathroom Faucet
With ClickInstallâ„¢ Pop-Up
FEATURES
MODEL
F51AC074CP
F51AC074BNV
F51AC074ORB
· Requires 3-Hole Sink with 4" On-Center
· 1/2" IPS Connections
· Max Flow Rate: 1.2 gpm (4.5 L/min) at 60 psi
· Max Countertop Thickness: 1 1/2"
· Spout Reach: 4 5/8"
· Spout Height: 3 3/8"
· Drip Free Ceramic Cartridge
· With Easy Pop Up Drain Assembly
· With Metal Lever Handle
· Hybrid Bod
· Water Saving Aerator
OMSID#
304700969
304700968
304774952
FINISH
Chrome
Brushed Nickel
Oil Rubbed Bronze
CODE COMPLIANCE
· IAPMO Certified: ASME A112.18.1M/A112.18.1
· IAPMO Certified: Complaint to NSF/ANSI (61 Section 9, 372)
· EPA WaterSense Certified
· IAPMO Green
· Meets AB 1953 Lead Standard
· ADA Compliant
NSF/ANSI 372
NSF/ANSI 61-9
Water Efficiency
WARRANTY
· Limited Lifetime Warranty
9 5/16"
(237.3mm)
1/2-14NPSM
5 1/8"
(130.5mm)
.6
2 5/16"
(58.5mm)
ø2 1/8"
(ø54mm)
4 1/8"
(105mm)
1 1/4"~2 3/8"
(31mm~60 mm)
1 7/16"
(36mm)
11
3 1/4"
(82.5mm)
4"
(101.6mm)
8 1/2"
(215.9mm)
2 1/16"
(52.3mm)
3 3/4"
(95.4mm)
2 11/16"
(67.9mm)
6 5/8"
(168.3mm)
4 5/8"
(117.7mm)
ø1 1/4"
(ø31.75mm)
3 15/16"~6 5/16"
(100~160mm)
INSTALLATION DIMENSIONS
7/12/2017
Call 1-855-HD-GLACIER if you have any questions
Rev 01
