Glacier Bay F5121054CP Specification

Glacier Bay F5121054CP Specification
Specifications
Glacier Bay Constructor 4 in. 2-Handle Low-Arc
Bathroom Faucet
FEATURES
· Requires 3-Hole Sink with 4" On-Center
· 1/2" IPS Connections
· Max Flow Rate: 1.2 gpm (4.5 L/min) at 60 psi
· Max Countertop Thickness: 1 1/4"
· Spout Reach: 4 1/4"
· Spout Height: 1 11/16"
· 1/4 Turn Washerless Valve for Lifetime Drip-free Operation
· With Clickinstallâ„¢ Drain Assembly
· With Zinc Lever Handle
· Water Saving Aerator
MODEL
F5121054CP
STORE SKU#
217 251
OMSID#
301453855
FINISH
Chrome
CODE COMPLIANCE
· IAPMO Certified: ASME A112.18.1M/A112.18.1
· IAPMO Certified: Complaint to NSF/ANSI (61 Section 9, 372)
· EPA WaterSense Certified
· IAPMO Green
· Meets AB 1953 Lead Standard
· ADA Compliant
NSF/ANSI 372
NSF/ANSI 61-9
Water Efficiency
WARRANTY
· Limited Lifetime Warranty

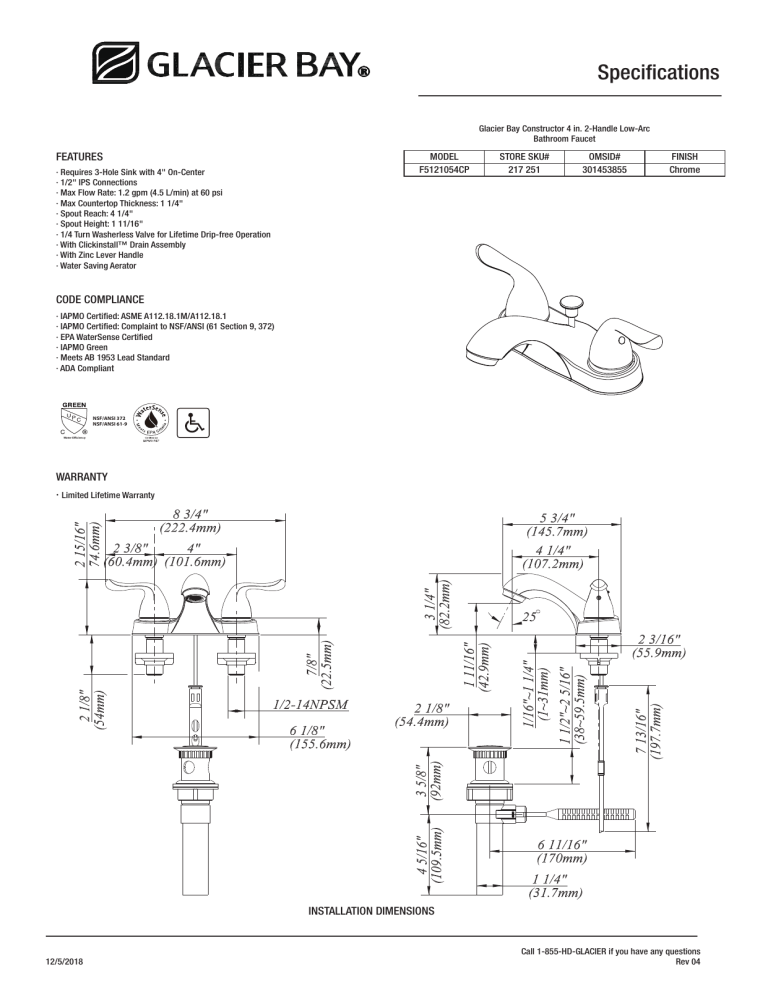

INSTALLATION DIMENSIONS
12/5/2018
Call 1-855-HD-GLACIER if you have any questions
Rev 04
